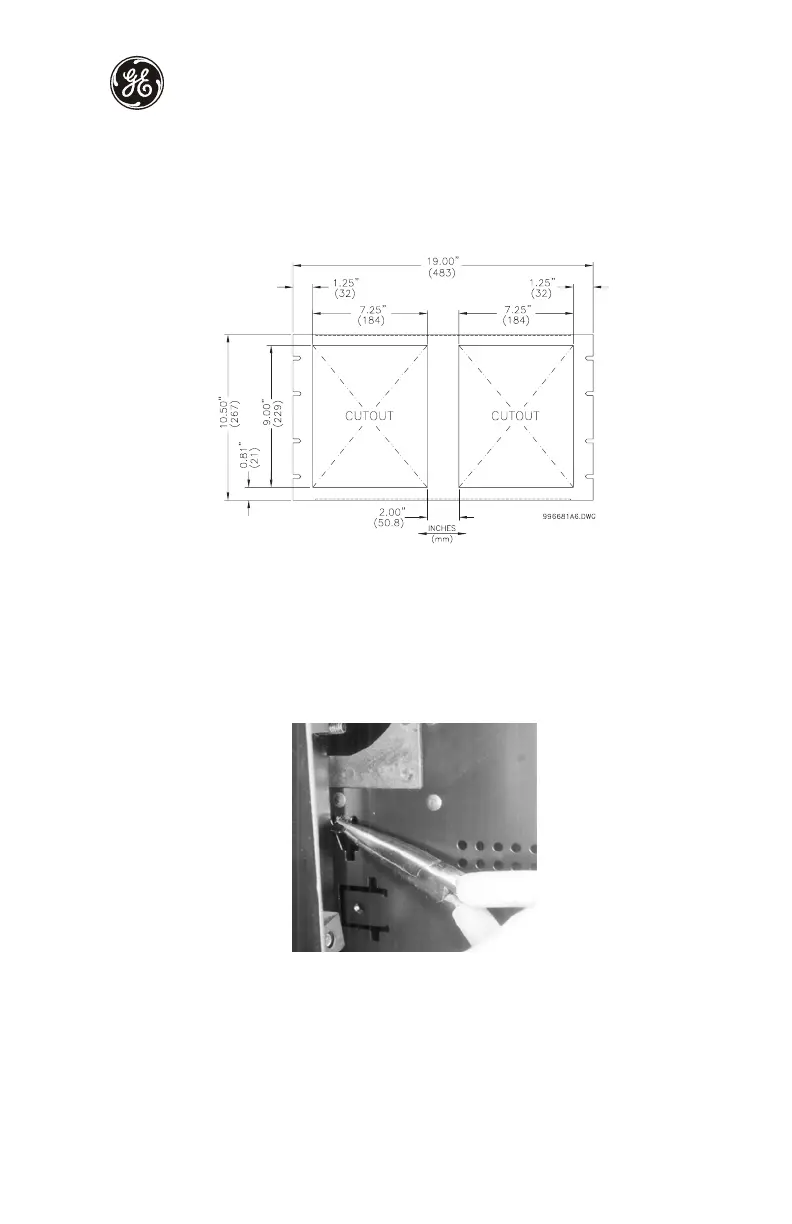

Mechanical installation
750/760 Quick Reference Guide 3
Mounting
The 750/760 can be mounted alone or adjacent to another SR-series relay on a standard
19-inch rack panel. The dimensions of the panel cutout, for both conditions, are shown
below. When planning the location of your panel cutout, ensure provision is made for the
front door to swing open without interference to or from adjacent equipment.
Figure 2: Single and double unit panel cutouts
Before mounting the relay in the supporting panel, remove the unit from the case.
From the front of the panel, slide the empty case into the cutout. To ensure the case's front
bezel sits flush with the panel, apply pressure to the bezel's front while bending the
retaining tabs 90°. These tabs are located on the sides and bottom of the case and appear
as shown in the illustration. After bending all tabs, the case will be securely mounted so that
its relay can be inserted. The relay is now ready for panel wiring.
Figure 3: Mounting Tabs
