Mechanical installation
4 750/760 Quick Reference Guide
Unit withdrawal and insertion
TURN OFF CONTROL POWER BEFORE DRAWING OUT OR RE-INSERTING THE
RELAY TO PREVENT MALOPERATION!
If an attempt is made to install a relay into a non-matching case, the case’s
configuration pin will prevent full insertion. Applying a strong force in this
instance will result in damage to the relay and case.
If using an ethernet connection, refer to Ethernet connection on page 5 before starting the
following procedure.
To remove the unit from the case:
1. Open the door by pulling from the top or bottom of its right side. It will rotate to the left
about its hinges.
2. Press upward on the locking latch, which is located below the handle, and hold in its
raised position. The tip of a small screwdriver may prove helpful in this operation.

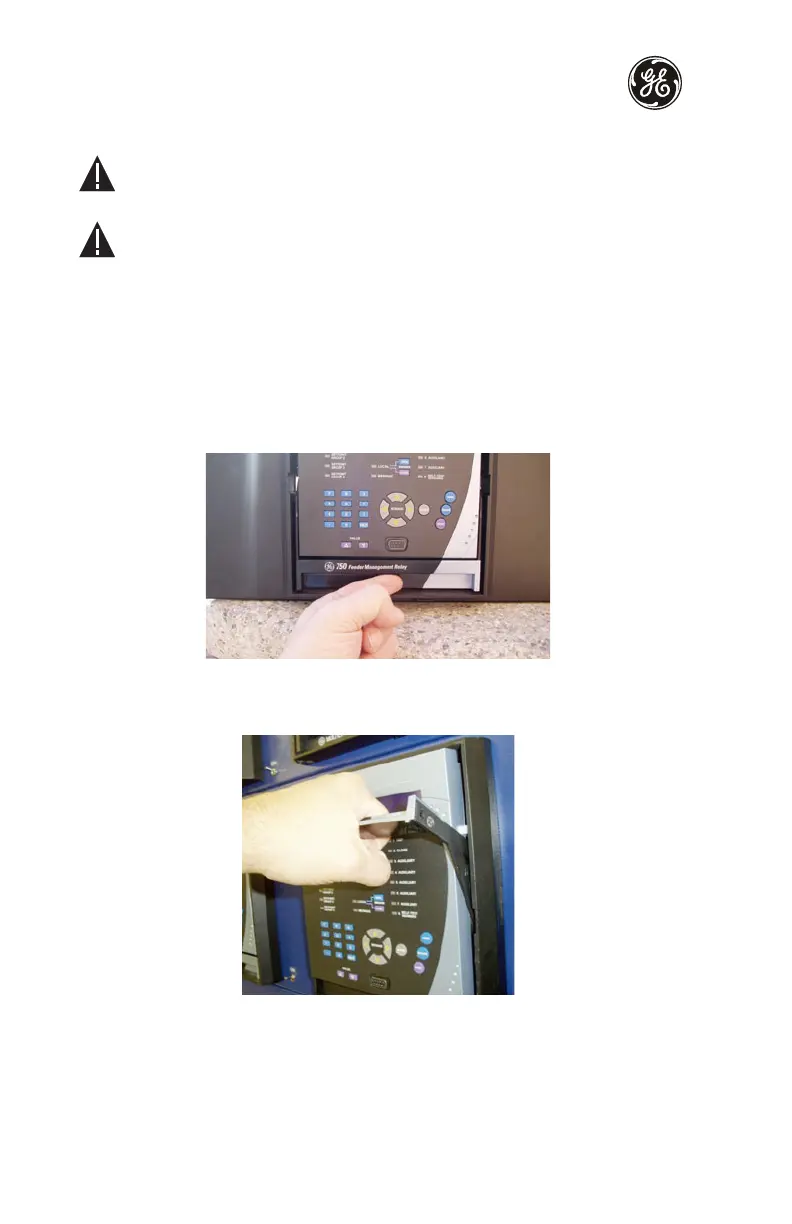

Figure 4: Press latch up and pull handle
3. With the latch raised, pull the center of the handle outward. Once disengaged,
continue rotating the handle up to the stop position.
Figure 5: Rotating handle to stop position
CAUTION
CAUTION
To Next Page
