GE MultiLink ML1200

CHAPTER 9: PORT MIRRORING AND SETUP PORT MIRRORING AND SETUP
MULTILINK ML1200 MANAGED FIELD SWITCH – INSTRUCTION MANUAL 9–11
9.4 Port Mirroring using EnerVista Secure Web Management software
9.4.1 Commands
Monitoring a specific port can be done by port mirroring. Mirroring traffic from one port to
another port allows analysis of the traffic on that port.
To enable port mirroring as well as setting up the ports to be “sniffed”,

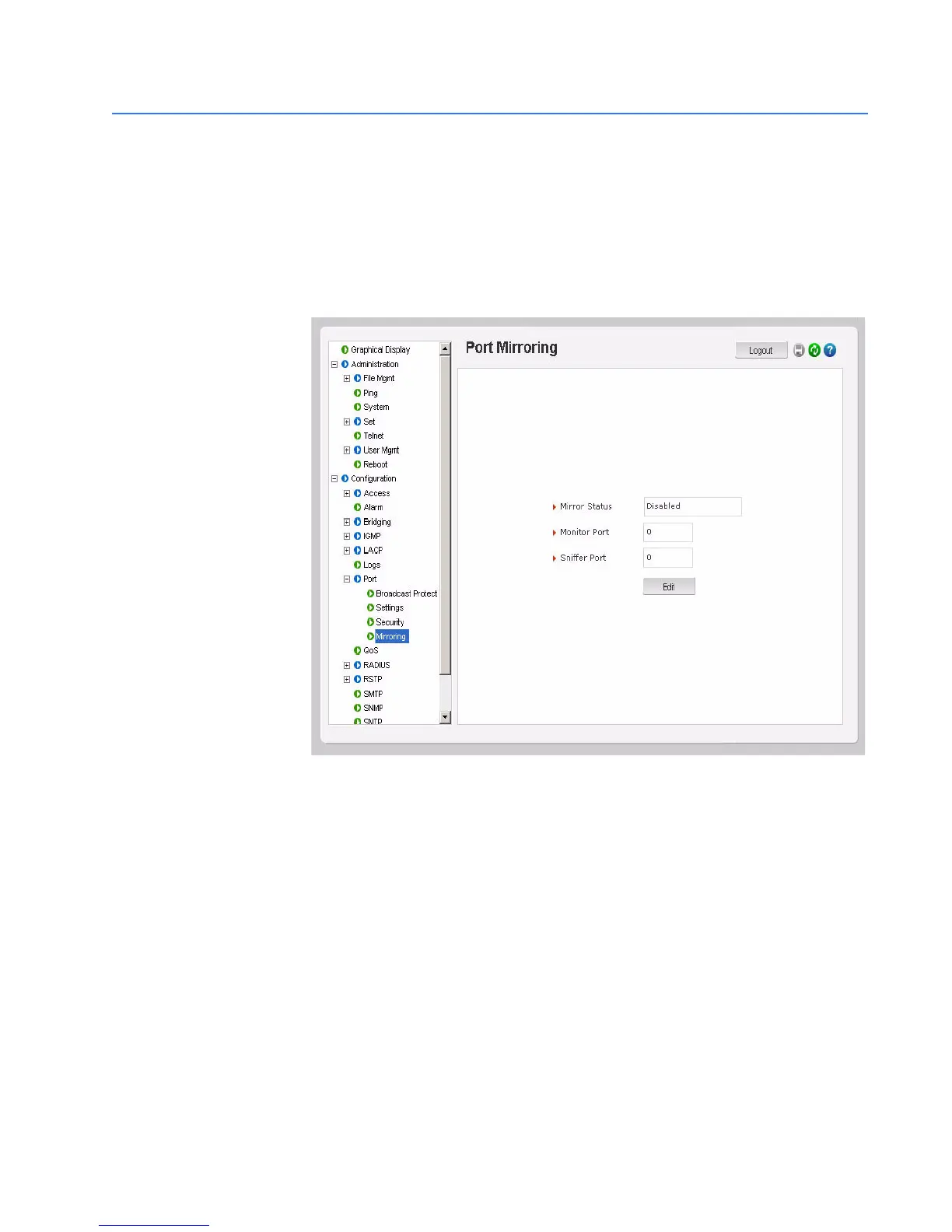

Z Select the Configuration > Port > Mirroring menu item.
Z Set the sniffer port and the port on which the traffic is reflected.
