CHAPTER 3: INSTALLATION INSTALLATION
MULTILINK ML1200 MANAGED FIELD SWITCH – INSTRUCTION MANUAL 3–9

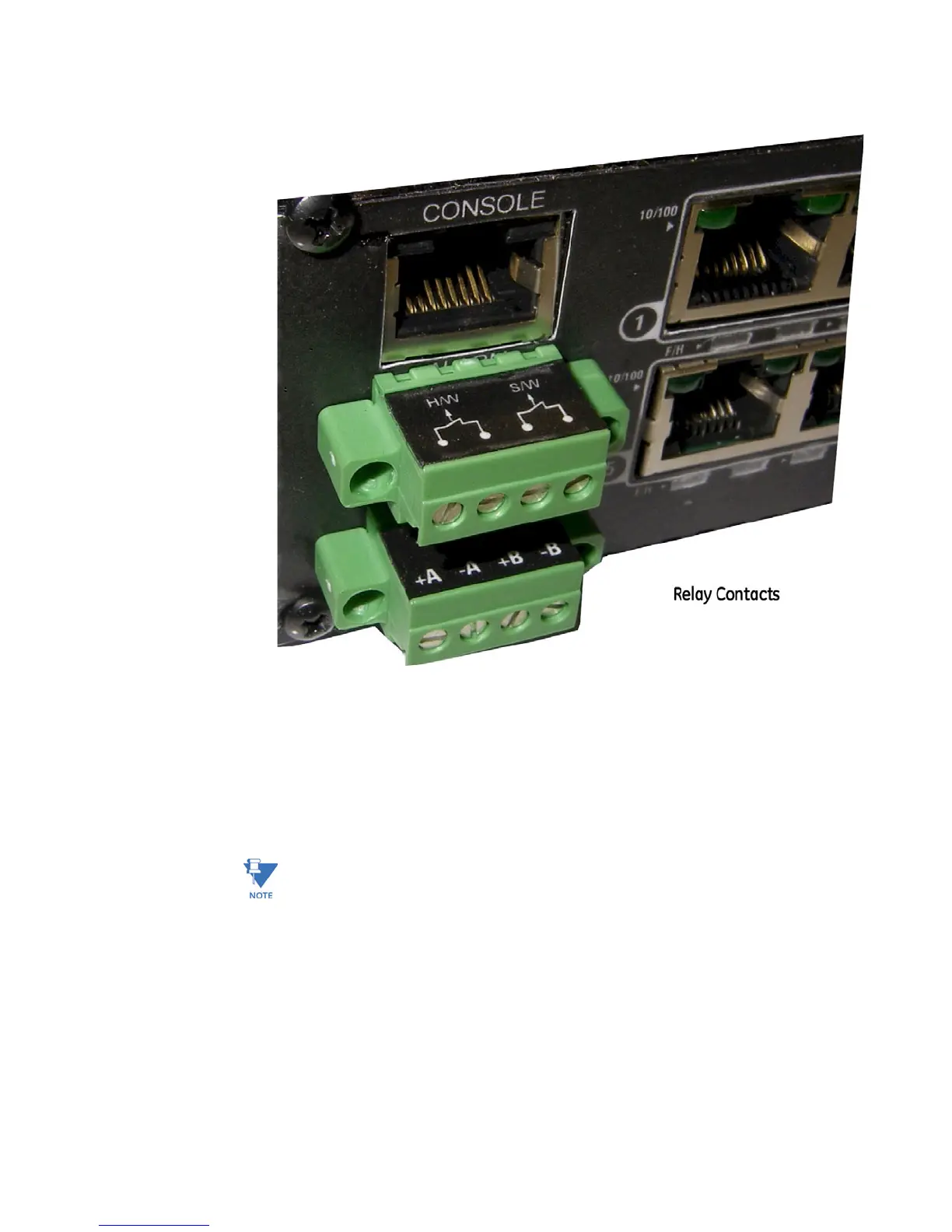

The Alarm Contacts are on the front left area (next to the DC power source) of the Multilink
ML1200 unit and are green in color as shown in the picture.
3.4.3 ML1200 Port Module (PM) Installation
Multilink ML1200 Switches are normally received from the factory with all required Port
Modules installed.
Note
There may be situations where the PMs need to be added or replaced. Any change in
configuration of the modules can be done only via factory installation. There is no field
upgrade option for ML1200 port modules. Please contact Tech Support for changing
modules.
The ML1200 port modules are not compatible with or inter-changeable with the other
Multilink Family Switches’ PMs, which use larger (typically 8-port) modules.
