10–20 MULTILINK ML1200 MANAGED FIELD SWITCH – INSTRUCTION MANUAL
VLAN CHAPTER 10: VLAN
The next step is to define the VLANs needed. To do that,

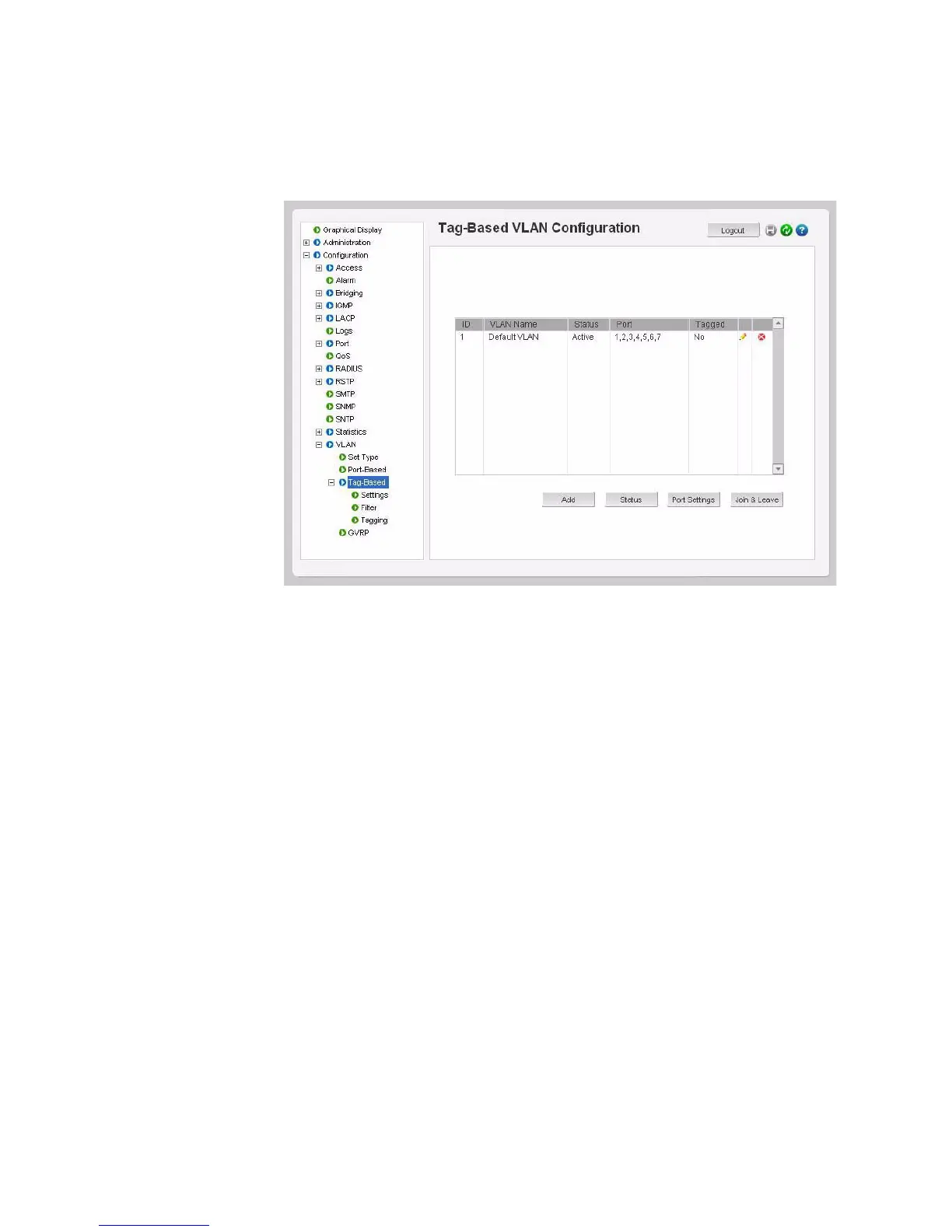

Z Click On Configuration >vlan >tag-based Menu.
Z Click on the Add button..
Z Now add the necessary VLANs.
In the example below, add the VLANs in the following manner
•VLAN 1, All ports - default VLAN
• VLAN 10, Engineering VLAN - ports 2, 3, 4
• VLAN 20, Support VLAN - ports 4, 5 (note that port 4 belongs to
VLAN 10, 20)
To Next Page
