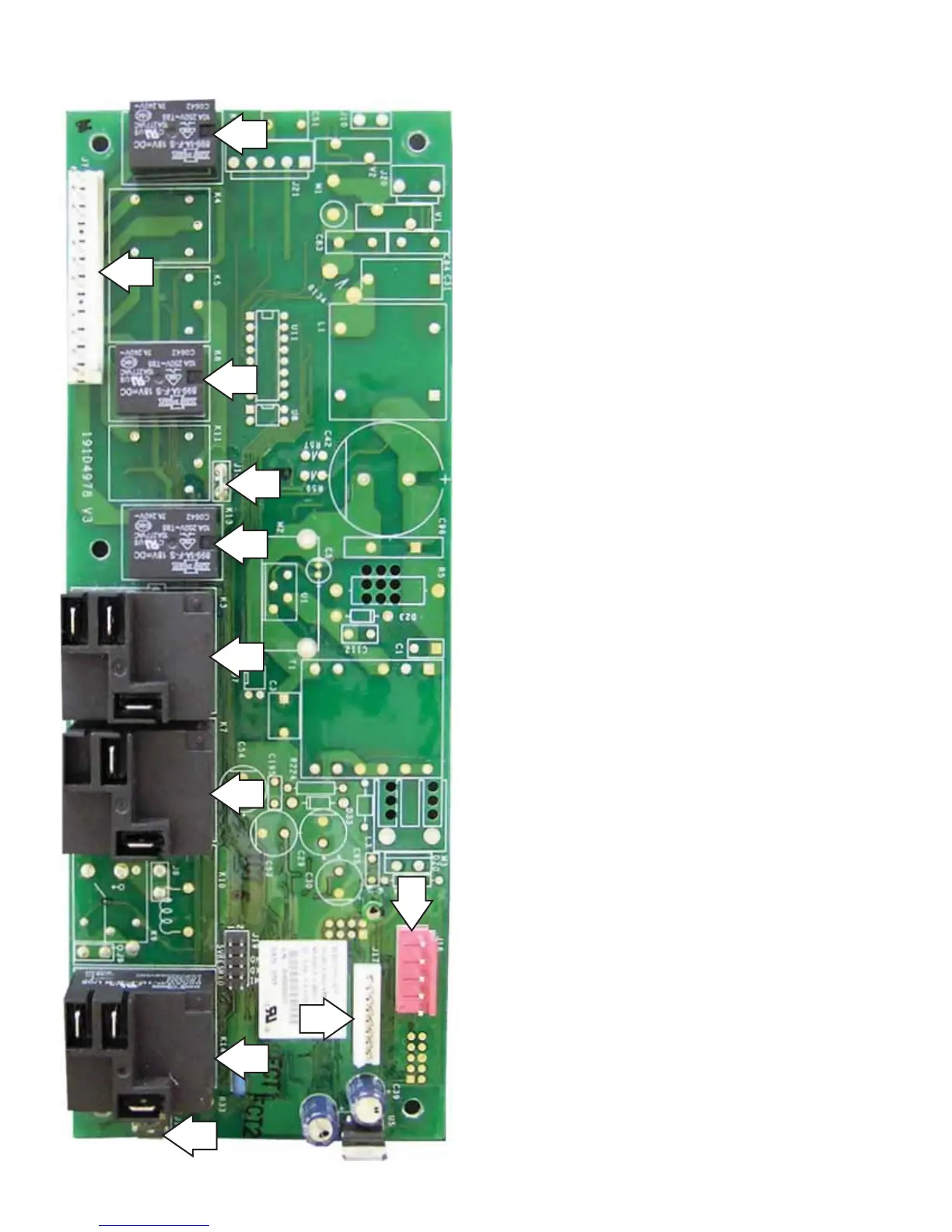

Upper Oven Control Board
J16
J14
J17
J7
K1
K8
K13
K3
K7
K14
J11
J7 - Lock Motor, Outer Broil Element, Oven Lights
J11 - Neutral
J14 - L1 supply to K3 and J7
J16 - Oven Lock Switch, Oven Unlock Switch
J17 - Communication Cable
K1 - Oven Lights
K3 - Broil Relay
K7 - Bake Relay
K8 - Broil Boost Relay
K13 - Door Lock Relay
K14 - Double Line Break Relay
