– 41 –

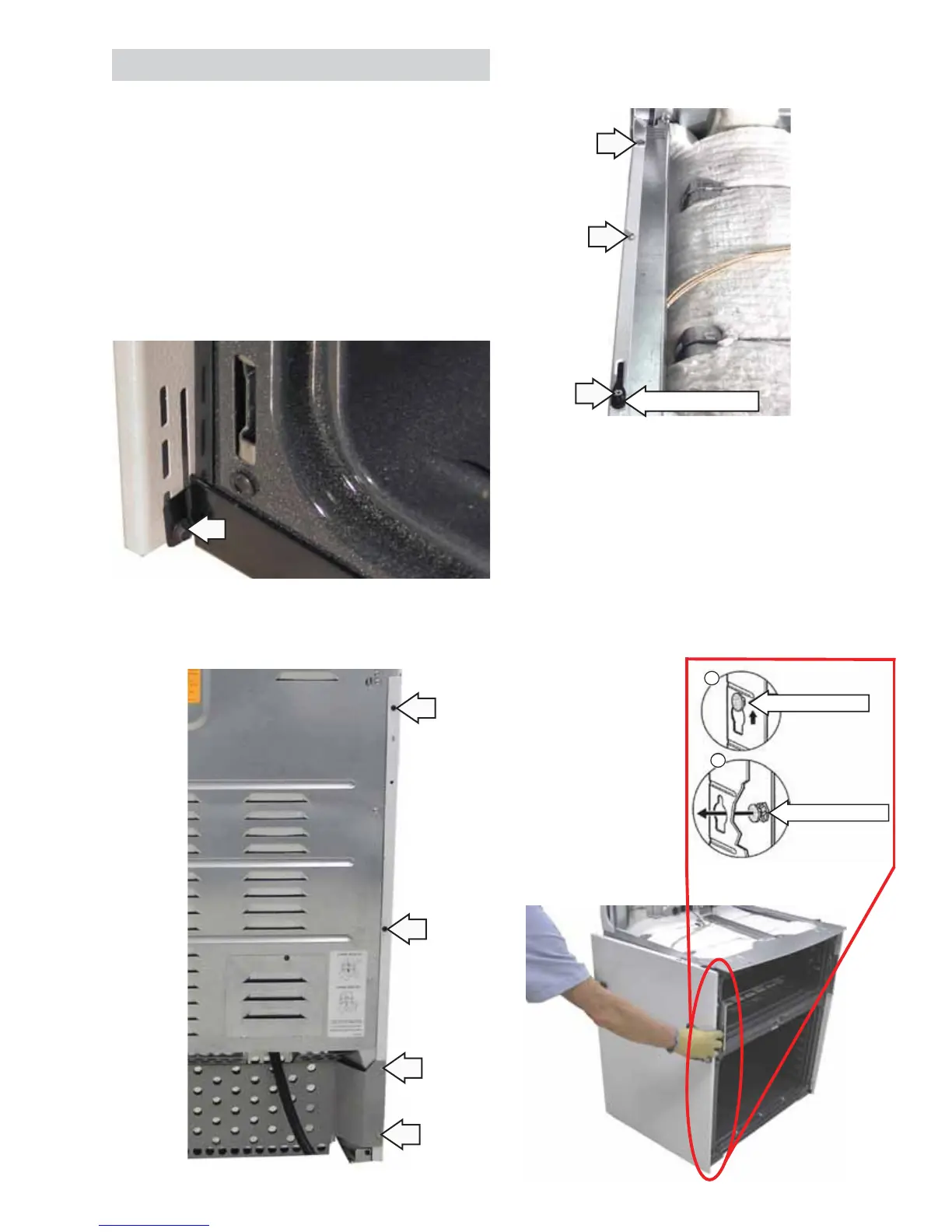

Side Panel Removal
The procedures to remove both the left and right
side panels are identical.
Disconnect power to the range.1.
Remove the range from its installation.2.
Raise and support the cooktop or remove the 3.
cooktop. (See Cooktop Assembly.)
Remove the hidden screw near the front leveling 4.
leg.
Remove the four screws from the rear of the 5.
side panel.
Remove the three top screws and maintop strike 6.
from the top of the side panel.
Maintop Strike
Note: The front of the panel is held to the range
frame by 3 plastic grommets that engage 3 keyhole
slots placed along the inside front fl ange of the
panel.
Grasp the front and rear portion of the side 7.
panel. Lift the side panel up and pull towards
you then disengage the three rubber grommets.
Plastic Grommet
Plastic Grommet
Grommet
Engaged (A)
Grommet
Disengaged (B)
A
B
