GE Profile PB975 - Oven Sensor and Door Switch Test

– 70 –
Oven Sensor and Door Switch Test
Note: See Lock Assembly for door switch function explanation.
Remove power from oven. 1.
Make resistance measurement from side of sensor and lock switch connector with exposed terminals.2.
The resistance measurements are made on the ERC with the control panel in the service position. (See 3.
Control Panel.) Test at connector J5 for the sensors and J16 for the lock switches. If abnormal reading is
observed, wiggle leads at disconnect block. If any variation, replace.
COMPONENT TEST
Circuit Terminals Ohms
Upper Oven Sensor 3 to 4 1100 W @ Rm. Temp.
1654 W @ 350°F
2650 W @ Clean Temp
Lower Oven Sensor 1 to 2
Door Latched 1 to 3
1 to 4
0 W
Open
Door Unlatched 1 to 4
1 to 3
0 W
Open

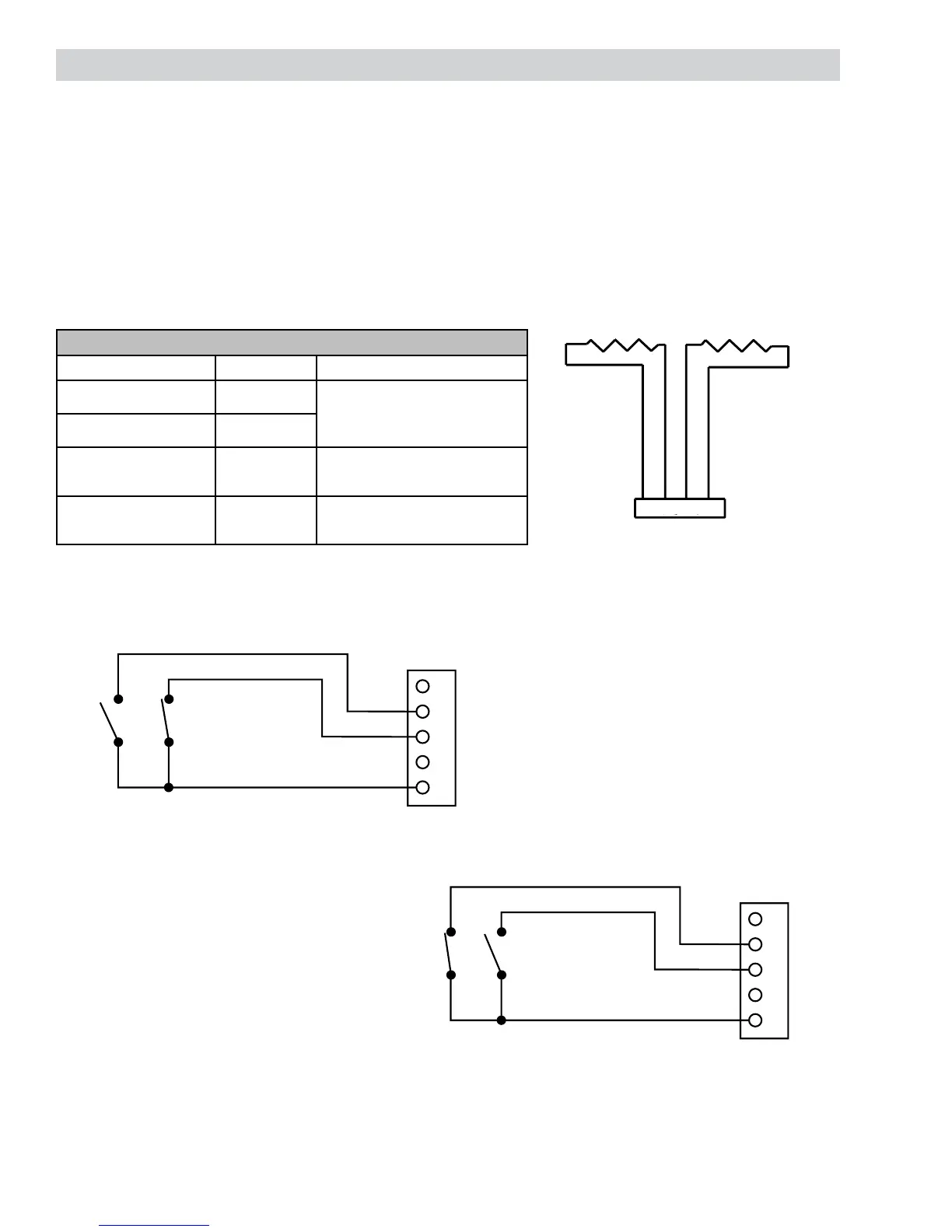

Door Locked
Lock Assembly Wire Harness
#6
0
:





-0$,&%
J16
Lock Assembly Wire Harness
#6
0
:





6/-0$,&%
J16
Door Unlocked
1 2 3 4
Lower Oven Sensor Upper Oven Sensor
J5
