– 44 –

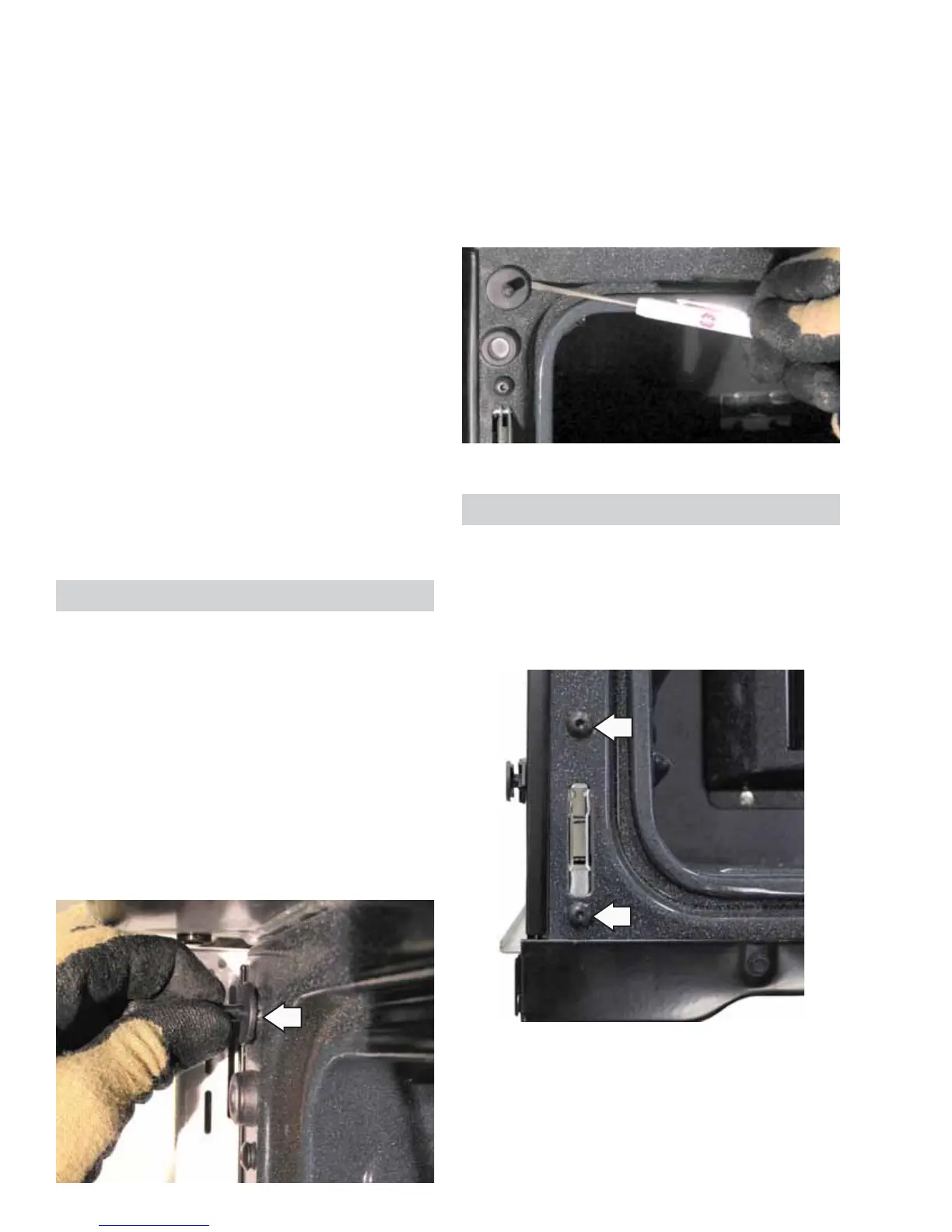

Door Switch
Each oven utilizes a door switch located on the left
side of the door frame that is accessible from the
front. Each oven door switch monitors the position
of the oven door and provides this information to
the oven's control board. The procedure to remove
each door switch is identical.
To remove the door switch:
Disconnect power to the range.1.
Pull the switch forward to locate the ends of two 2.
spring clips (one on each side).
Insert a small fl at-blade screwdriver on one 3.
of two spring clips and depress the spring clip
while pulling the switch from the door frame.
Insert the small fl at-blade screwdriver on the 4.
other spring clip, depress the spring clip, and
continue pulling the switch from the door frame.
Disconnect the door switch wire harness.5.
To replace a light bulb, use a new 130-volt halogen
bulb, not to exceed 50 watts.
Note:
Higher wattage bulbs will damage your oven.•
Using gloves or a dry cloth, remove the bulb •
from its packaging. Do not touch the bulb with
bare fi ngers. Oil from bare fi ngers may cause
hot spots on the glass surface and lead to
premature failure of the bulb. If you do touch the
glass, clean it with alcohol prior to installation.
Push the bulb straight into the receptacle all the 1.
way.
Place the tabs of the glass cover into the 2.
grooves of the socket. Turn the glass cover
clockwise 1/4 turn.
Note: For improved lighting inside the oven, clean
the glass cover frequently using a wet cloth. This
should be done when the oven is completely cool.
Reconnect electrical power to the oven.3.
Lower Oven Door Hinge Receiver
Each lower oven door hinge receiver is attached to
the frame with two T-15 Torx screws. To replace it
requires removing the side access panel (See Side
Panel Removal.), then lifting the insulation from the
outside of the oven.
Note: Upon reassembly, ensure displaced insulation
around oven and components is returned to its
original position.
