Oven Components

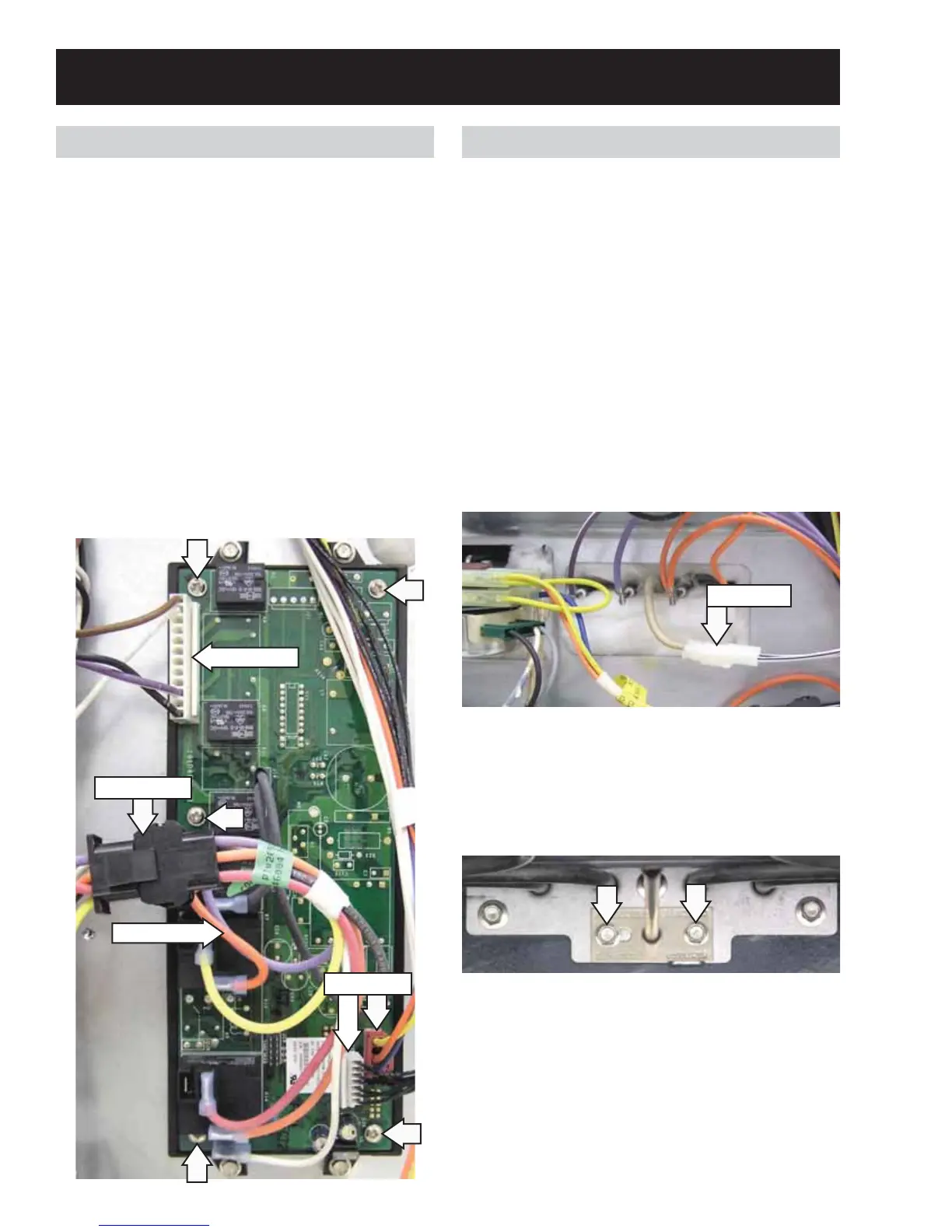

Upper Oven Control Board
To remove the upper oven control board:
Remove the rear cover. (See 1. Rear Cover Removal.)
Note: In the following step, do not remove the relay
jumper wire (orange wire) or the wire harness wiring
from the control board.
Disconnect the control board wire harness and 2.
remove the connectors at board locations J7,
J16, and J17 .
Remove the 5 Phillips-head screws that attach 3.
the board to the frame.
Transfer the relay jumper wire and the control 4.
board wire harness to the replacement board.
Disconnect
Wire Harness
Jumper Wire
Disconnect
Oven Temperature Sensor
The oven temperature sensor has a resistance of:
1091 • Ω at room temperature
1654 • Ω at 350°F
2634 • Ω at 865°F (Clean temperature)
The oven temperature sensor has a resistance
change rate of 2 Ω per °F.
To remove the oven temperature sensor:
Disconnect power.1.
Remove rear cover. (See2. Rear Cover Removal.)
Disconnect the sensor wire harness.3.
Carefully pull the sensor and sensor wiring 6.
harness from the oven liner.
Remove oven racks. 4.
Remove the two ¼-in. hex-head screws that 5.
attach the sensor to the broiler element bracket.
Disconnect
(Continued next page)
