– 52 –
Vent Tube/Smoke Eliminator
Each oven is equipped with an oven vent tube
and a smoke eliminator. The vent tube and smoke
eliminator for the upper oven are located on the
top left rear corner of the oven cavity above the
broiler element. The vent tube and smoke eliminator
for the lower oven are located at the right rear top
corner of the oven cavity. Air vented from the oven
cavity will pass through the catalyst, then enter the
vent tube to be exhausted under the bottom of the
control panel.

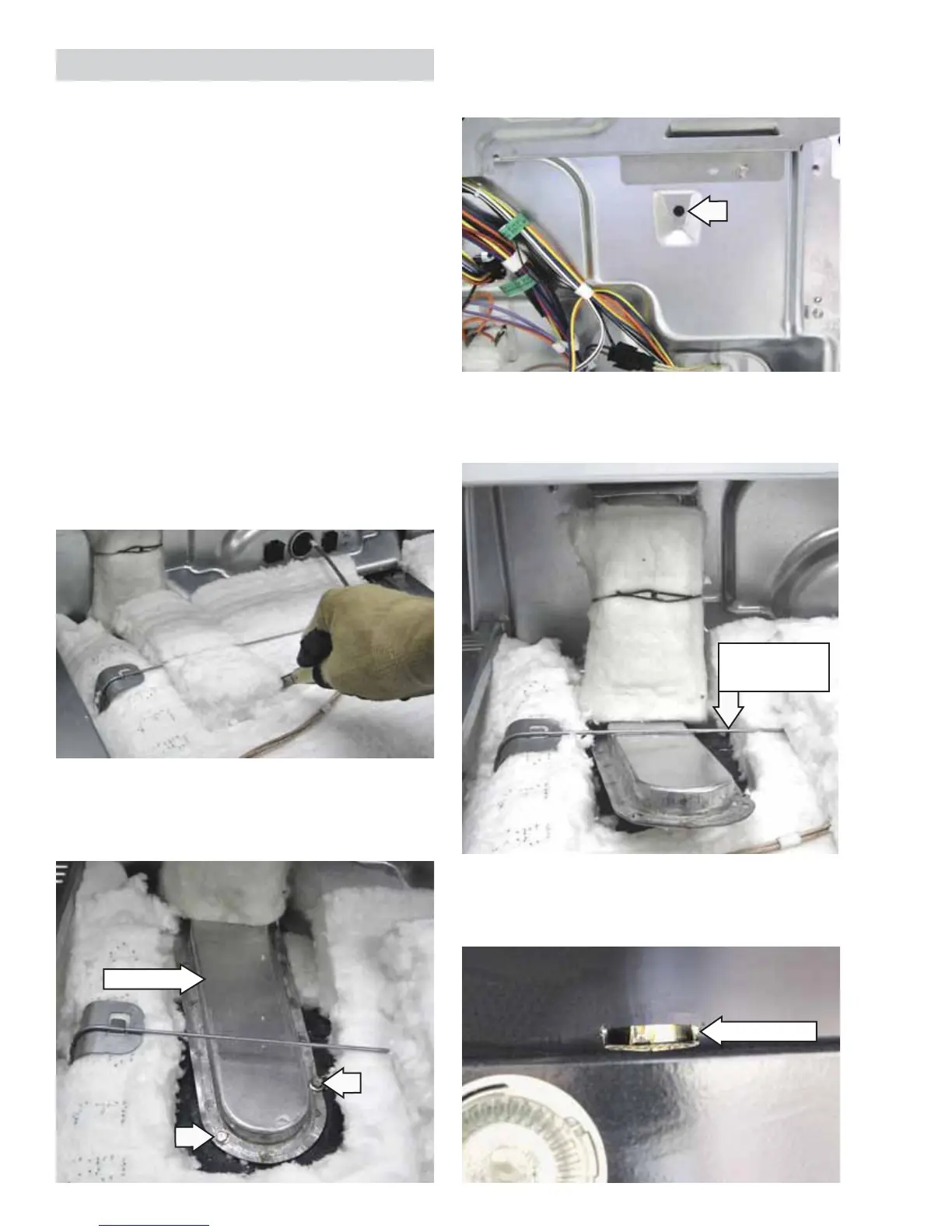

To remove the upper oven vent tube and smoke
eliminator:
Remove the upper oven broil element. (See 1. Broil
Element.)
Remove the cooktop. (See 2. Cooktop Assembly.)
Carefully cut, then remove the insulation that 3.
covers the upper oven vent tube.
Remove the 2 hex-head screws that attach the 4.
vent tube to the top of the oven liner.
Vent Tube
Remove the ¼-in. hex-head screw that holds the 5.
vent tube to the rear of the range.
Grasp and carefully remove the vent tube from 6.
under the insulation retaining wire.
Compress and push up the 4 tabs that lock the 7.
smoke eliminator to the top of the oven cavity.
Tabs (1 of 4)
Wire Insulation
Retainer
(Continued next page)
