ā 63 ā

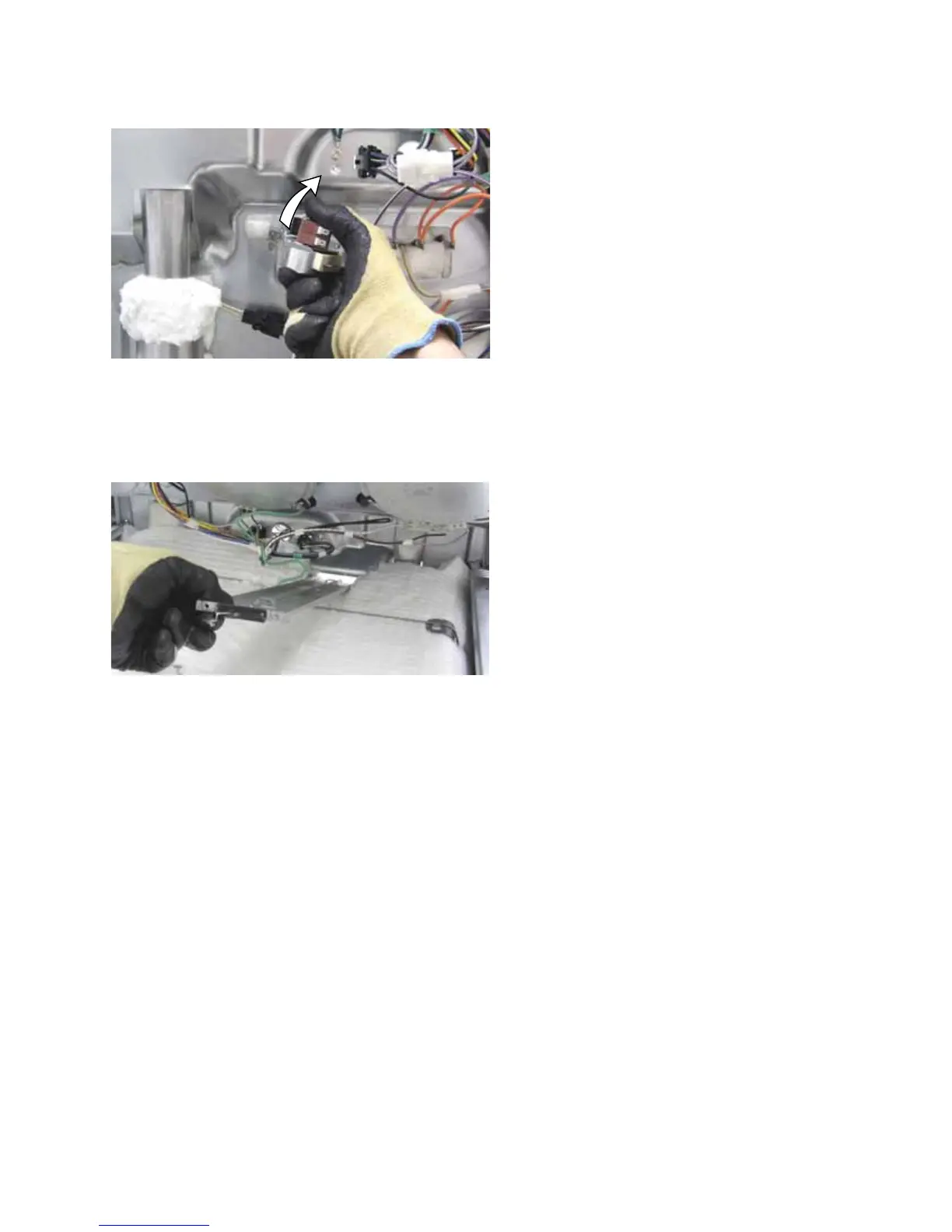

Grasp the rear of the lock assembly. Lift and 9.
rotate it approximately 40 degrees clockwise
and pull it out approximately 1 inch.
Lift the front of the mounting plate and guide it 10.
through the opening located under the rear of
the cooktop.
Lower Oven Door Lock Assembly
Note: If only the lock motor and switch assembly
and/or cam have failed, it may not be necessary to
remove the door lock assembly from the range. It
is possible to transfer these parts from a new door
lock assembly. Verify proper operation of the lock
assembly after transferring these parts.
The lower oven door lock assembly is located
between the insulation blankets of each oven liner.
It may be necessary to remove the upper oven liner
to replace the lower oven door lock assembly. If
necessary, remove the upper oven liner (See
Upper
Oven Liner.), then follow steps 3 and 5 through 9. (See
To remove the upper oven door lock assembly.)
