IRECTION GB091046, REVISION 2 VIVID E9 / VIVID E7 BT’13 SERVICE MANUAL
Chapter 3 - System setup 3 - 43
3-8-5 DHCP setup (cont’d)
To turn DHCP on:
• Select: Obtain an IP address automatically.
To turn DHCP off:
1.) Select: Use the following IP address:
2.) Enter the:
- IP address
- Subnet mask
- Default gateway
To save your new settings and close the open windows:
1.) Select OK to save the setting and close the Internet Protocol (TCP/IP) Properties dialog.
2.) Select OK to close (and save) the Local Area Connection Properties dialog.
3.) Select Close to close the Local Area Connection Status dialog.
4.) Select the “x” in the upper right corner to close the Network Connections window.

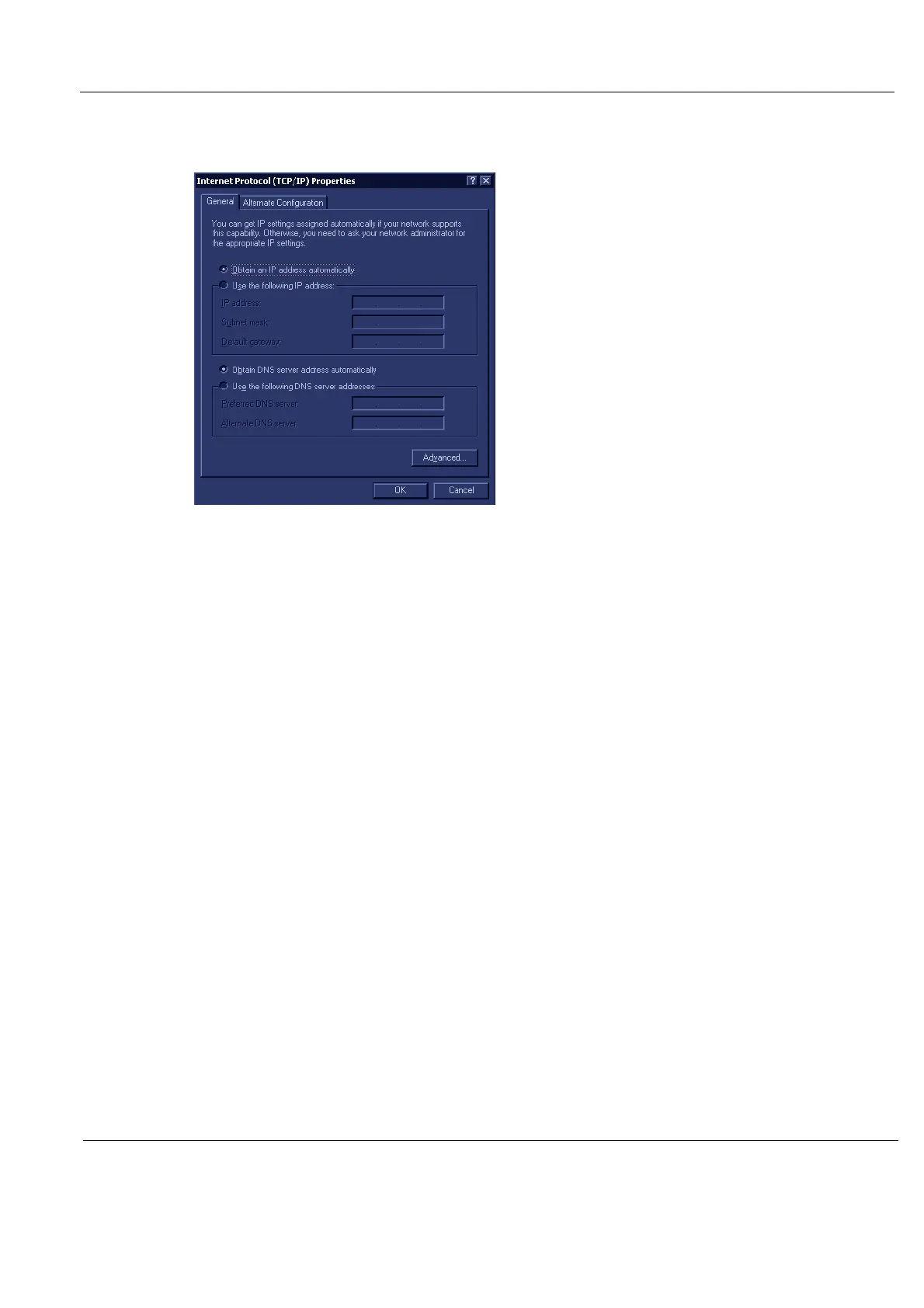

Figure 3-29 Internet Protocol (TCP/IP) Properties
