GE RAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

5-30 Section 5-5 - Internal I/O

Section 5-5

Internal I/O

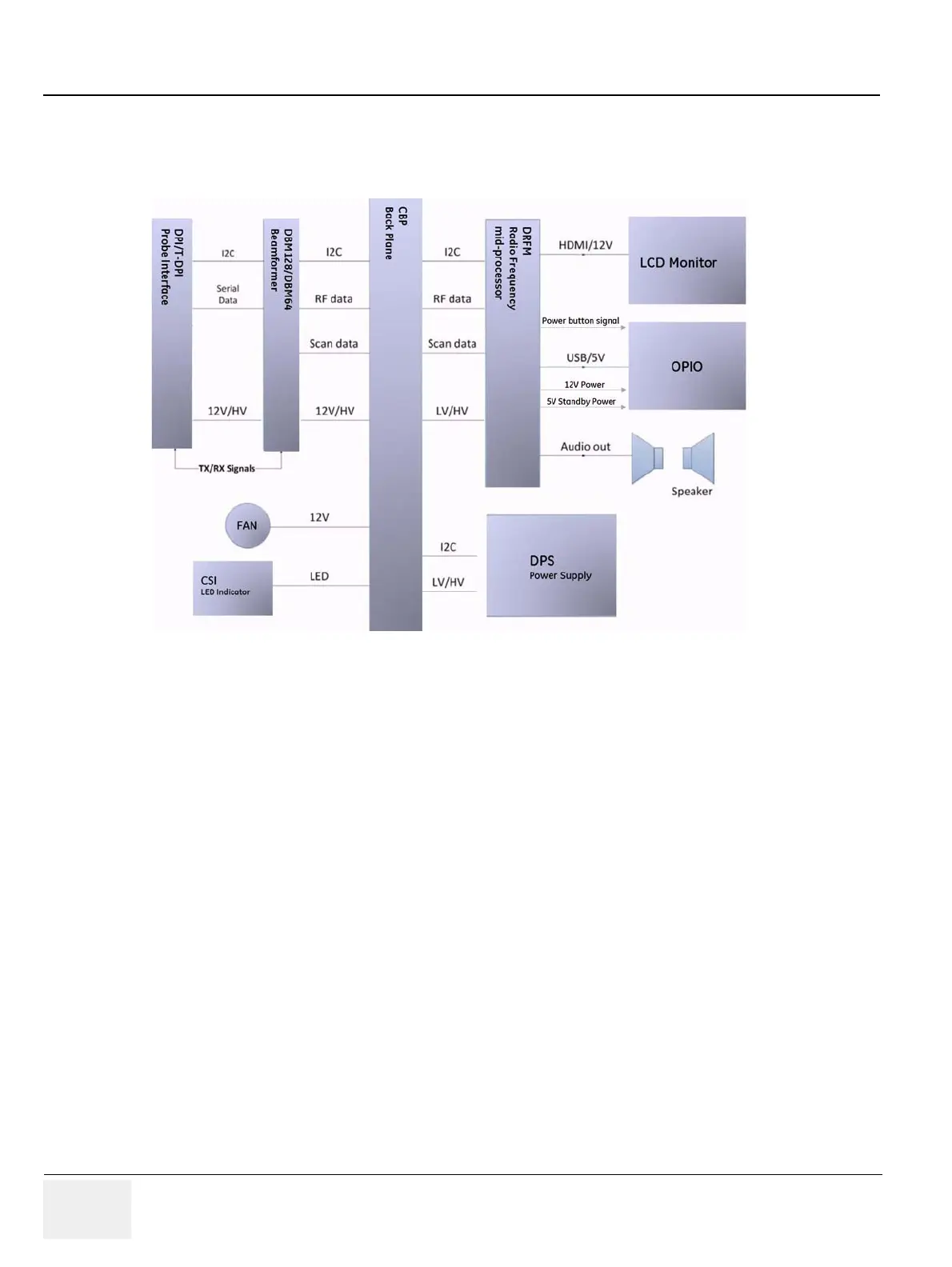

Figure 5-12 Voluson™ P8 / Voluson™ P6: Internal I/O
