GE DRAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-89

5.) Lift up the OPIO and disconnect Power, OPIO, 2 USB cables from the OPIO HUB PWA. Refer to

the figure below.

6.) Cut the CABLE TIE by nipper.

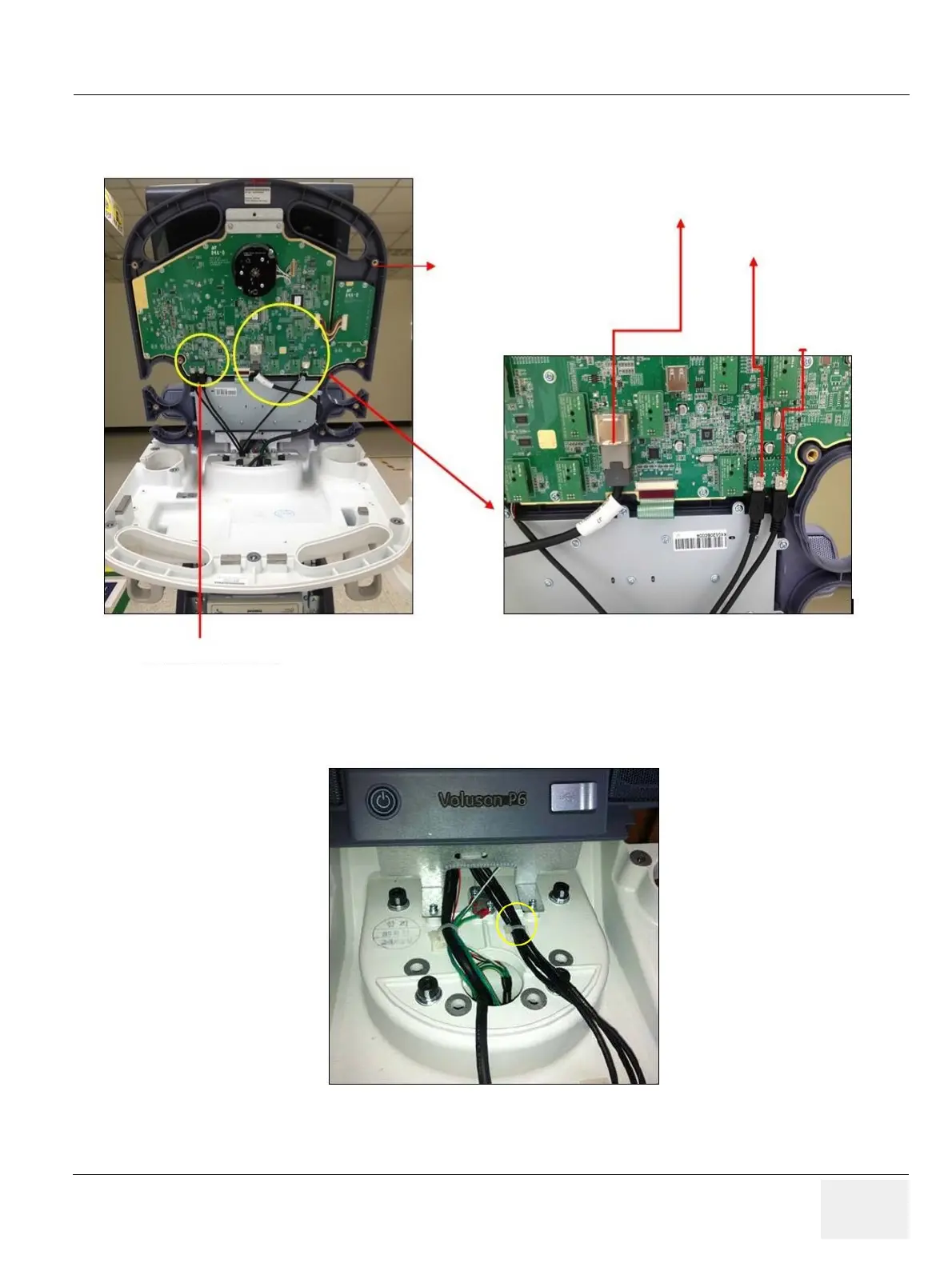

Figure 8-133 Disconnecting Power, OPIO, 2 USB cables

Figure 8-134 Cutting the CABLE TIE by nipper

Insert power cable

KEYBOARD ASSY

Host interface 10 pin connector

(OPIO cable)

USB connector-1

USB connector -2
