8-176 Section 8-56 - Replacement of CWD piggy

2.) Remove REAR CABINET BEZEL ASSY BT16

3.) Unscrew 7 screws and disassemble the REAR EMI COVER.

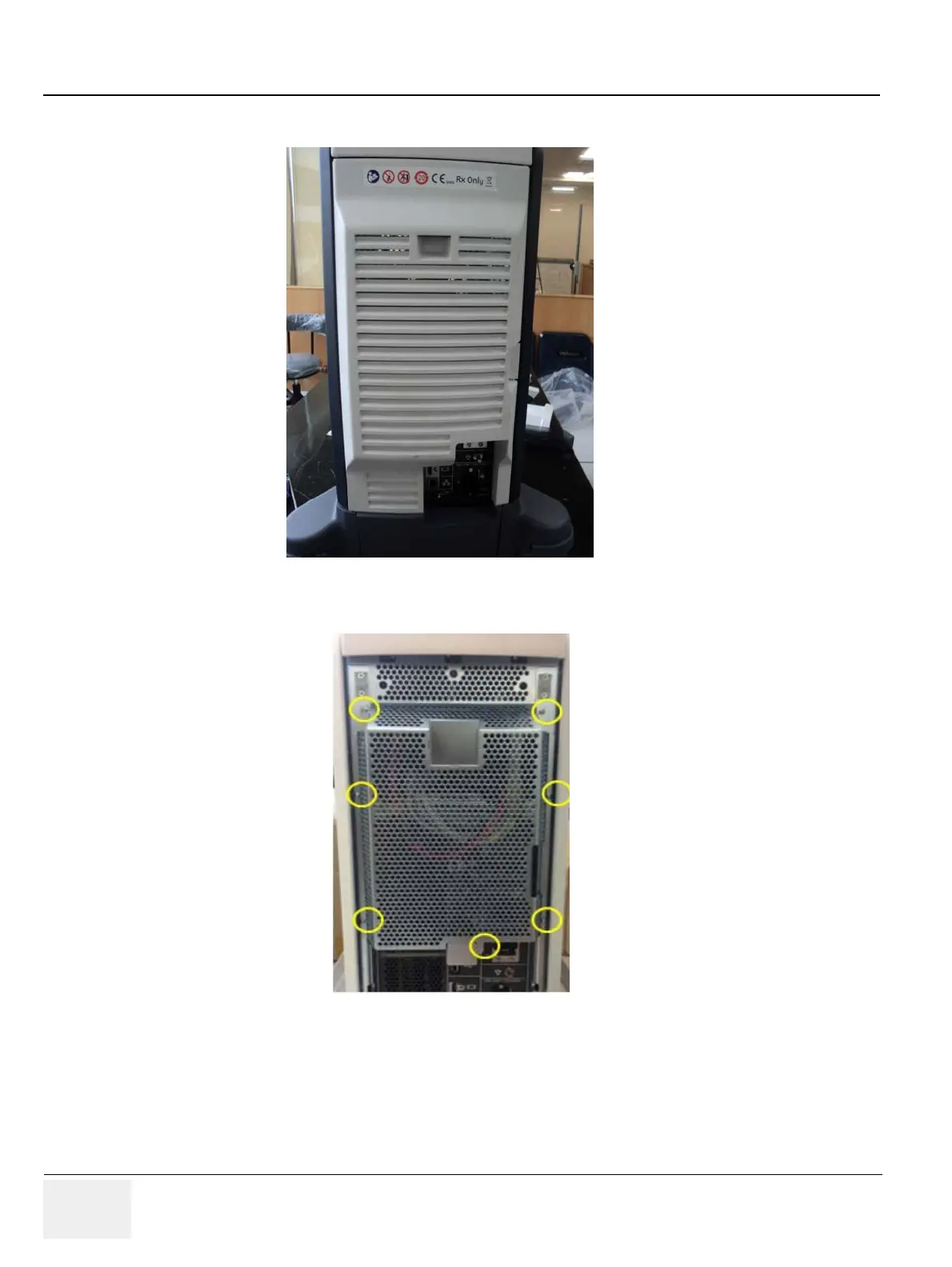

Figure 8-248 REAR CABINET BEZEL ASSY BT16

Figure 8-249 Unscrewing 7 fastners and disassembling the REAR EMI COVER
