10.5.1 Removing the valve disk
Graphic POS. 31 AND 9 are missing! Please add in new graphic revision |
ZINDEL AG 4.4.19

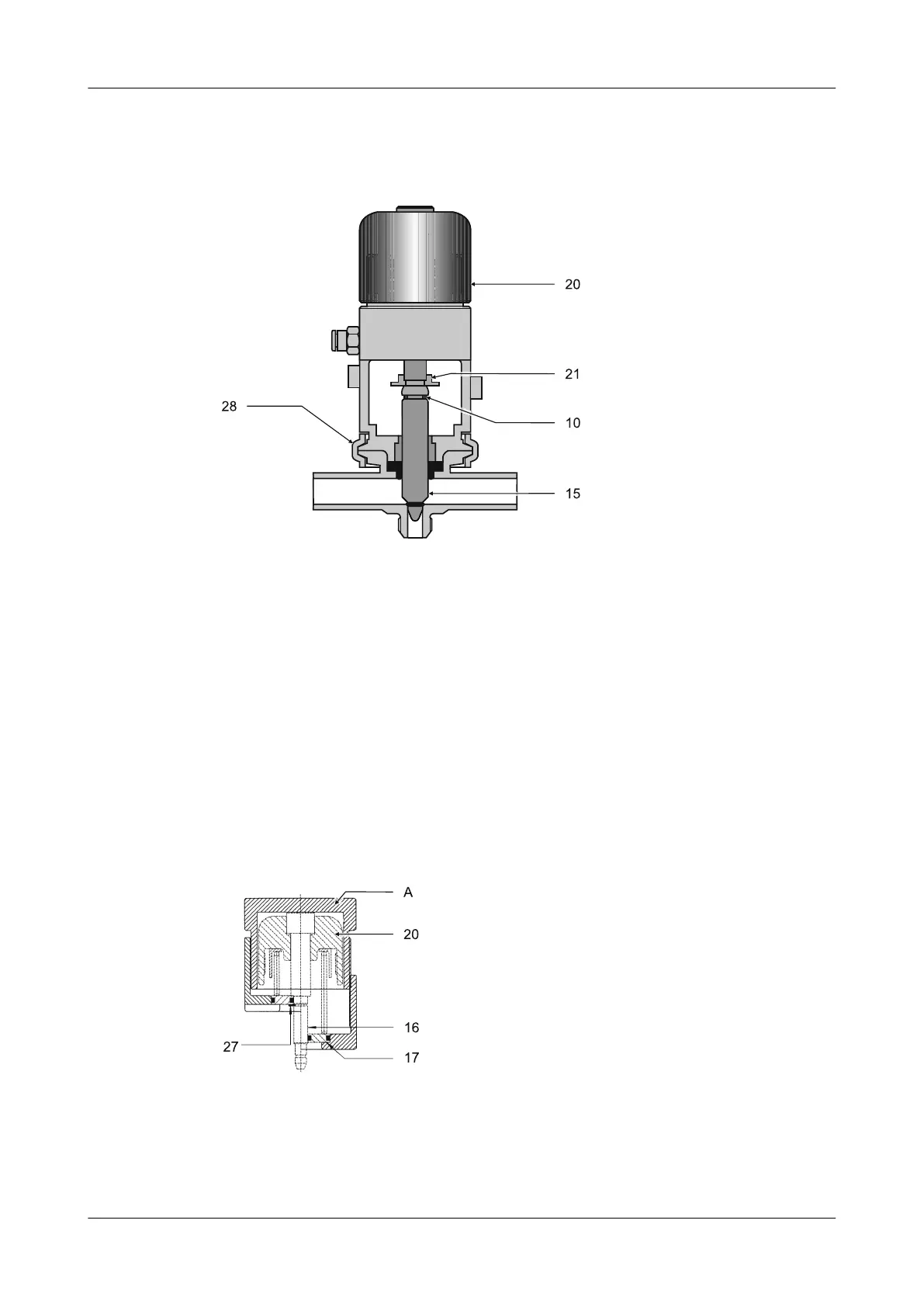

Fig.6: Removing the Valve Disk
Carry out the following steps:
1.
Turn the handwheel (20) counterclockwise.
– The valve disk (15) is raised.
2.
Remove the clamps (28) between the housing (31) and the lantern (9).
3.
Withdraw the valve insert from the housing (31).
4.
Pull off the square ring (10).
5.
Pull off the valve disk (15) and the disk (21).
®
Valve disk has been removed.
10.5.2 Removing the handwheel
Fig.7: Removing the Handwheel
Carry out the following steps:
Maintenance
Disassembling the Valve
430BAL008583EN_1
30 12.08.2019
