MC-MP-SBD O wner’s Manual
15
M ain Top Side Control (K-8)
Installation
Location
The control keypad may be installed either with brackets or
adhesive, directly on the spa (or very close to it) within easy
reach of the user.
If the keypad is physically damaged, the spa must not be used
and the keypad should be replaced immediately.

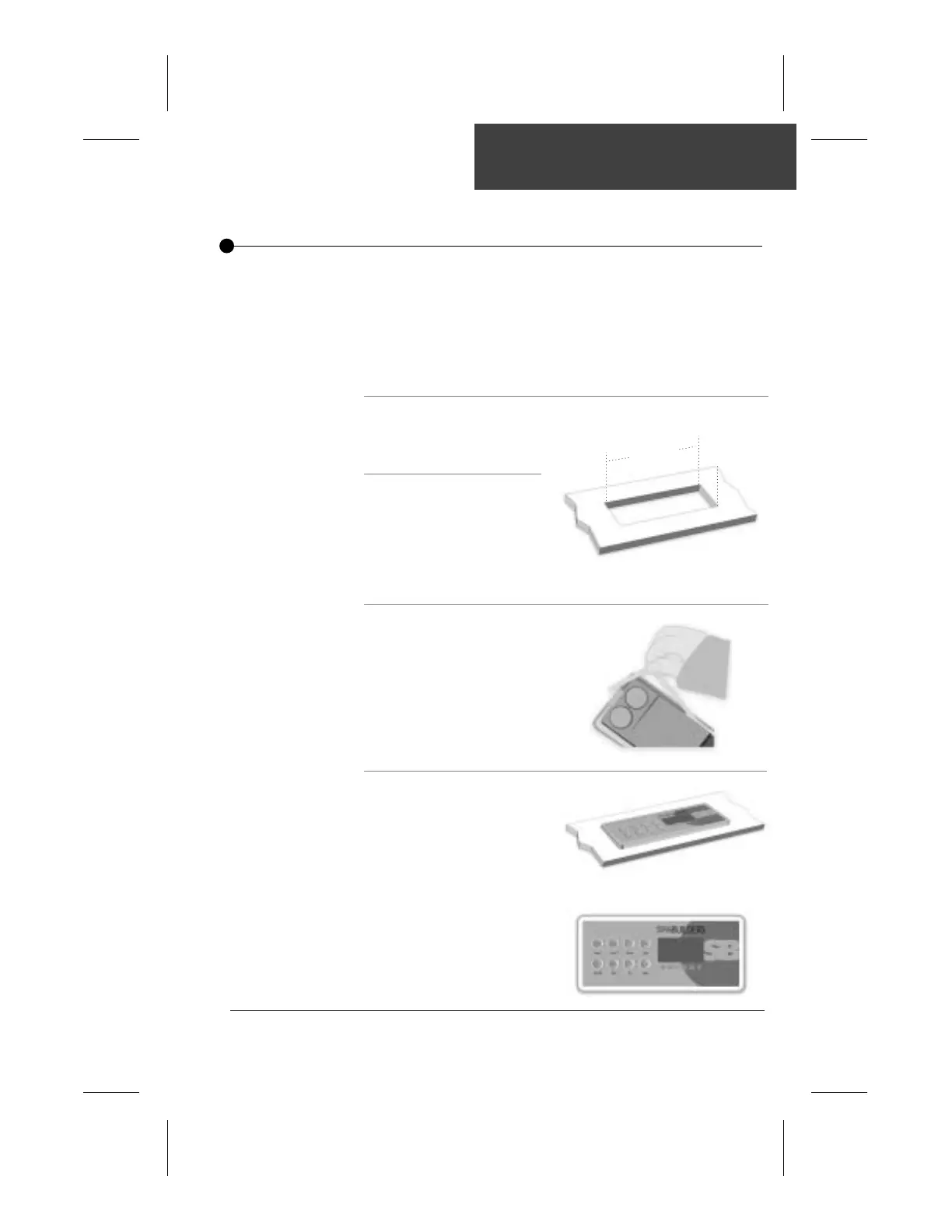

1• Select the most appropriate
location for the keypad.
2• Cut out a 2 5/8" x 6
3/8" (67 x 162 mm)
rectangular opening
from the edge of the
spa. Clean surface.
3• Peel off the double-
sided protective tape
layer around the back.
4• Insert keypad in
position allowing the
connecting cable atta-
ched to keypad
bottom to hang
below opening.
5• Secure keypad in
place by pressing
firmly on it.
Adhesive
Installation
6
3/8
"
162 mm
2
5/8
"
67 mm
