Gecko M-CLASS MC-MP-SBD User Manual

MC-MP-SBD O wner’s Manual
43

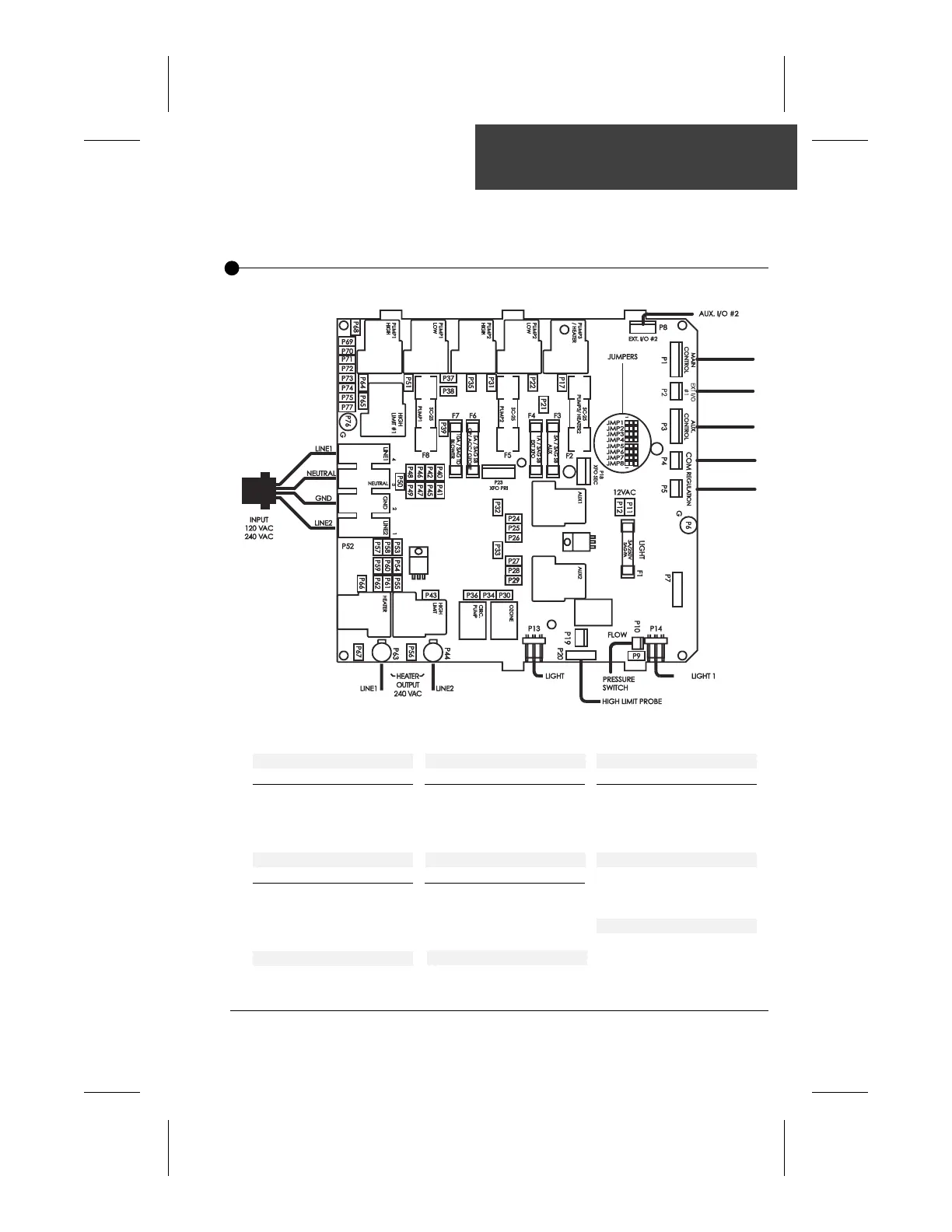

The wiring diagram below provides a general idea of M C-M P-SBD wiring, but it is impor-
tant to note that it may not apply to all systems. The wiring diagram included on inside
power box cover is the one to be used as main reference for the spa you are servicing.
Wiring Diagram
Pump 1
Voltage 120 v 240 v
Green / Ground P69 P69
Red / Low Speed P37 P37
Black / H igh Speed P64 P64
White / Com P48 P57
Pump 2
Voltage 120 v 240 v
Green / Ground P70 P70
Red / Low Speed P22 P22
Black / H igh Speed P35 P35
White / Com P45 P58
Jumper Settings
Refer to page 8
Blower
Voltage 120 v 240 v
Green / Ground P72 P72
Black / Line P43 P43
White / Com P49 P49
Red / Line P43 P43
Ozone
Voltage 120 v 240 v
Green / Ground P73 P73
Black / Line P30 P30
White / Com P46 P60
Red / Line P30 P30
Heater
Black 1 P63
Black 2 P44
Green / Ground Ground
Fiber Box
Voltage 120 v
Green / Ground P74
Black / Light P50
White / Com P24
Red / W heel P28
Circulation Pump
Voltage 120 v 240 v
Green / Ground P74 P74
Black / Line P36 P36
White / Com P41 P54
Red / Line P36 P36
Light Connector
Light 1 P14
Light 2 P13
