MC-MP-SBD O wner’s Manual
23

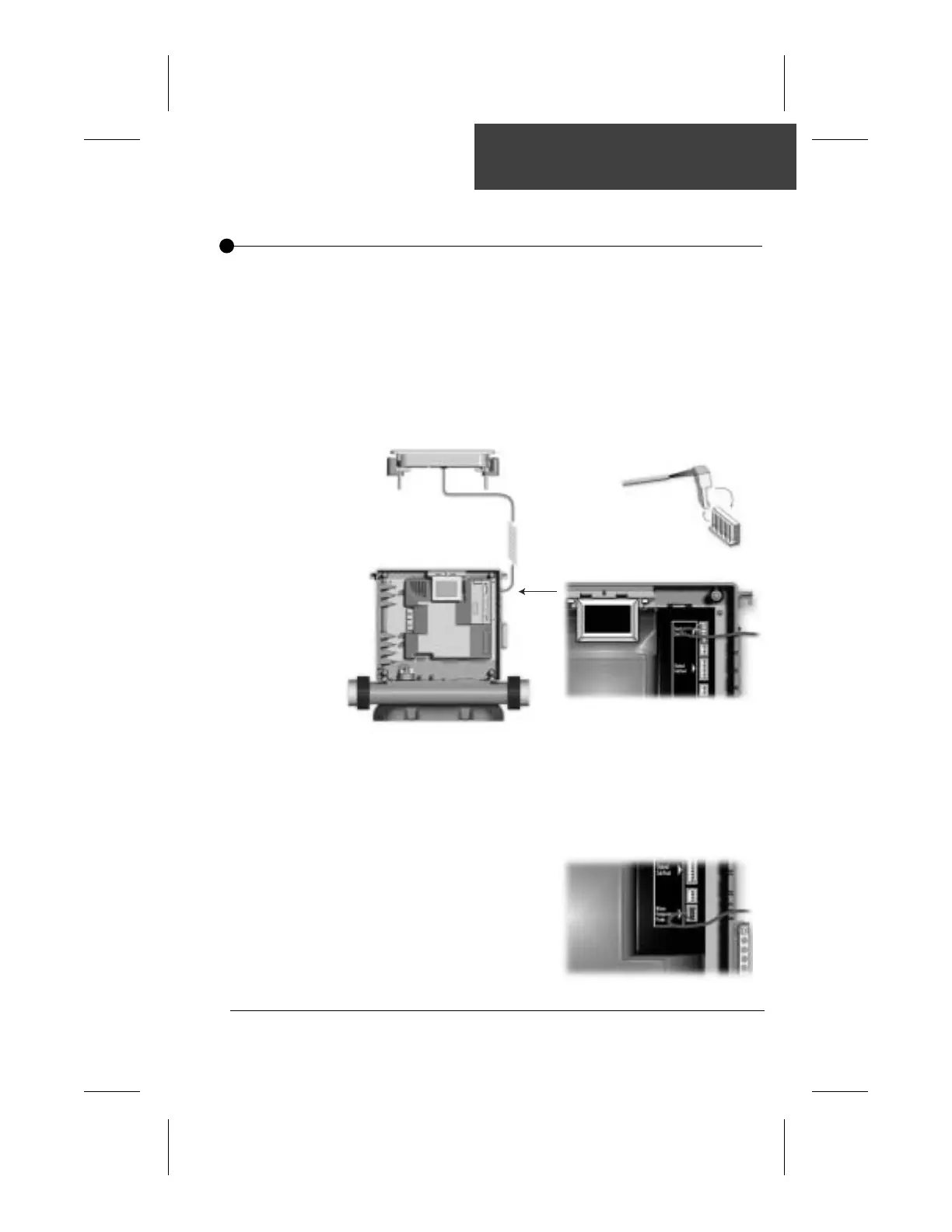

Loosen the four screws that secure the plastic cover of your
spa pack’s power box and remove the cover.
The main spa side keypad must be connected to the standard
side panel port of the power box. A cable is provided to
connect the control keypad to the board inside the power
box. Attach the connector to the board as shown below.
Connecting to the
Power Box
Warning
Keypad
cable
Keypad
Power box
Clearance between low and high voltage conductors must be at
least 1/4" (6 mm).
Connecting the
Temperature
Probe
The water temperature
probe must be similarly
connected to the port
labelled "TEMP" on the
board, with the cable
following the same route as
the main control keypad.
Proper way to connect keypad to
standard "Side panel" port:
Cable facing the left
side of the box
Header
Pins slide
into the cable head
H orizontal-heater model
M ain Keypad & Temperature Probe
Installation
To Next Page
