MC-MP-SBD O wner’s Manual
21
Your MC-MP-SBD has been factory-adjusted to be operational as soon as it is
under power.
However, it is possible to change some parameters of your MC-MP-SBD by
repositioning specific jumpers located on the board or by setting the low level
programming.

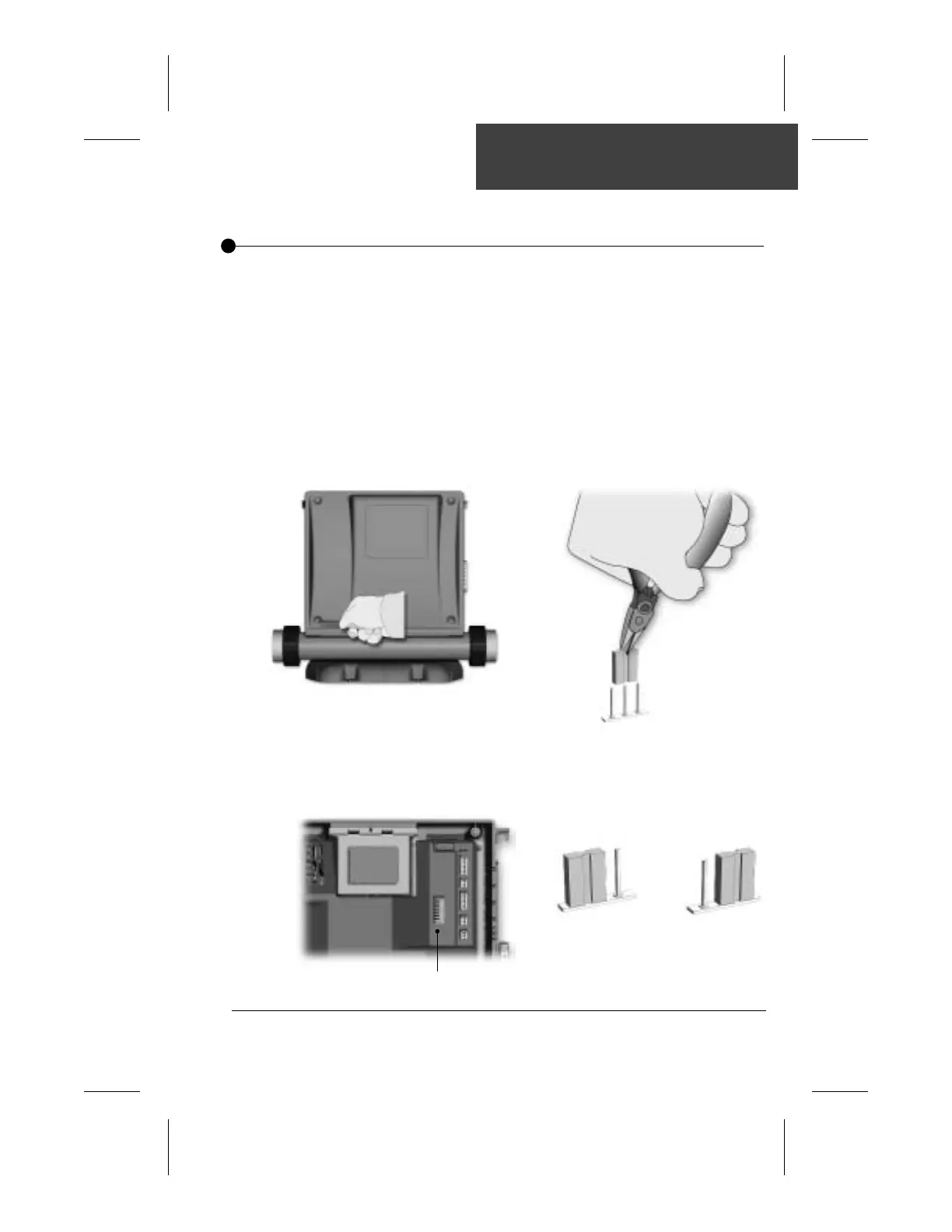

To access the jumpers:
2• To change a setting, simply pull
jumper off and replace in desired
position. (see jumper set-up posi-
tions)
1• The jumpers are located in
upper right side of the board.
Jumpers
1• Loosen the four screws that secure
the plastic cover of your spa pack’s
power box and remove the cover.
To set the jumpers:
Jumper Set-Up
Installation
Position 1
Position 2
To Next Page
