M ain Top Side Control (K-8)
Installation

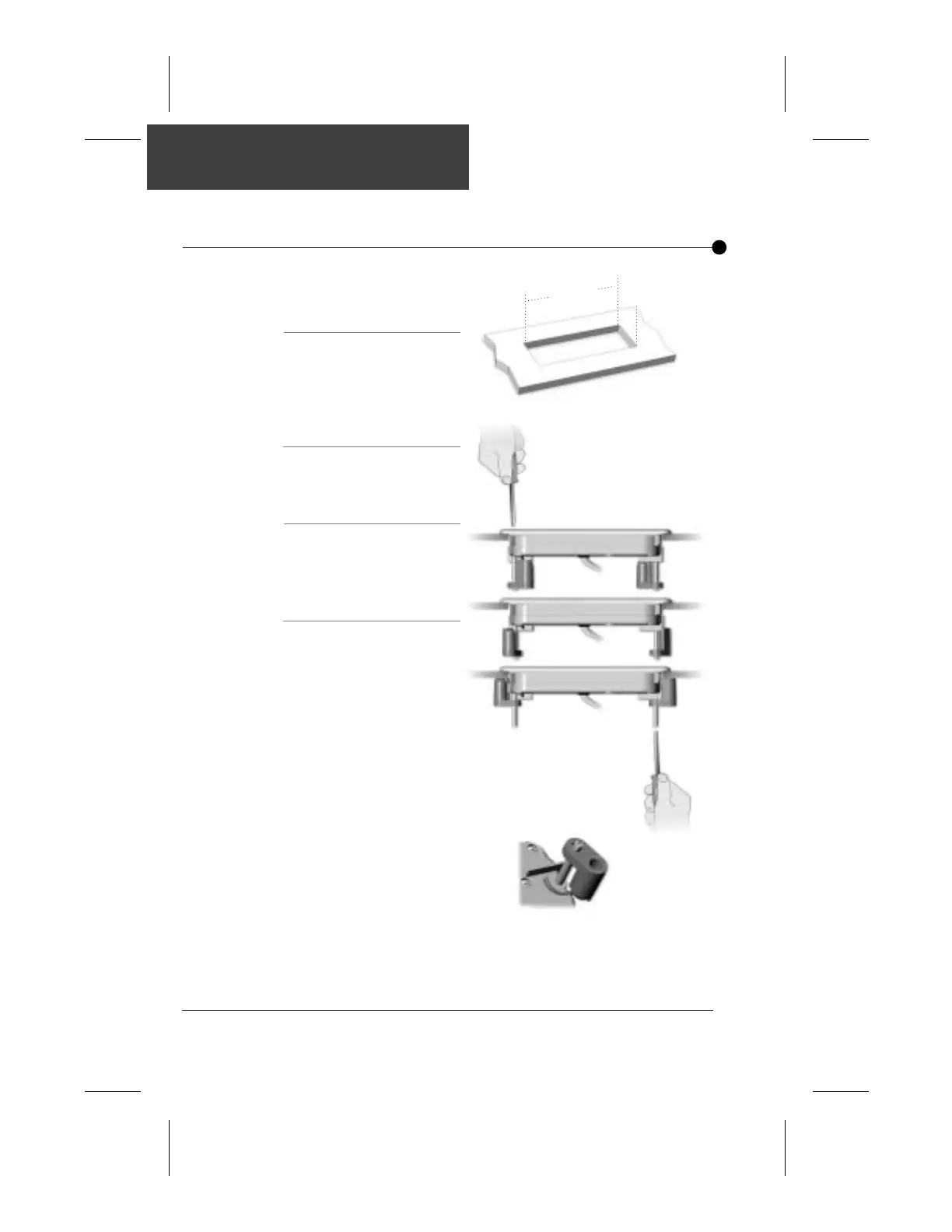

1• Select the most appropriate
location for the keypad.
2• Cut out a 2 5/8" x
6 3/8" (67 x 162 mm)
rectangular opening
directly on the edge of
the spa.
3• Rotate self-positioning
brackets toward the
inside of keypad.
4• Insert keypad, with
bottom connecting
cable hanging below
opening.
5• a) If installing keypad
from above (if overlay
has not been placed),
use a Phillips screwdriver
to tighten in place and
properly seal unit
(avoid overtightening).
Brackets follow self-
guiding edges, to lock
themselves in position.
b) If installing from below,
use a flat screwdriver
to turn bracket screws
counterclockwise, so
that brackets follow
self-guiding edges to
lock into position.
Bracket
Installation
6
3/8
"
162 mm
2
5/8
"
67 mm
Installation is made easier with
self-positioning
brackets.
