68
OPERATION
Machine Operation
Operating the Right Control Lever
WARNING
¡¡
¡¡
¡Be careful to check which pattern of
lever control arrangement you are
operating with before beginning
operations.
¡¡
¡¡
¡Make sure the bucket is lowered on the
ground before floating the lift arms.
Floating the lift arms while they are
raised will cause the bucket to fall and
is extremely dangerous.
¡¡
¡¡
¡Do not drive the loader forward with
the lift arms in Float position.
¡¡
¡¡
¡At times of combined operation of
bucket and arm lowering, continuation
of the combined operation after the
bucket has reached the stroke end will
result in the arm rising or stopping
without going lower. Be cautious of any
unexpected movement of the arm.

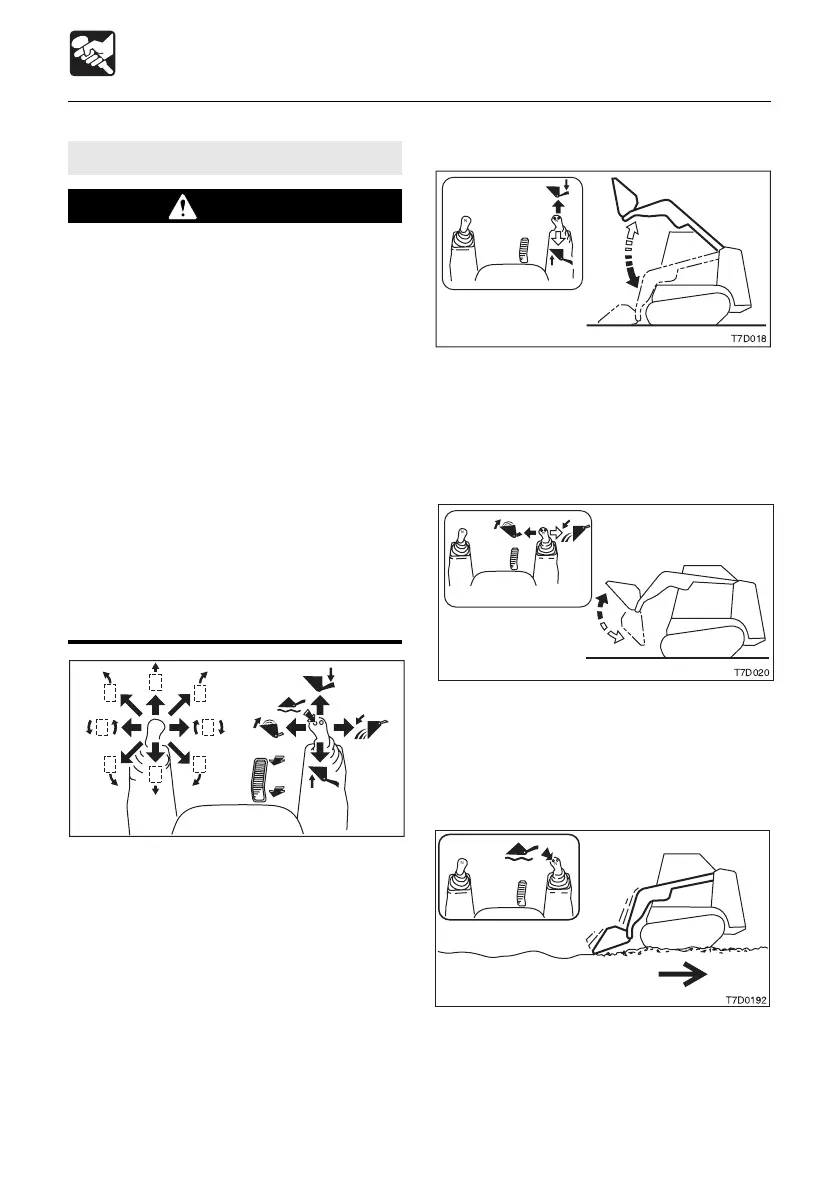

Use the right control lever to operate the lift
arms and bucket.
Return the right control lever to the neutral
position to stop the lift arms and bucket.
1. Set the safety bar to the released position.
Operating the Lift Arms
aTo lower the lift arms:
Push the right control lever forward.
eTo raise the lift arms:
Pull the right control lever backward.
Operating the Bucket
aTo rollback:
Tilt the right control lever to the left.
eTo dump:
Tilt the right control lever to the right.
Operating the Lift Arms Float
aTo floating the lift arms:
Press the float switch on the right control
lever.
N
N
B
A
T7D002
T7D018
N
N
T7D020
N
N
N
N
To Next Page
