69
OPERATION
Machine Operation
Operating the Auxiliary Hydraulics
Use this to operate a breaker, angle bucket
or other attachment.
Two methods of operation are permitted:
operation with the auxiliary hydraulic switches
and operation with the auxiliary pedal.

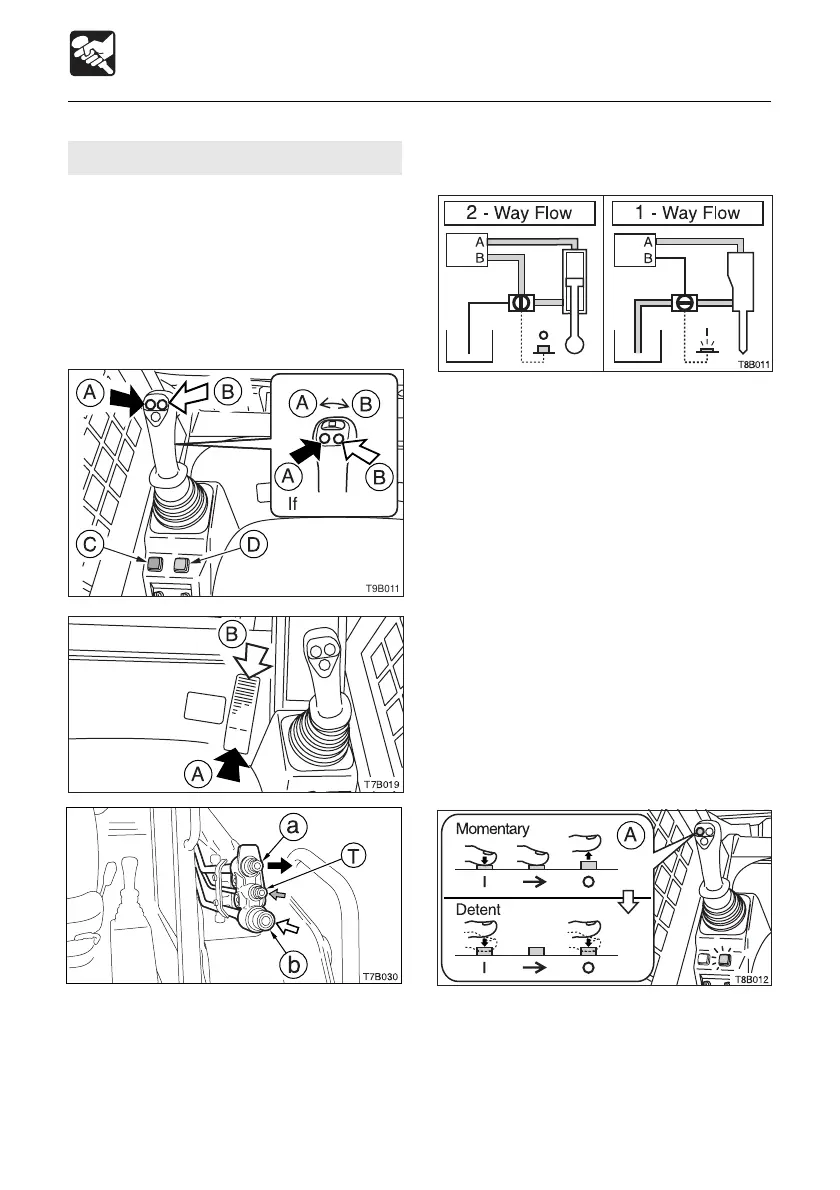

Operating the Auxiliary Hydraulic
Switches / the Auxiliary Pedal
aTo deliver hydraulic oil to port (a):
Depress (A).
¡When using a hydraulic breaker or other
1-way flow attachment.
eTo deliver hydraulic oil to port (b):
Depress (B).
When using a hydraulic breaker or other 1-way
flow attachment
Change the direction of the hydraulic oil flow
by setting Flow selector switch (C) ON to
return the oil in the (b) port line directly to the
hydraulic tank.
Refer to page 47 “Flow Selector Switch”.
When using a detent mode switch (D).
IMPORTANT: Please note that operation
over long periods with Detent mode
switch pressed will cause the hydraulic
oil temperature to rise and will shorten
the life of the hydraulic units.
A press of Detent mode switch (D) lights the
orange lamp and the auxiliary hydraulic
switch (A) changes to detent mode.
Detent mode
One press of the auxiliary hydraulic switch
(A) sets it to ON and one more press sets it
to OFF. There is no need to continue pressing
the switch.
Refer to page 48 “Detent Mode Switch”.
)
*
6%*'
T9B011
If Equipped
To Next Page
