mFlow
10
100
1.000
10.000
100.000
1.000.000
10.000.000
0,01 0,10 1,00 10,00
DN 300
DN 250
DN 200
DN 150
DN 125
DN 100
DN 80
DN 65
DN 50
DN 40
DN 32
DN 25
Flow velocity m/s
Flow l/h

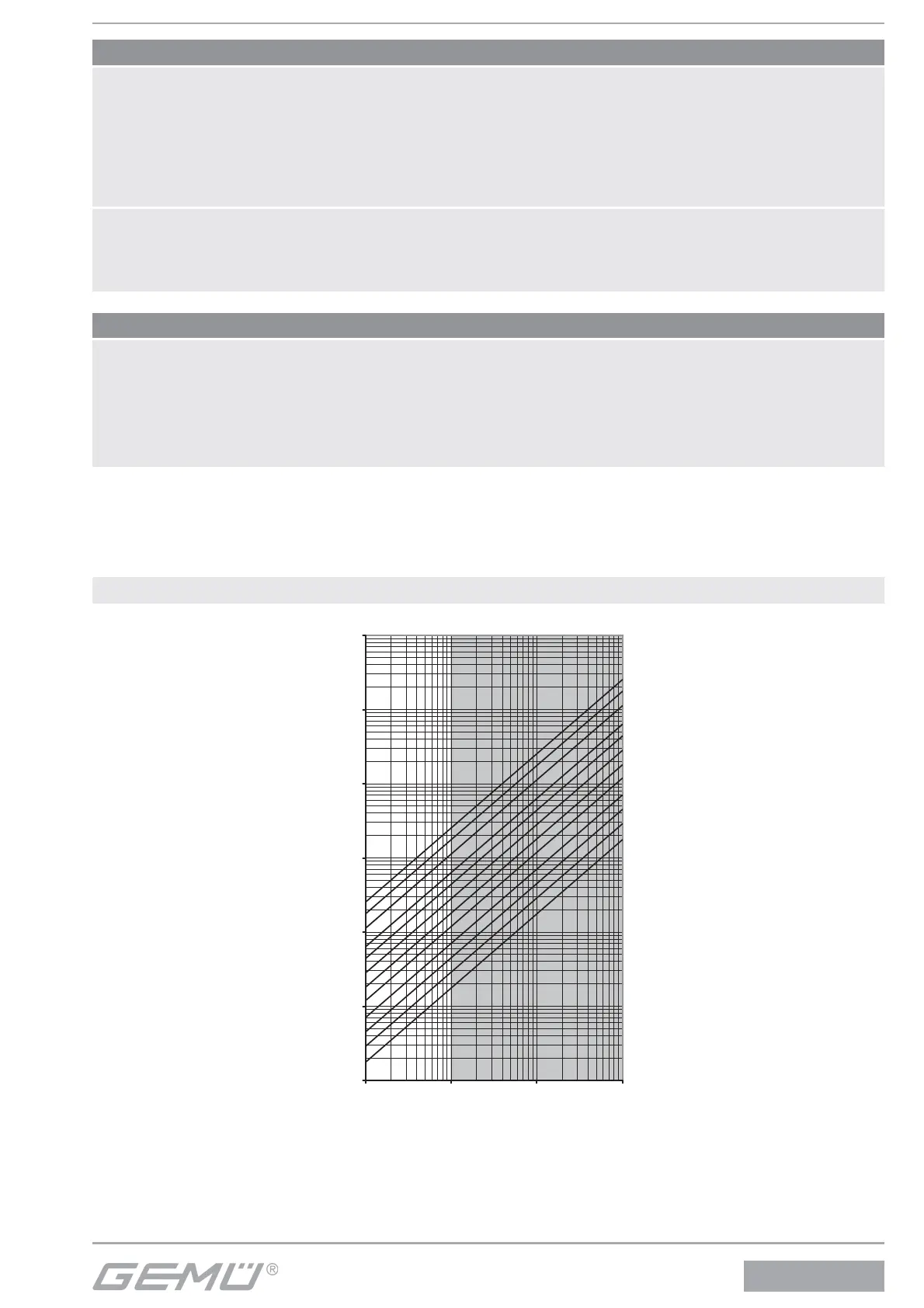

Flow characteristics
General information
Protection class to EN 60529 IP 65
Electrical protection class II
Mounting position
Vertical rising pipeline recommended, angular section with horizontal installation position
horizontal ± 45°
Installation note Inlet/outlet distance min. 10x / 5x DN
Earth fitting and pipeline before and after the flowmeter
Particulars Filled pipeline required (preferably rising pipeline), prior to commissioning the sensor must
be in the medium to be measured for 24 h. Deposits in the measuring fitting have to be
reduced to a minimum in order to avoid additional measurement errors.
Directives
Low voltage directive 73/23/EEC
EMC directive 89/336/EEC
Interference resistance EN 61000-6-2
Interference emission EN 61000-6-4
Materials
Housing cover of measurement device PSU
Housing base of measurement device PP30
Electrodes 1.4435
Sensor rod 1.4435 / PEEK, 1.4435 / TFM1600
Housing material Fitting 1.4435
insert 1.4571
union nut 1.4408
Seal material FPM, EPDM, Isolast J9505
