8 • Function description OptiSpray DPP01
Structure and function
OptiSpray DPP01 - structure

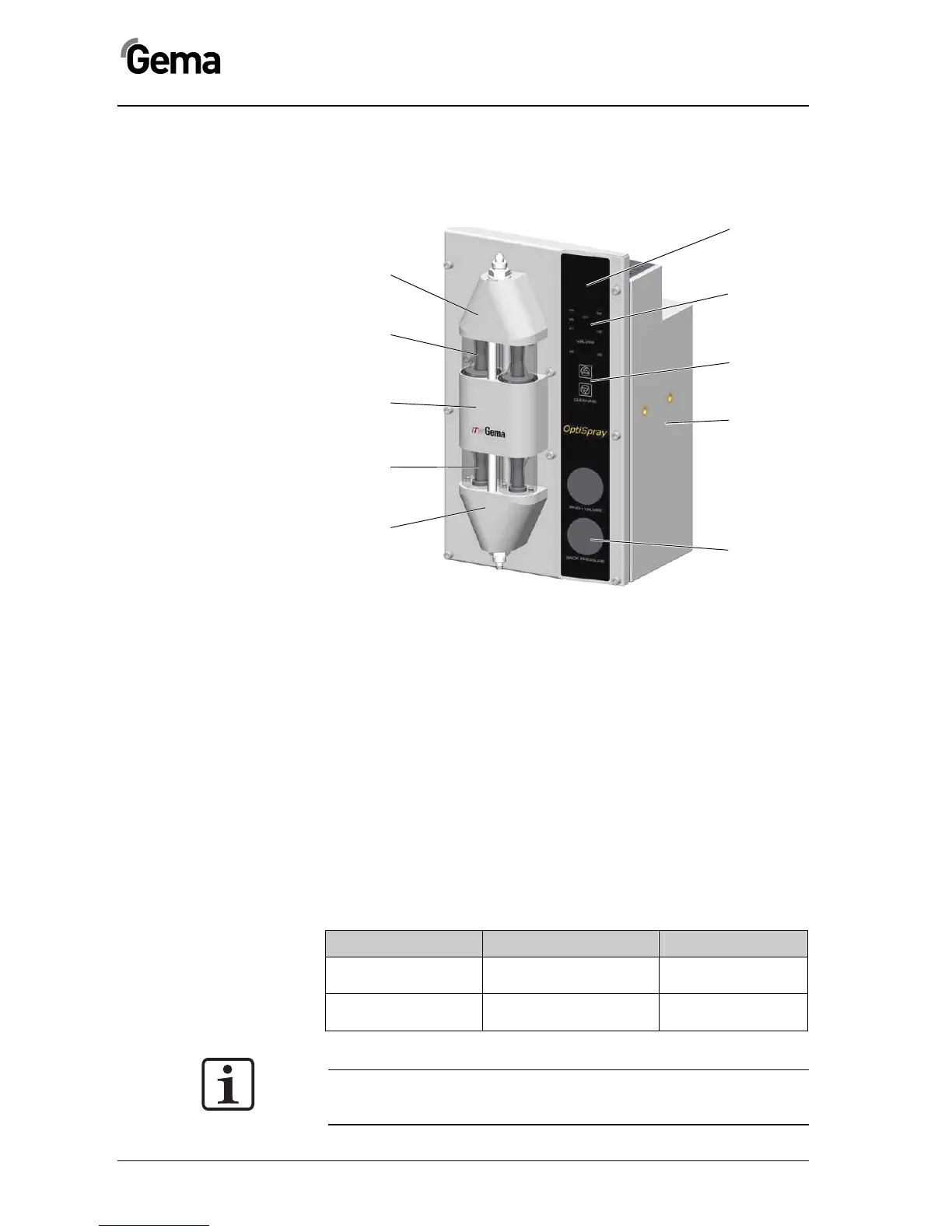

OptiSpray DPP01 Dense phase pump - structure
A
Suction side 4 Status LEDs
B
Transport side 5 Diagnostic LEDs
1 Y-piece 6 Operating keys
2 Pinch valves 7
Pneumatic system and elec-
tronics
3
Distribution block with filter ele-
ments
8 Pressure gauge
Powder hoses
Depending the application, different powder hoses are used for the suc-
tion and conveying procedure. The corresponding hose connections with
nuts with kink protection must be used!
Field of application Suction side Transport side
OptiFlex FP Manual
equipment
Inside diameter 4.5 mm,
hose length < 1.2 m
Inside diameter 7 mm
Automatic equipment
Inside diameter 4.5 mm,
hose length < 3 m
Inside diameter 7 mm
Note:
On the transport side, a powder hose with conductive strip must be
used (electrically conductive)!
1
B
A
2
3
2
1
6
8
4
7
5
