18 • Start-up and operation OptiSpray DPP01

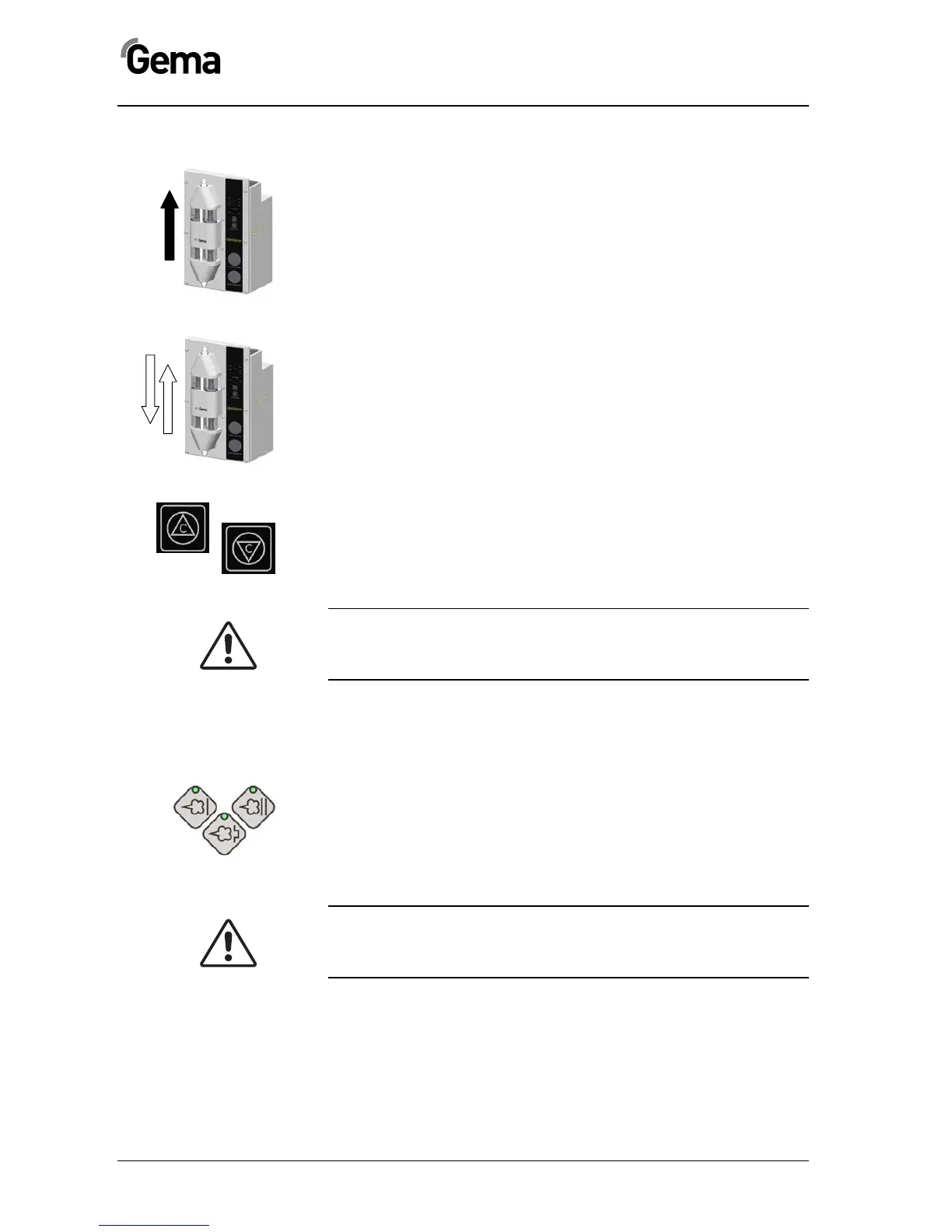

OptiSpray DPP01 - characteristics
Conveying direction
The OptiSpray DPP01 Dense phase pump conveying direction is defined
by the direction of arrow, that means, the suction side is on the bottom,
the transport side on the top (see picture).
Powder hose rinsing
The powder hose rinsing enables the cleaning of the powder hoses and
the filter elements in the dense phase pump. If color changes take place,
rinsing must be done in conveying and in suction direction.
Manual rinsing for color change preparation
Rinsing in conveying direction is activated by pressing the T1 key.
Rinsing in suction direction is activated by pressing the T2 key.
The cleaning program (controlled by the control unit) takes place with an
external compressed air source in conveying direction.
Attention:
Large dust formation possible!
The suction hose and the conveying hose must be kept in the booth
during the rinsing procedure!
Cleaning programs
The CG09-P Gun control units feature three cleaning programs:
-
Powder chamber emptying
-
Cleaning the hose to the gun
-
Cleaning the hose on the suction side
(For details, see the operating instructions of the corresponding gun con-
trol unit)
Attention:
Large dust formation possible!
The conveying hose and the powder gun must be kept in the booth
during the rinsing procedure!
Maintenance interval monitoring
This function is provided by the CG09-P Control unit.
