4.0 System Details
The two main devices included in the Wireless Kit are the transmitter and the receiver. This
section contains important information on these devices that should be understood prior to
operation.
4.1 Wireless Transmitter: UTX-B40
The wireless transmitter sends a signal to the receiver and controls the audio being broadcast
through the LRAD. The transmitter is held by the user.
The following figure highlights the different interfaces located on the transmitter.
Volume
Control
Knob
Audio
Input
Indicator
Light
Power
Indicator
Light
PUSH TO
TALK
Locking
Latch
ALERT
TONE
Button
SET Button
MUTE
Button

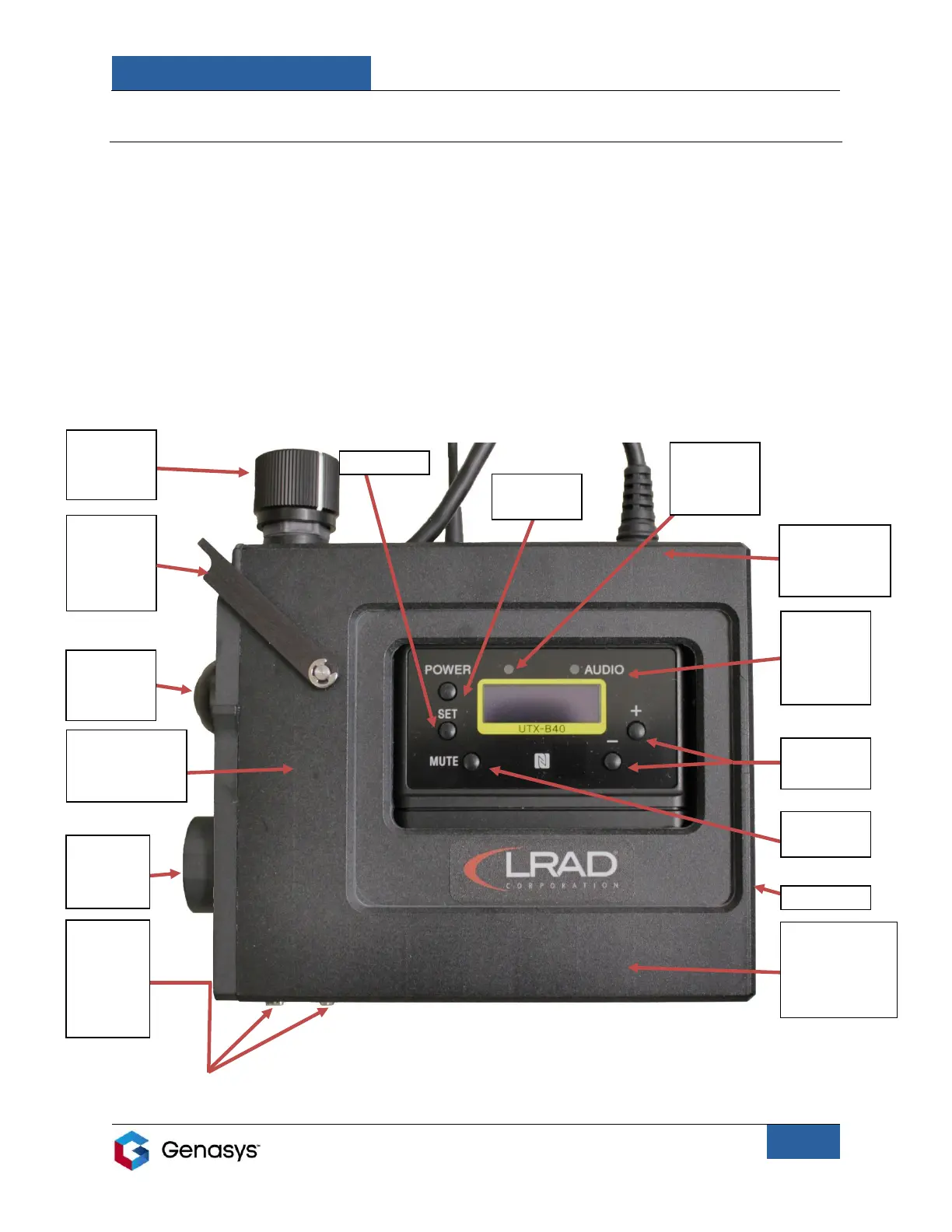

Figure 1: Wireless Transmitter
Release Tab
(located on
the rear)
Audio
Inputs:
MIC (left)
and AUX
(right)
SELECTION
Buttons
POWER
Button
Battery
Compartment
(located under
housing)
USB Connector
(located under
housing)
Set Screw
PUSH TO
TALK
Button
