2.4 — Parts Shipped Loose
The generator is shipped with the following loose parts:
• Rubber Mounts (units that include fascia)
• Battery Terminal Cap
• Main Line Circuit Breaker (MLCB) Terminal Caps
• Main Line Circuit Breaker (MLCB) Locking Mechanism
• Keys
• Flexible Fuel Line
• Oil Drain Pump Kit
• Wire Shielding to separate AC from DC control wires
• Rear Mounting Brackets (2)
• Installation/Owner’s Manuals (CD if applicable)

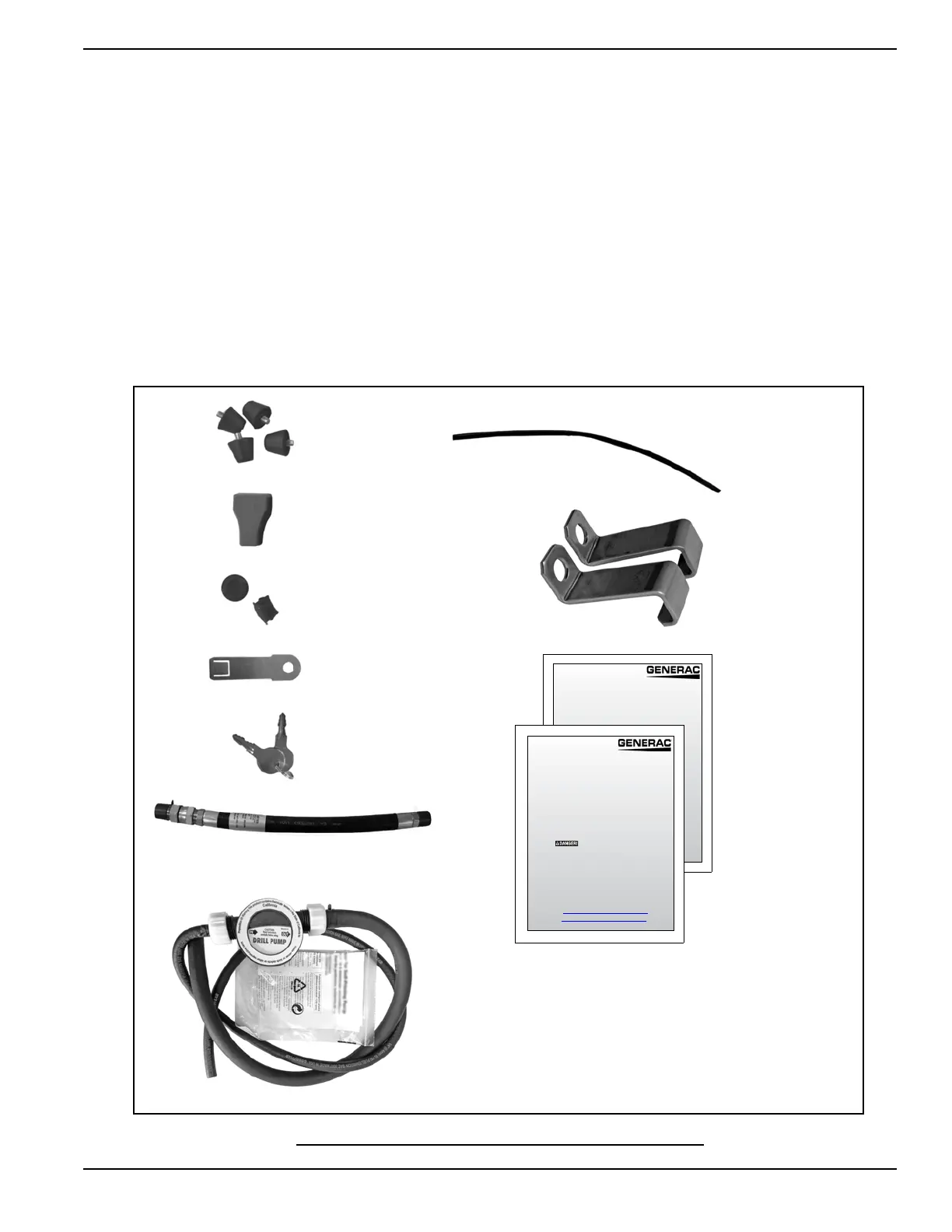

Figure 2-6. Loose Parts
Battery
Keys
Wire Shielding
Flexible Fuel Line
Rubber Mounts
(Cable Strapped to Battery Cable or Alternator Bolt)
MLCB Terminal Caps
Terminal Cap
Installation Guidelines
For
Automatic Standby Generator
15 kW Synergy EcoGen™
This manual should remain with the unit.
This manual must be used in conjunction
with the appropriate owner’s manual.
NOT INTENDED FOR USE IN CRITICAL
LIFE SUPPORT APPLICATIONS.
ONLY QUALIFIED ELECTRICIANS OR
CONTRACTORS SHOULD ATTEMPT
INSTALLATION!
DEADLY EXHAUST FUMES! OUTDOOR
INSTALLATION ONLY!
To locate in Spanish, go to http://www.generac.com/serviceͲsupport/productͲsupportͲlookup
To locate in French, go to http://www.generac.com/serviceͲsupport/productͲsupportͲlookup
Owner’s Manual
For
Automatic Standby Generator
15 kW Synergy EcoGen™
This manual should remain with the unit.
This manual must be used in conjunction
with the appropriate installation manual.
NOT INTENDED FOR USE IN CRITICAL
LIFE SUPPORT APPLICATIONS.
ONLY QUALIFIED ELECTRICIANS OR
CONTRACTORS SHOULD ATTEMPT
INSTALLATION!
DEADLY EXHAUST FUMES! OUTDOOR
INSTALLATION ONLY!
To locate in Spanish, go to http://www.generac.com/serviceͲsupport/productͲsupportͲlookup
To locate in French, go to http://www.generac.com/serviceͲsupport/productͲsupportͲlookup
Owner’s Manual
Installation Manual
MLCB Locking Mechanism
Rear Mounting
Brackets
Oil Drain Pump Kit
