Installation Guidelines for Air-Cooled Generators 31
Section 7 Operation
7.1 — Control Pad
The control pad is intended for use by qualified service personnel only.
See Figure 7-1. The control pad is located under the lid of the enclosure. The lid is secured by two locks, one on each
side of the enclosure. For best results, press down on the lid directly above the side lock, and while holding the lid
down, use key to unlock the latch. Repeat step on opposite side of enclosure. Always unlock both the left and right side
locks before attempting to lift the lid.
NOTE: The lid may appear stuck if pressure is not applied as described. Always verify that the side locks are
unlocked before pulling up on lid.
To remove the front access panel, lift it straight up to disengage side hooks, and then outward away from unit.
When closing the unit, remember to lock both left and right side locks.

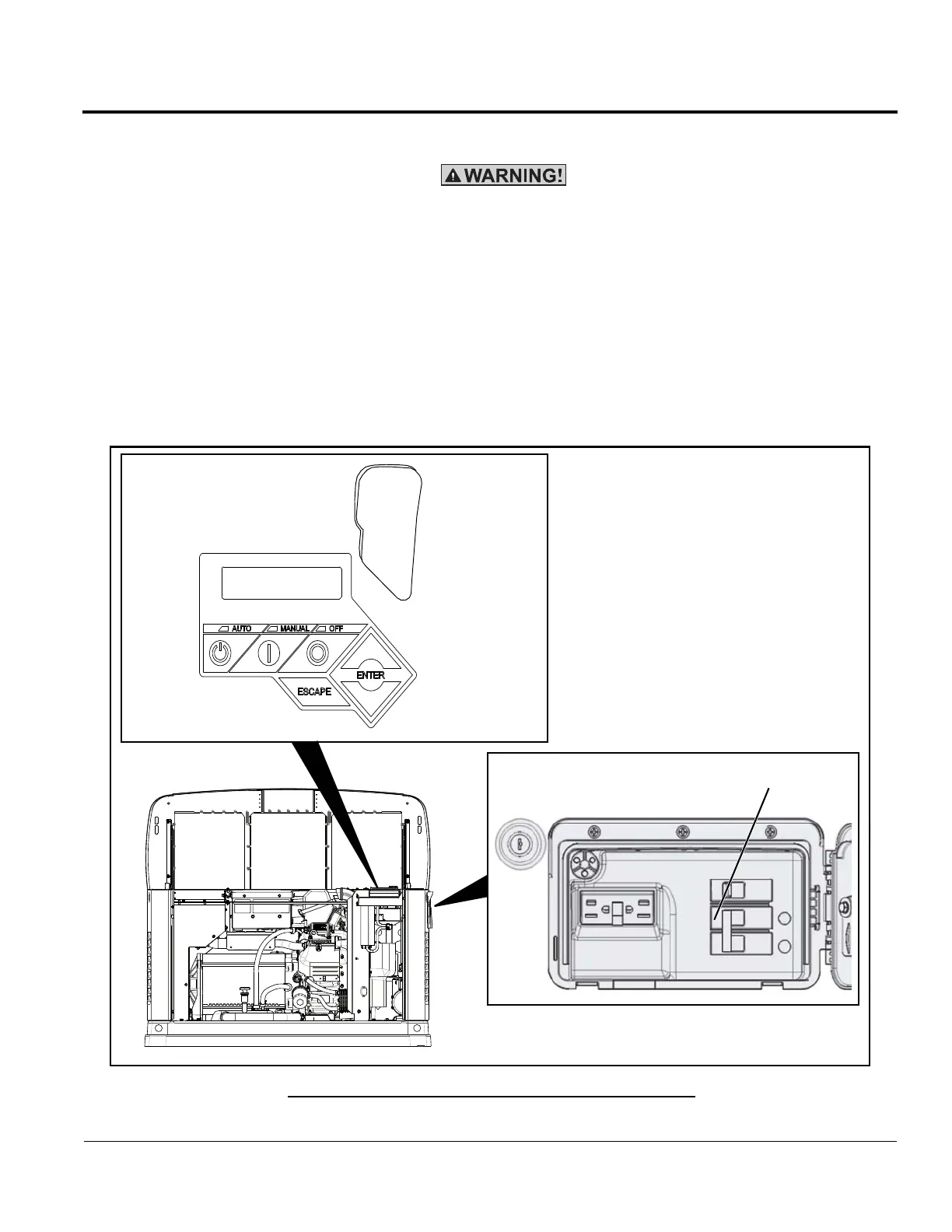

Figure 7-1. Control Pad and Side Compartment
7.5 Amp Fuse
and USB Port
(Under Flap)
Side Lock
Generator Disconnect
Circuit Breaker
Side Door Compartment
LCD Screen
Control Pad
