Generac Power Systems 6103 EcoGen User Manual

Electrical Connections
28 Installation Guidelines for Air-Cooled Generators

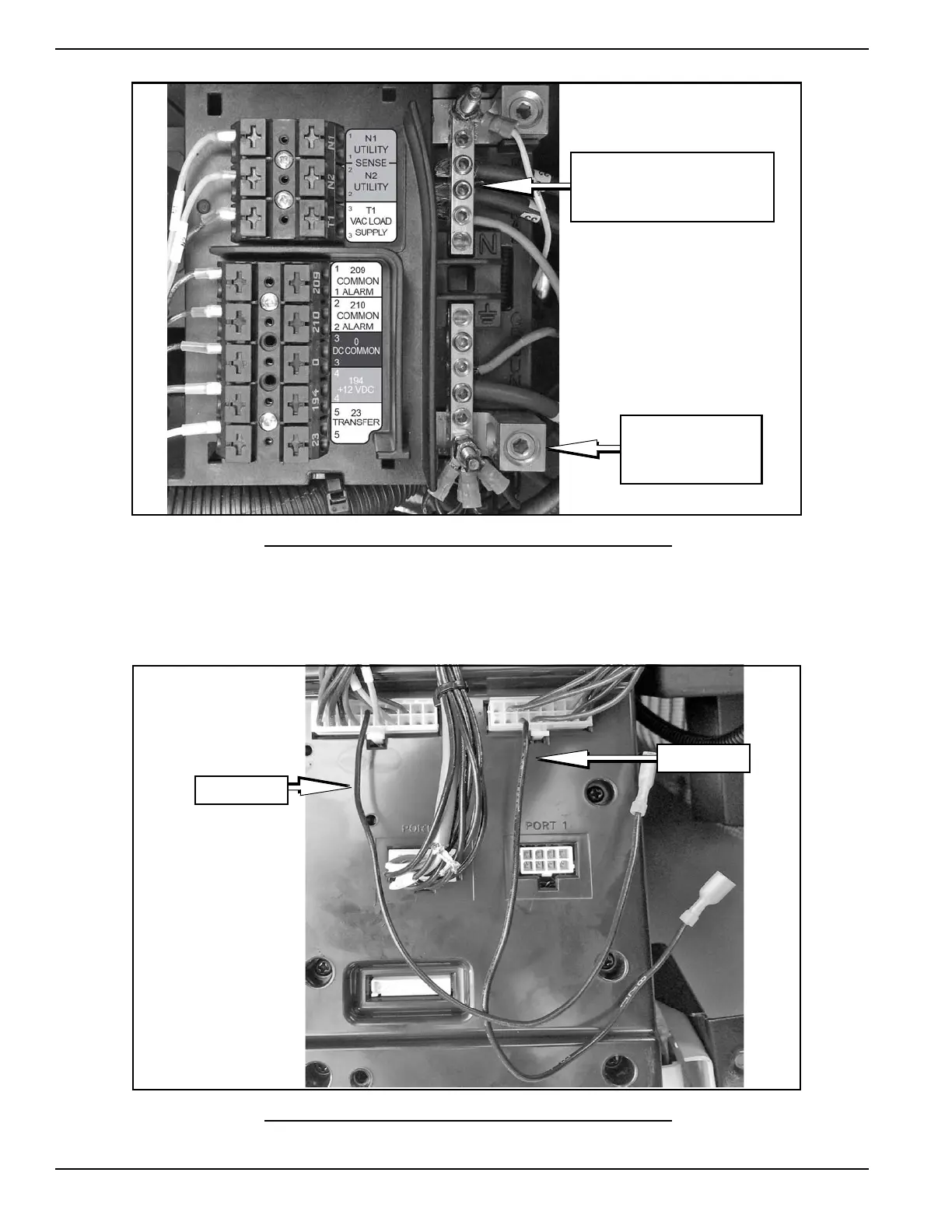

Figure 6-1. Control Wiring Torque Specifications
NOTE: To separate low voltage from high voltage wires, unless NEC Section 300.3(c)(1) requirements are met,
run 2-wire start and T1 wires through wire shielding provided (see Subsection 2.4 —Parts Shipped Loose).
NOTE: Regardless of whether unit is running or not, keep T1 connected and energized with 120 VAC to keep
battery charged.
Figure 6-2. 2-wire Start Wire Connections
Large Ground
2/0 to 14 AWG:
120 in-lbs (14 Nm)
4-6 AWG: 35 in-lbs (4 Nm)
8 AWG: 25 in-lbs (3 Nm)
10-14 AWG: 20 in-lbs (3 Nm)
Wire 178
Wire 183
