Owner’s Manual for Stationary Diesel Generators 11
Activation and Startup
Section 3: Activation and Startup
IMPORTANT NOTE: Before startup, the unit fuel tank
may need to be inspected by the local AHJ (authority
having jurisdiction) or fire marshal to meet all
requirements. User must fill the fuel tank and treat the
fuel according to additive specifications.
Orientation
NOTE: The 2.2L unit is depicted in most of the artwork
used in this manual. The location and appearance of
some components may vary between engine models.
The side of the enclosure with the viewing window (A) is
identified as the rear of the generator set. The right and
left sides are identified by standing at the rear and
looking towards the front of the unit. The battery (B) and
fuel priming pump (C) are located on the side of the unit.

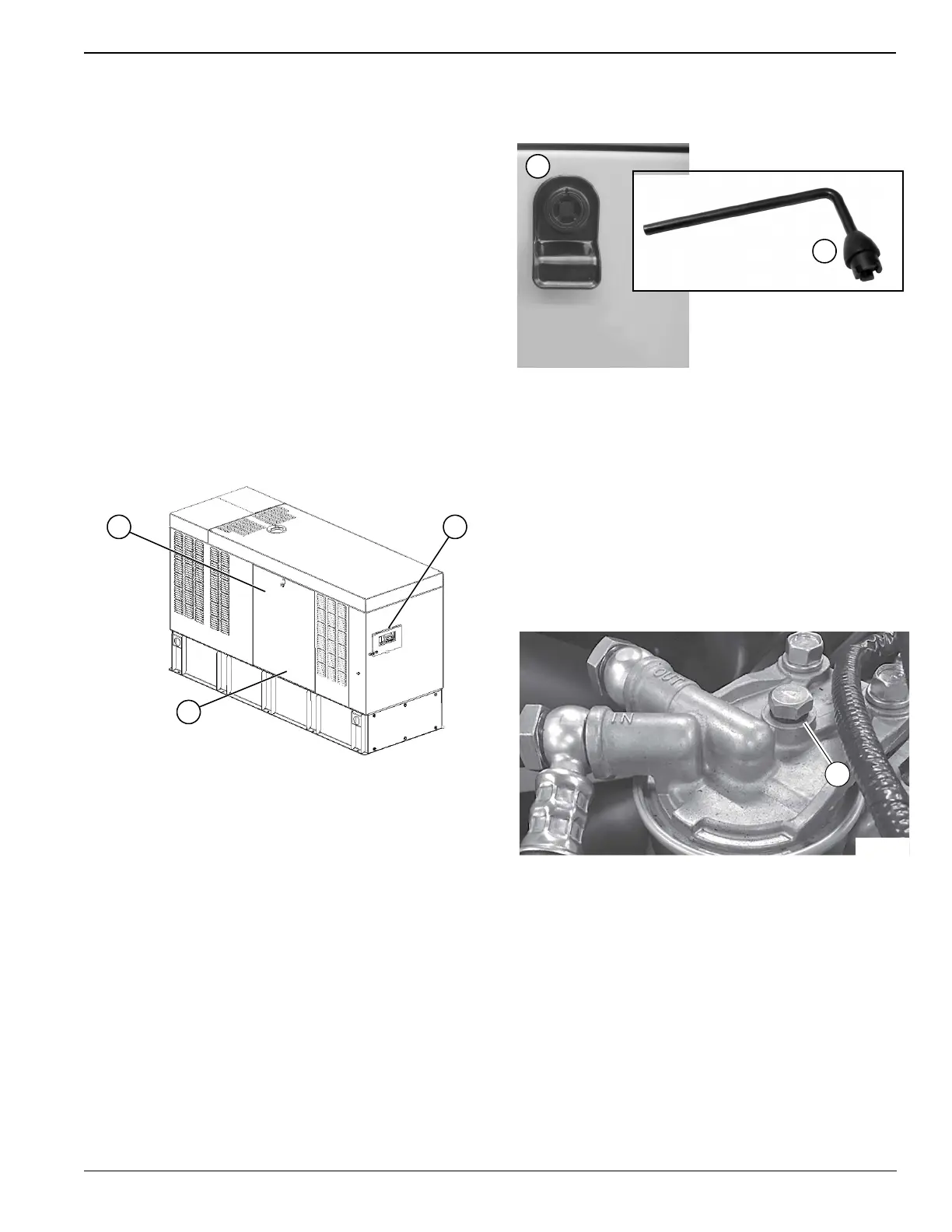

Figure 3-1. Enclosure (Rear Left View)
Remove Side Access Panels
NOTE: Access panels are located at both the front and
sides of the enclosure.
1. Insert key into latch and rotate counterclockwise 1/
2 turn. See Figure 3-2.
2. Raise panel using thumb latch.
Figure 3-2. Access Panel Key
Prime Fuel System
NOTE: The 2.2L engine is equipped with a rubber hand
priming bulb. Some 2.2L models may be equipped with a
remote stainless steel hand primer pump with a
pushbutton.
1. See Figure 3-3 and, if applicable, Figure 3-4.
Loosen fuel filter air bleed screw (G) and work
priming pump (H), or priming bulb, until bubbles are
observed.
Figure 3-3. Fuel Filter Air Bleed Screw
To Next Page
