Owner’s Manual for Stationary Diesel Generators 27
Maintenance
Section 5: Maintenance
Component Locations
The side of the enclosure with the viewing window is
identified as the rear of the generator set. The right and
left sides are identified by standing at the rear and
looking towards the front of the unit.
NOTE: The 2.2L engine is depicted in the artwork used
in this manual. The location and appearance of some
components may vary between engine models.

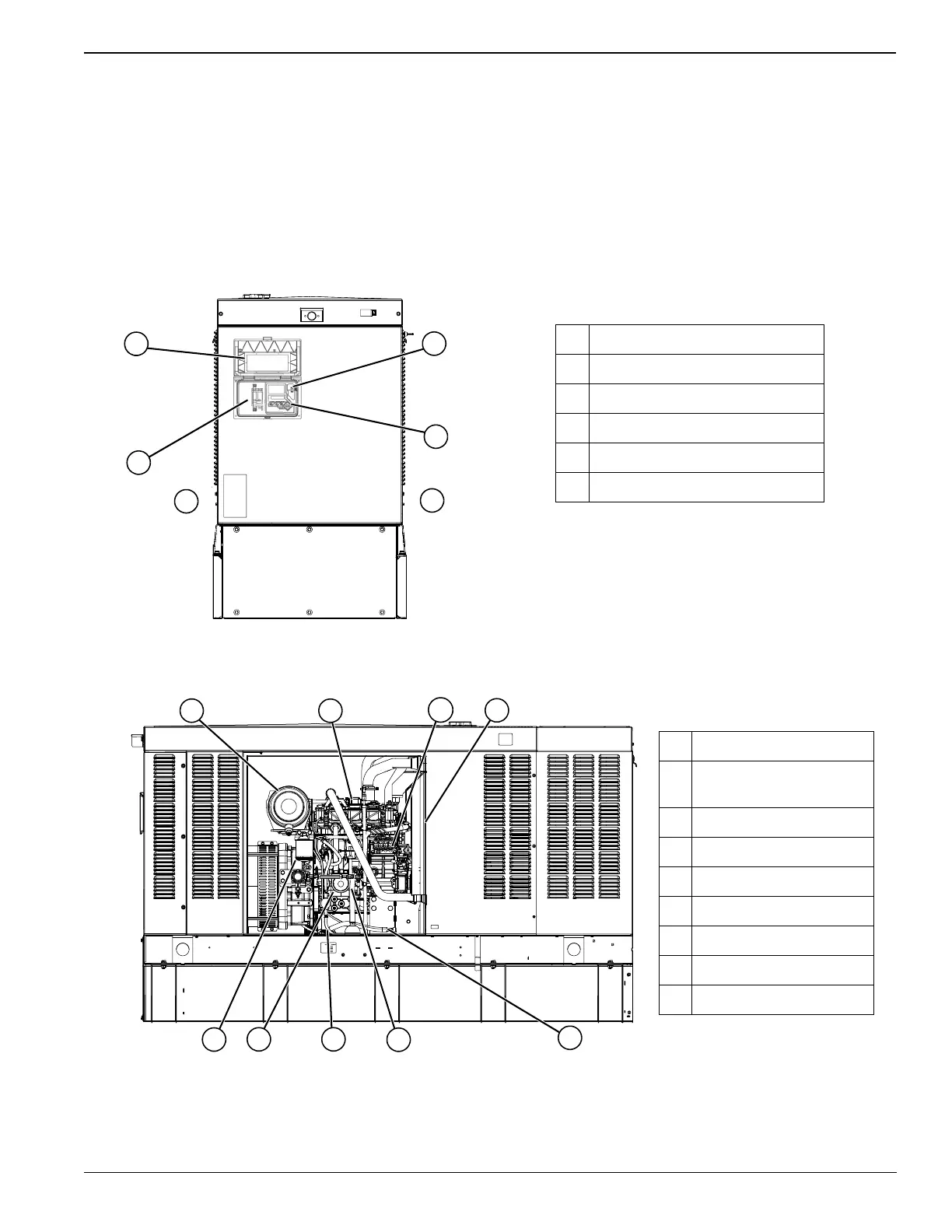

Figure 5-1. Rear View
Figure 5-2. Right Side View
A 7.5 Amp Fuse and USB Port
B Control Panel and LCD Screen
C Main Circuit Breaker
D Viewing Window
E Left Side
F Right Side
A
B
C
D
E
F
006378
A V-Belt (not shown)
B Electronic Governor
(2.2L engines)
C Oil Drain Hose
D Oil Fill Cap
E Oil Level Dipstick
F Oil Filter
G Air Filter
H Fuel Supply/Return Hoses
J Fuel Filter/Air Bleed
A
C
D
F
E
B
G
H
J
006379
