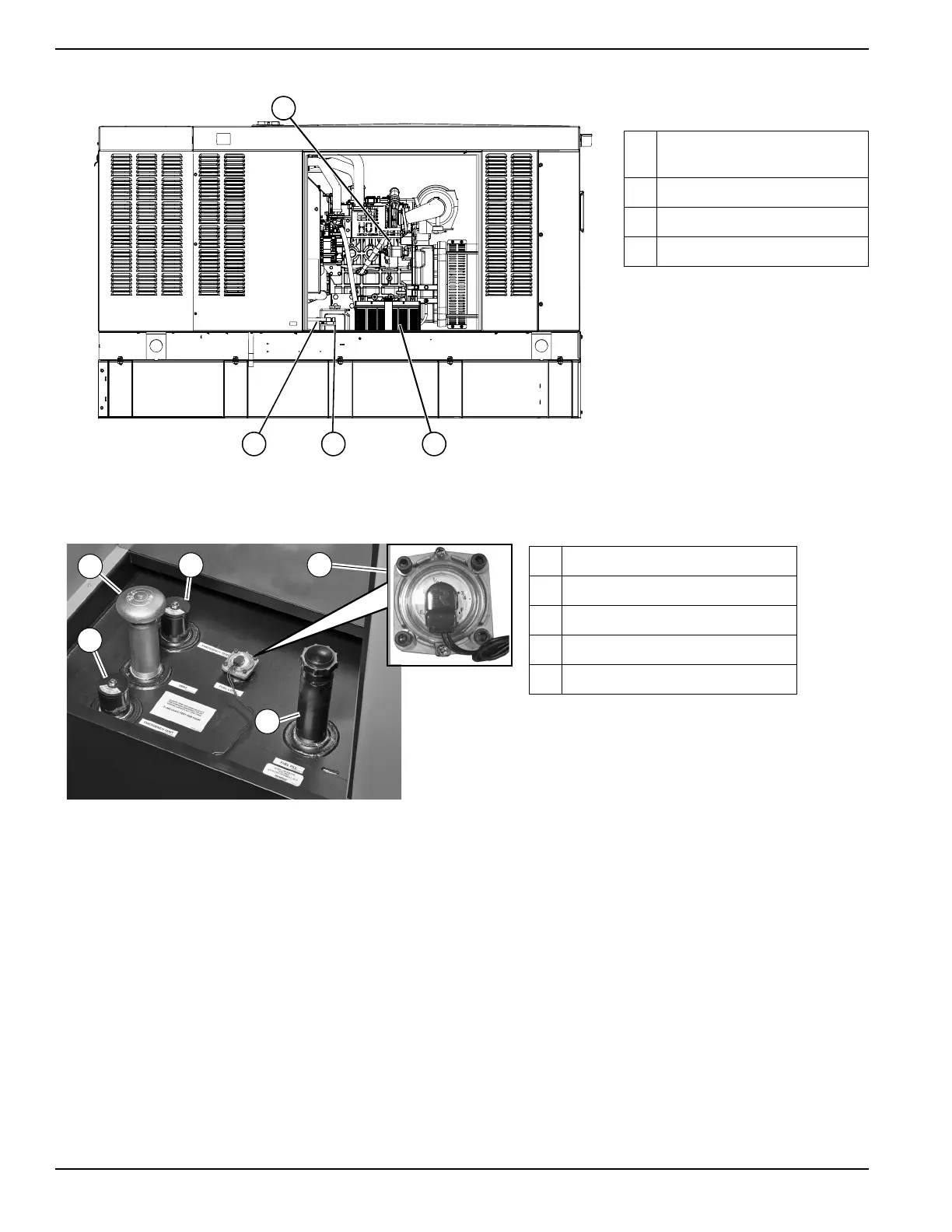

Figure 5-3. Left Side View
Figure 5-4. Front View
A Governor Linkage
(2.5L engines; not shown)
B Battery
C Coolant Drain Hose
D Coolant Overflow Reservoir
B
A
DC
006380
A Fuel Tank (Primary Vent)
B Fuel Filler Spout
C Fuel Level Gauge
D Emergency Vent (Secondary Tank)
E Emergency Vent (Primary Tank)
A
D
E
C
B
006381
