Replace Air Filter Element—2.5L
Engine
1. See Figure 5-14. Remove wing nut (A), flat washer
(B), and lock washer (C) from threaded rod to
release air cleaner cover (D).

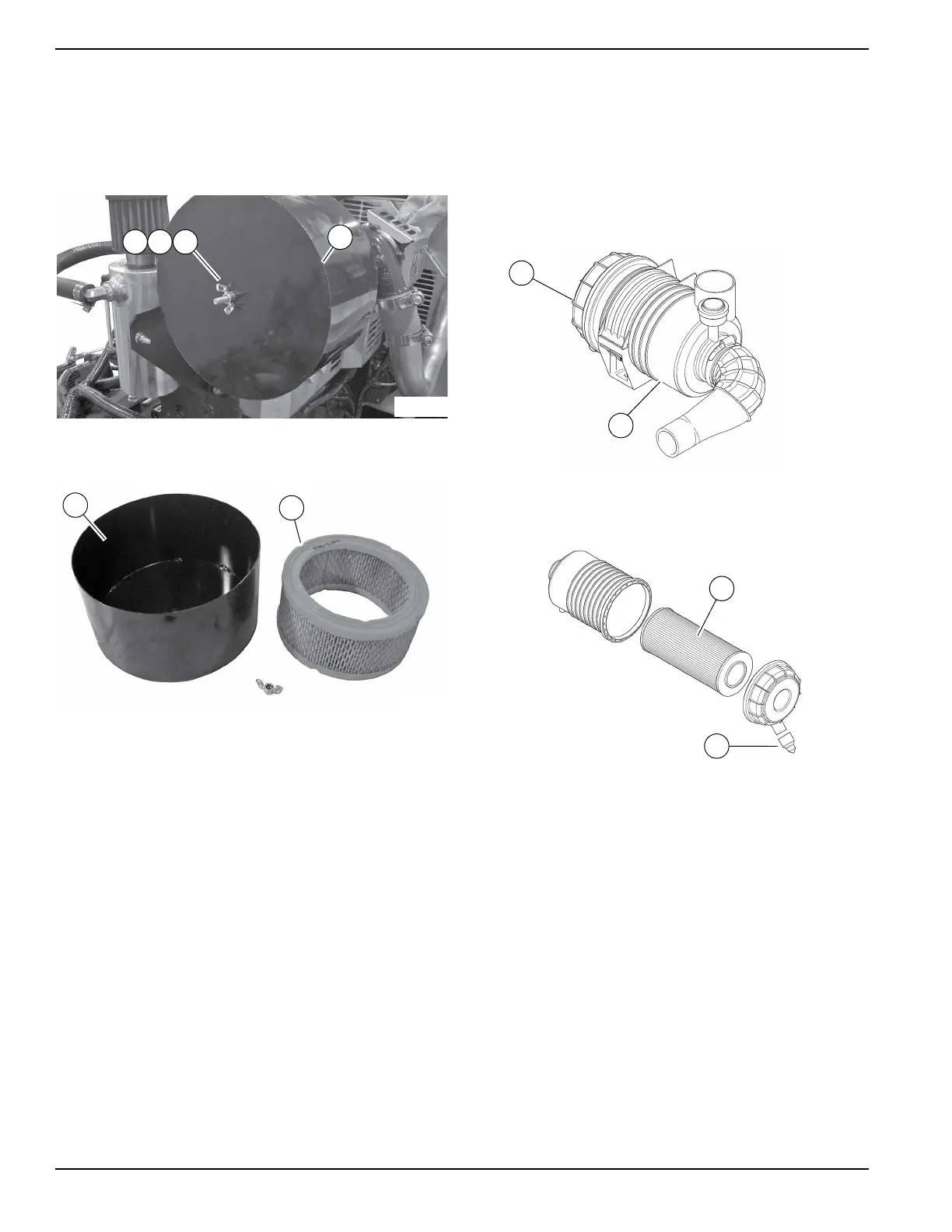

Figure 5-14. Remove Air Cleaner Cover—2.5L Engine
2. See Figure 5-15. Remove air filter element (E) and
discard.
Figure 5-15. Remove Air Cleaner Element—2.5L
Engine
3. Thoroughly clean air cleaner cover (D) of any dust,
dirt, or debris.
4. Place new air filter element against adapter flange.
NOTE: The air filter element is not directional.
5. Install air cleaner cover over threaded rod, followed
by flat washer, lock washer, and wing nut. Tighten
wing nut until snug.
Replace Air Filter Element—2.2L
Engine
NOTE: The 2.2L engine is equipped with an alternate-
style air cleaner.
1. See Figure 5-16. Release three buckle clasps from
end cap (A) of air cleaner canister (B). Remove end
cap.
Figure 5-16. Disassemble Air Cleaner—2.2L Engine
2. See Figure 5-17. Remove air filter element (C) and
discard.
Figure 5-17. Remove Air Cleaner Element—2.2L
Engine
3. Thoroughly clean air cleaner canister, end cap, and
breather (D) of any dust, dirt, or debris.
4. Place new air filter element inside canister.
NOTE: The air filter element is not directional.
5. Install end cap on air cleaner canister and buckle
three clasps.
C
D
BA
006183
E
D
006184
A
B
006185
C
D
006186
