Owner’s Manual for Stationary Diesel Generators 19
Operation
Section 4: Operation
Control Panel
NOTE: The control panel is intended for use by qualified
service personnel only.
The control panel is located behind the viewing window
at the rear of the unit.
IMPORTANT NOTE: With the control pad set to AUTO,
the engine may crank and start at any time without
warning. Such automatic starting occurs during the
programmed exercise cycle or when utility power source
voltage drops below the configured level. To prevent
possible injury that might occur during sudden starts,
always set the control pad to OFF and remove the 7.5
amp fuse before working on or around the generator or
transfer switch. For added security, place a DO NOT
OPERATE tag or placard on both the control panel and
transfer switch.

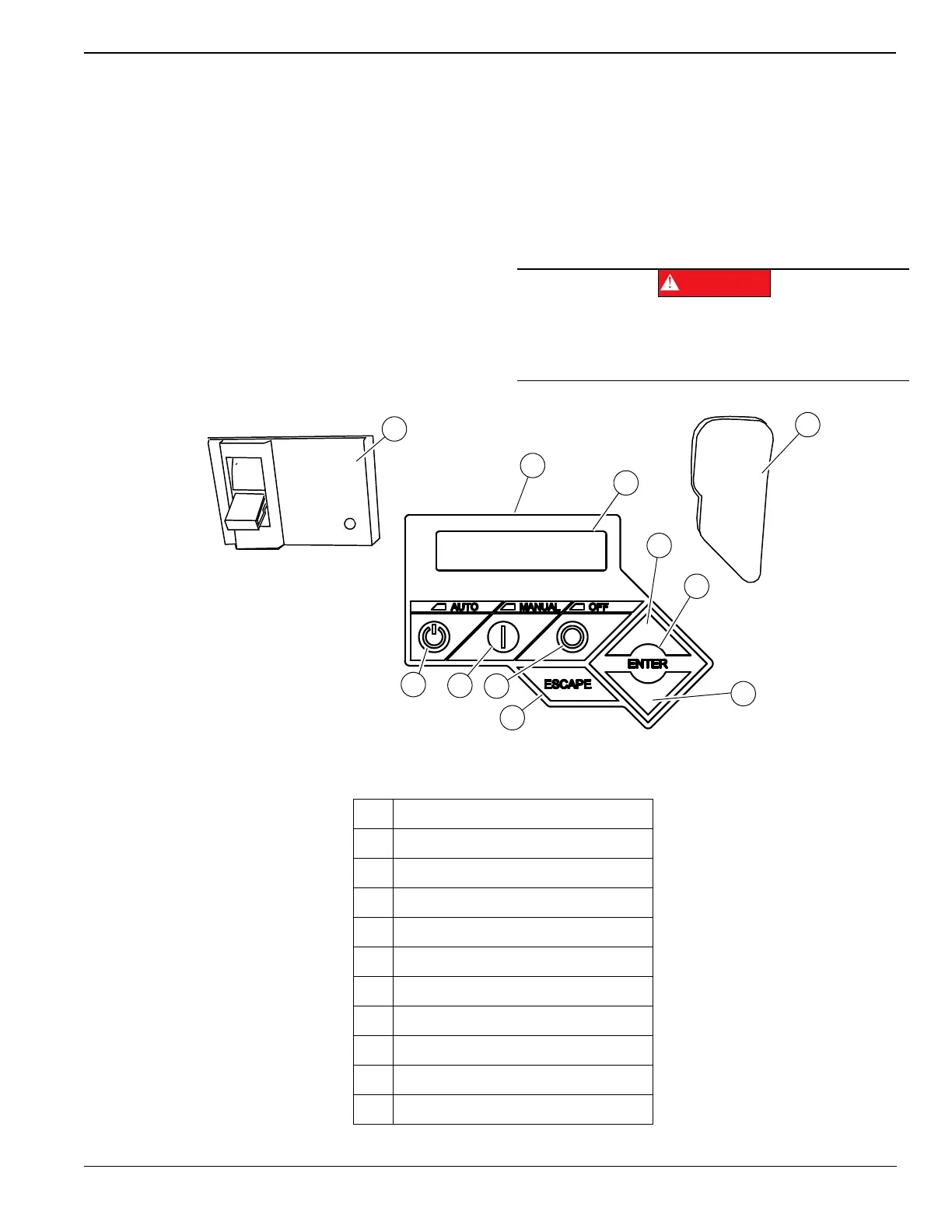

Figure 4-1. Generator Control Panel
Automatic start-up. Disconnect utility power and
render unit inoperable before working on unit.
Failure to do so will result in death or serious injury.
(000191)
DANGER
A 7.5 Amp Fuse and USB Port Cover
B Control pad
C Main Circuit Breaker
D LCD Screen
E Up Arrow (+)
F Enter
G Down Arrow(-)
H Escape
J Off (Red LED)
K Manual (Blue LED)
L Auto (Green LED)
