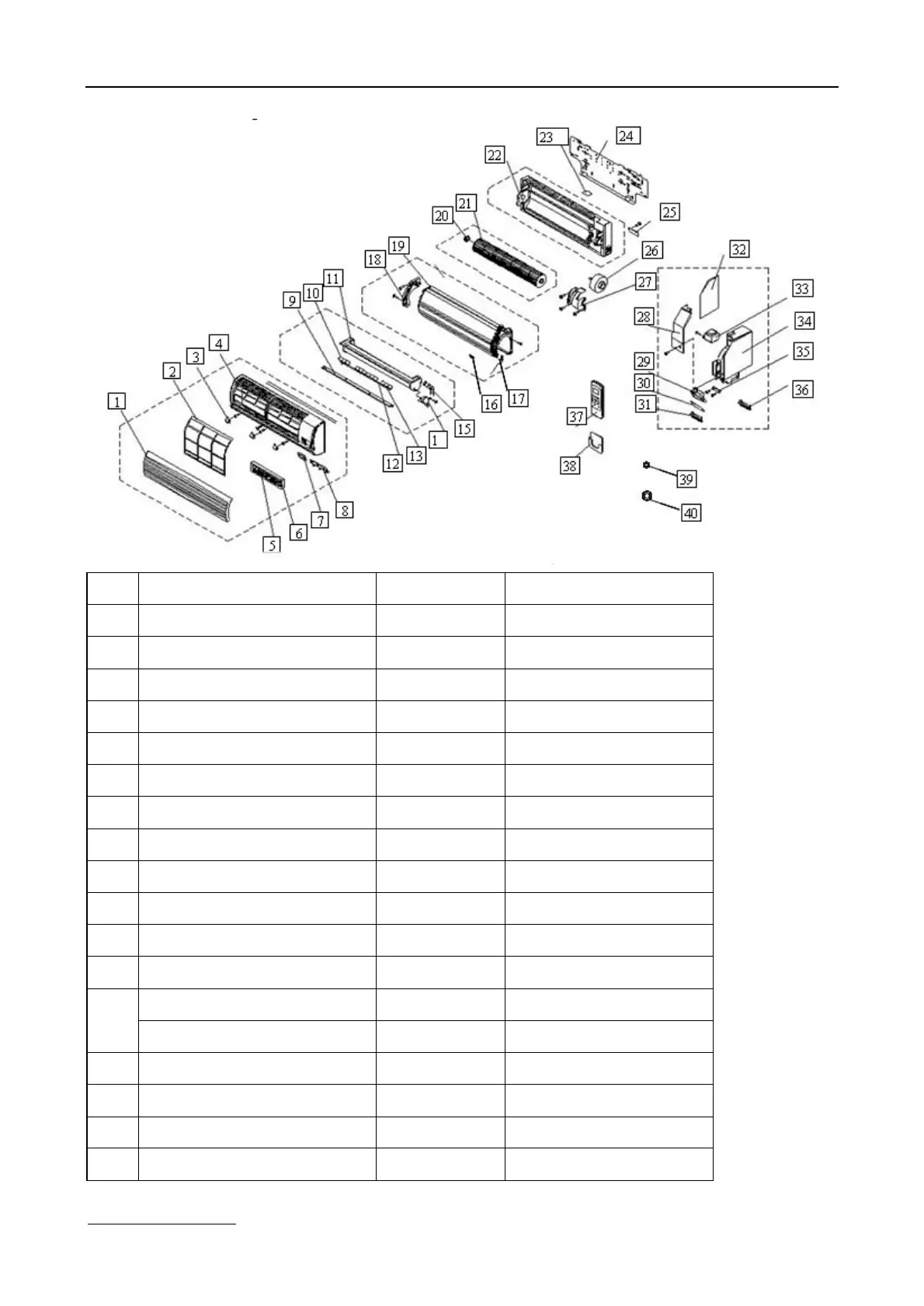

Exploded View Parts for Model : GC-S05CR 220-240V~,50Hz :Indoor unit
No. Part Name Quantity Sale code
1 Front Panel 1 10309121201
2 Air Filter 2 10309121202
3 Screw cap
3
10309121203
4 Panel frame 1 10309121204
5 Air cleaner 1 10109121226
6 Air cleaner holder 1 10109121225
7 Window for receiver 1 10309121207
8 Indicator for LED 1 10309121208
9 Horizontal louver 1 10309121209
10 Vertical louver 12 10309121210
11 Air out frame 1 10309121211
12 Louver holder 1 10309121212
Louver rocker 1 10309121213
13
Rocker gasket 1 10309121214
14 Louver motor 1 10121121218
15 Drain hose 1 10109121215
16 Indoor temp sensor 1 10109121243
17
Evaporator temp sensor 1 10109121242
To Next Page
