www.generalclimate.com 53 Wall-Mounted Split Type
42 Remote controller 1 10109121207
43 Relay 1 10118121238
44 Switch board 1 10109121205
45 Connection pipe for drainage 1 11609121003
46 Sealing ring 1 31009321021
47 Copper nut, TLM-A01 1 10909121012
48 Copper nut, TLM-C03 1 10912121019

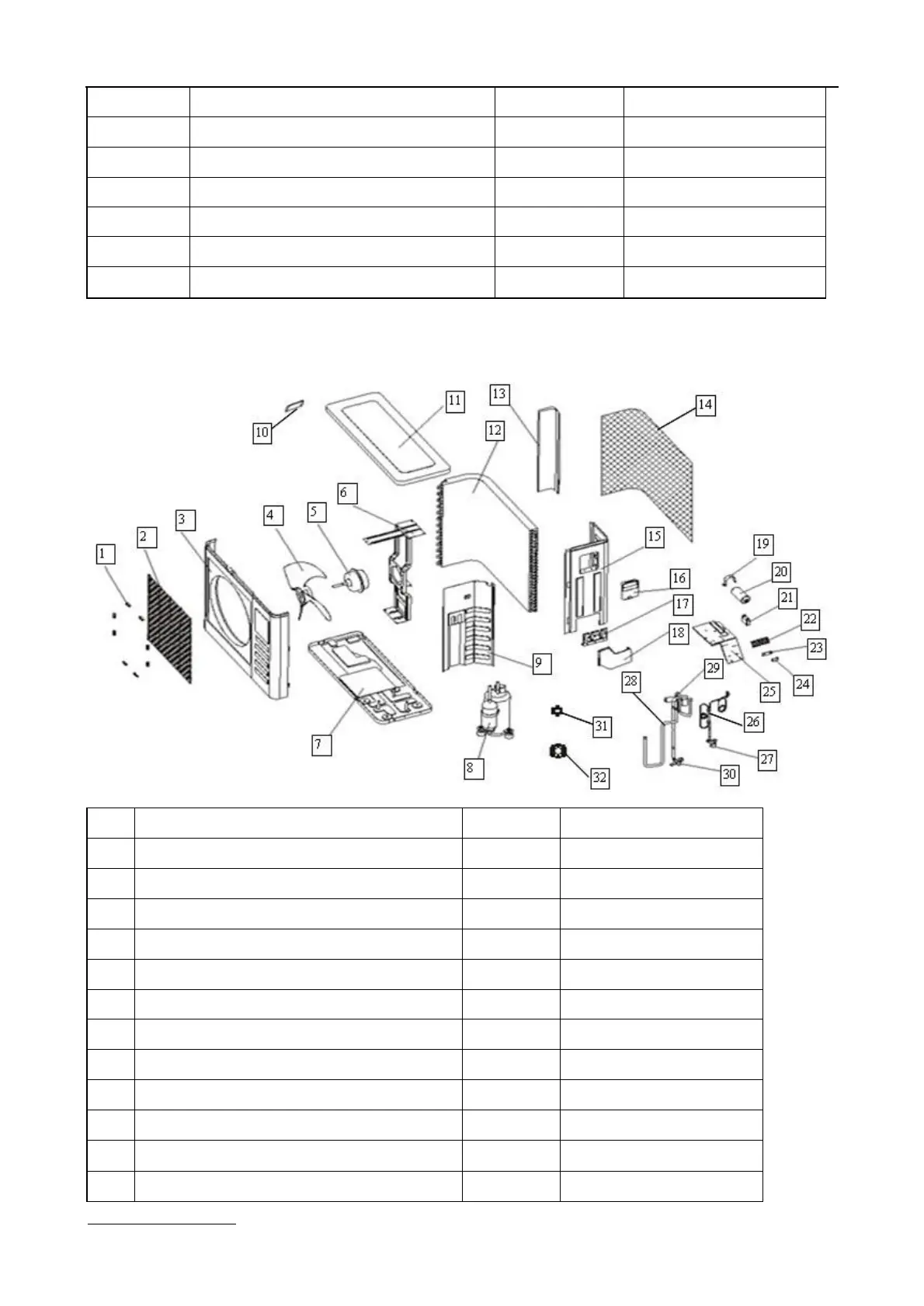

Exploded View Parts for Model GU-S18HR 220-240V~,50Hz : Outdoor Unit
No. Part Name Quantity Sale code
1 Clamp for front net 6 10112121801
2 Front net 1 10109121801
3 Front clapboard
1
13012111801
4 Propeller fan 1 10112121803
5 Fan motor 1 20412111801
6 Holder for fan motor 1 10312121002
7 Chassis 1 10116113806
8 Compressor 1 10116113807
9 Separating board 1 10116113813
10 Small Handle 1 10830121811
11 Cover 1 13012111805
12 Condenser 1 10116123801
