12.4.2 Inspection
Inspect whether the housing groove of clutch is burred or
broken. If it's true, trim it with a rasper. And if it needs a great
deal of trimming, then it should be replaced.
Inspect whether the press plate and central gears are damaged.
If it's true, replacement is necessary.
Measure the free length of the spring.
Allowable limit ：29.0mm。

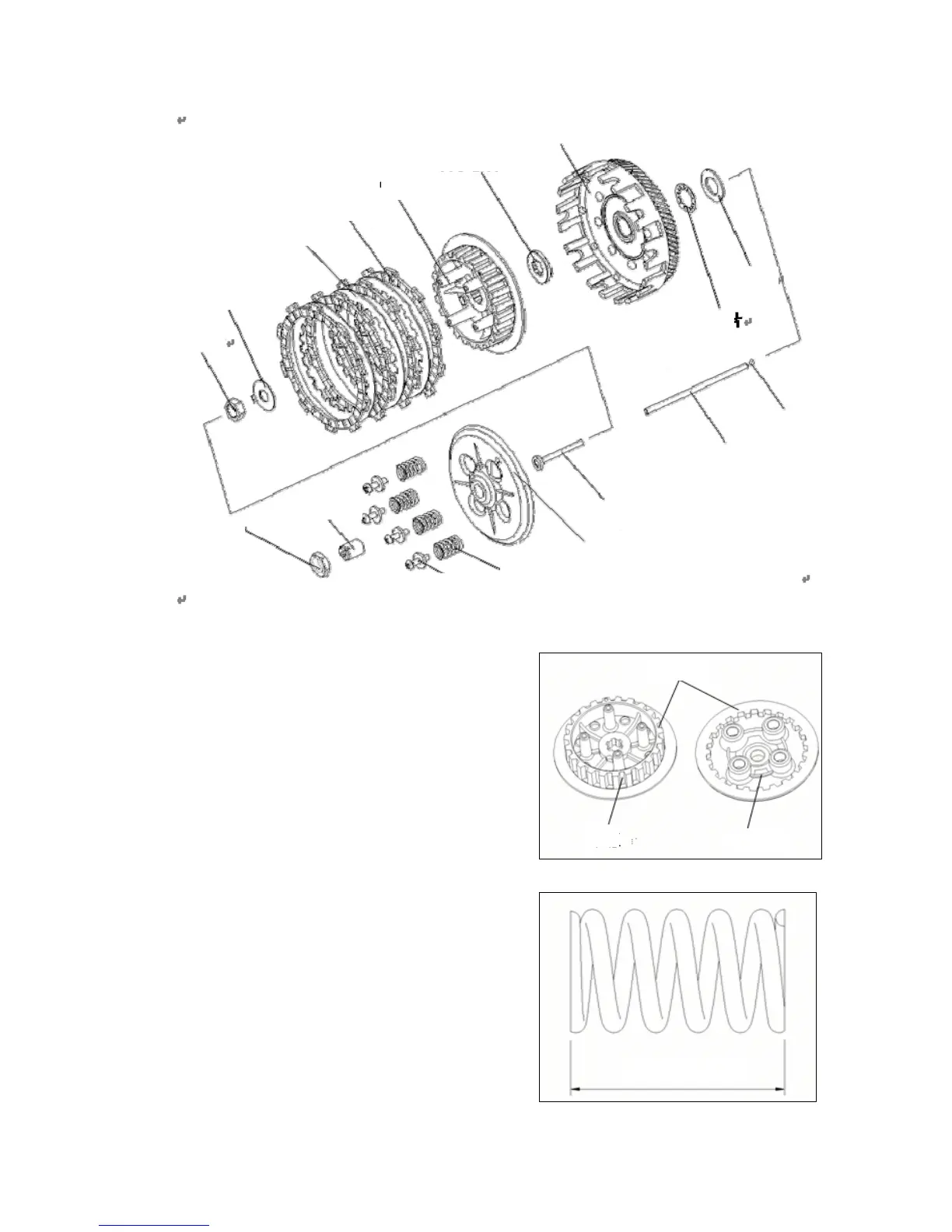

Dismantling
Housing set
internal gear gasket
center
wearing plate
iron friction plate
fixing gasket
Locknut
flat gasket
dish gasket
bearing ball
inward release lever
outward release lever
p
ressure cove
r
p
ressure spring
Bolt and gasket
clamp nut
adjustment bolt
gear shape
centre
p
ress plate
free length
