Generic Trigger SM 50ccm - Rear Wheel

- 49 -
4.3 Rear wheel
4.3.1 Disassembly
Loosen the nuts on rear-wheel spindle.
Remove the nuts on the rear-wheel spindle and the chain.
Unload the rear-wheel spindle.
Unload the rear-wheel.
4.3.2 Inspection
Inspect the run-out of rear wheel.
Allowable limit ：
Vertical direction ：2.0mm or above.
Transverse direction ：2.0mm or above.
When the run-out of rear wheel exceeds the allowable limit,
the bearing of final drive shaft will be loosened, resulting in
bending of bearing shafts. Replace the bearing after
inspection.
4.3.3 Installation
Install the rear wheel in the reverse order of disassembly
and screw the spindle nut.
Locknut of rear-wheel spindle
Torque value ：85-98 N·m

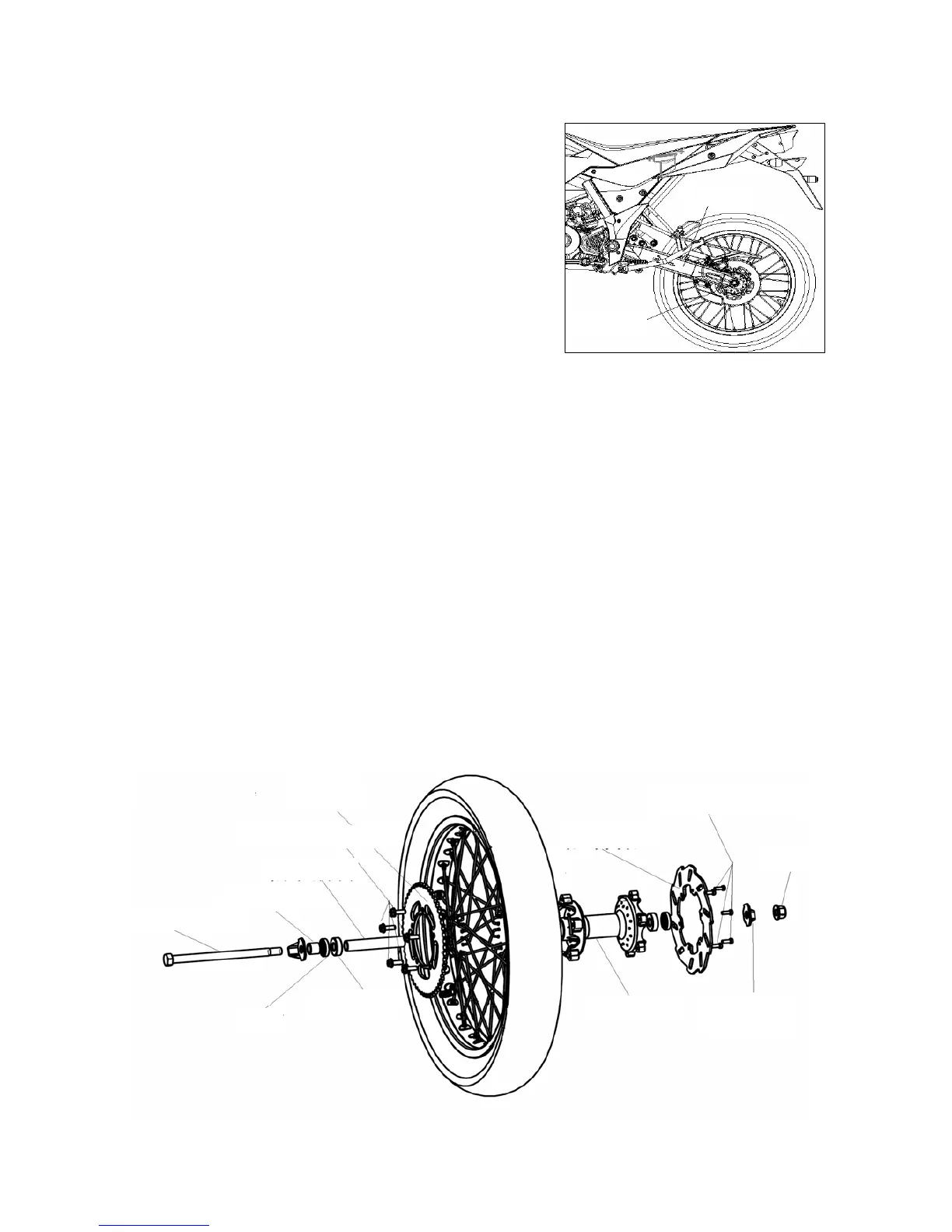

QJ50-23 rear wheel
rear rocker
rea
r
-wheel
spindle
chain wheel
fixing bolt on chain wheel
bearing sleeve
left rear sleeve
rear wheel spindle
oil seal
rolling bearing
rear brake disc
fixing bolt of hydraulic brake
nut
rear wheel hub
p
ress plate of
rear wheel
