- 56 -
5.3 Battery

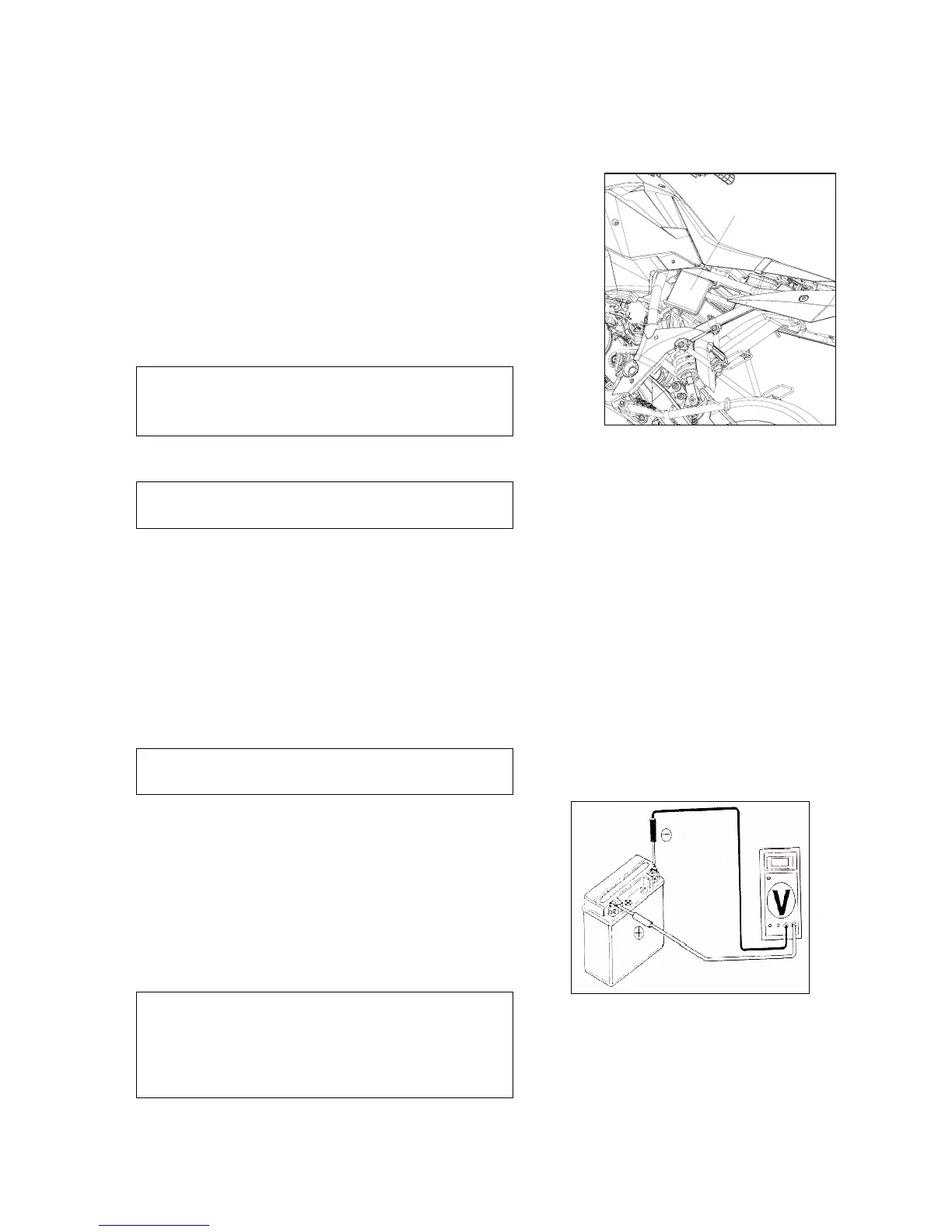

5.3.1 Disassembly of the battery
Unclose the pad.
Disassemble the left guard strip and then the air filter cover.
Disassemble the negative wire and then the positive wire.
Take out the battery.
Warning!
In the disassembly of positive pole the tools mustn't
contact the frame because the short-circuit spark will
ignite gasoline and damage the battery.
Installation is conducted in the reverse order of disassembly.
* Note
In order to prevent short circuit, connect positive pole first
before the negative pole.
Inspect the charging state（open-circuit voltage）.
Unclose the pad.
Unclose the top cap of the air filter and disassemble the
connector wire of the battery.
Measure the voltage between battery terminals. Fully
charged：13.1V
Undercharged ：12.3V （The battery does not work for
an hour）
* Note
Inspection of charging state must be performed with a
voltage meter.
5.3.2 Charge
Connecting method：
Connecting the positive pole of charger and the positive
pole of battery.
Connecting the negative pole of charger and the negative
pole of battery.
Warning！
•Keep the battery away from ignition sources.
•Shut off the charger first once charge is started or
finished so as to prevent explosion hazard caused by
flashes at the interconnecting part.
•Charge operation must follow the marked time on the
battery.
