Generic Trigger SM 50ccm User Manual

- 50 -
QJ50-23A rear wheel
4.4 Rear shock absorber/rear rocker
4.4.1 Disassemble the rear shock absorber
Disassemble the body guard.
Disassemble the rear mudguard.
Disassemble the tool box.
Disassemble the air filter.
Remove the fixing bolts of rear-wheel shock absorber.
Unload the rear shock absorber.
4.4.2 Installation
Install the rear shock absorber.
Specification of the rear shock absorber
Length：418mm
Angle：42°
Compression stroke ：60mm
Outer diameter of spring ：62mm
Torque value ：
Upper fixing bolt ：37-44 N·m
Lower fixing bolt ：37-44 N·m
Install the air filter and tool box.
Install the rear mudguard.
Install the body guard.

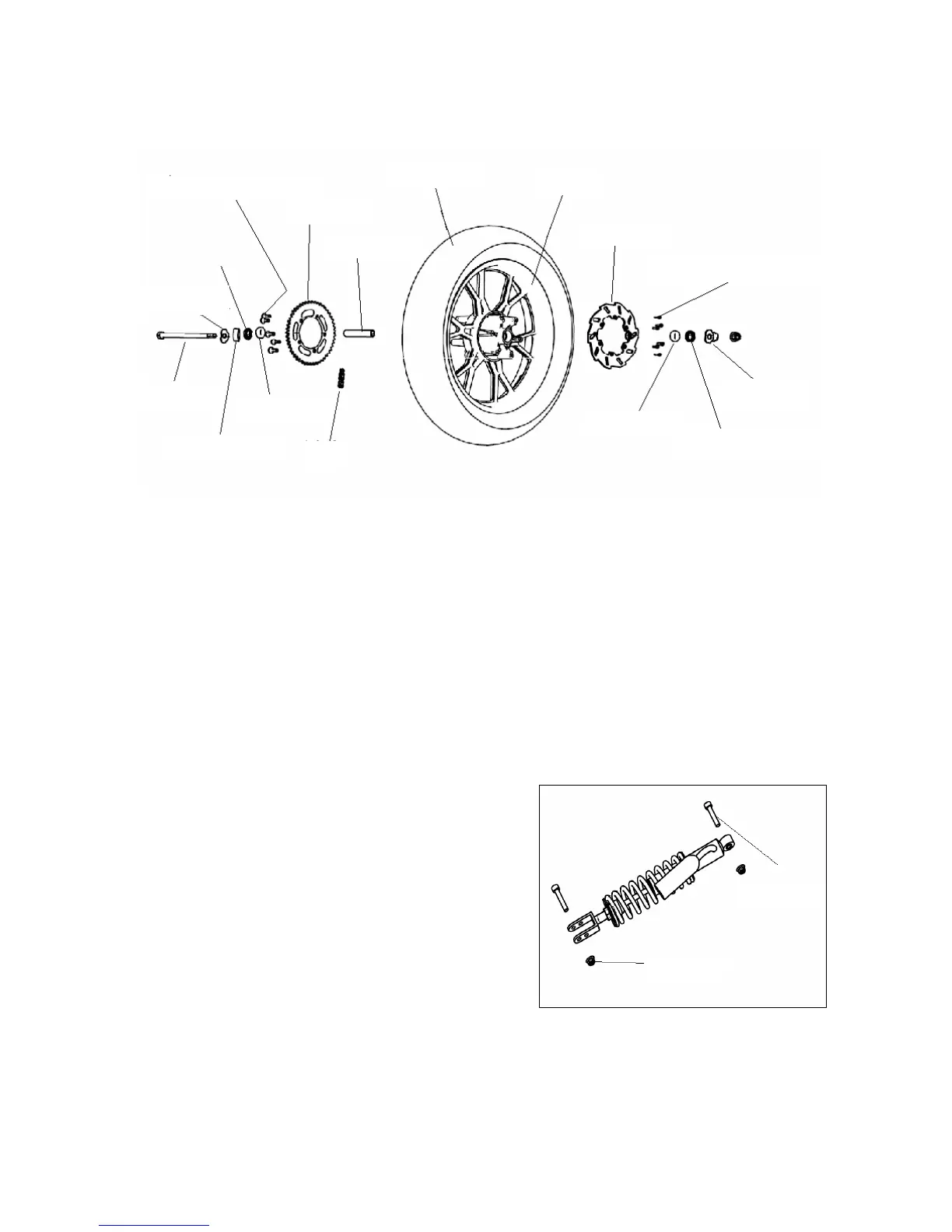

fixing bolt on chain wheel
p
ress plate of
rear wheel
chain wheel
bearing sleeve
vacuum tyre
rear rim
rear brake disc
fixing bolt of hydraulic brake
rolling bearing
rolling bearing
oil seal of front wheel
p
ress plate of
rear wheel
rear wheel spindle
left rear sleeve
chain
fixing bolt
fixing nut
