- 93 -
Scrape the adhesive gasket off the crankcase.
Note：
No foreign objects should fall into the crankcase.

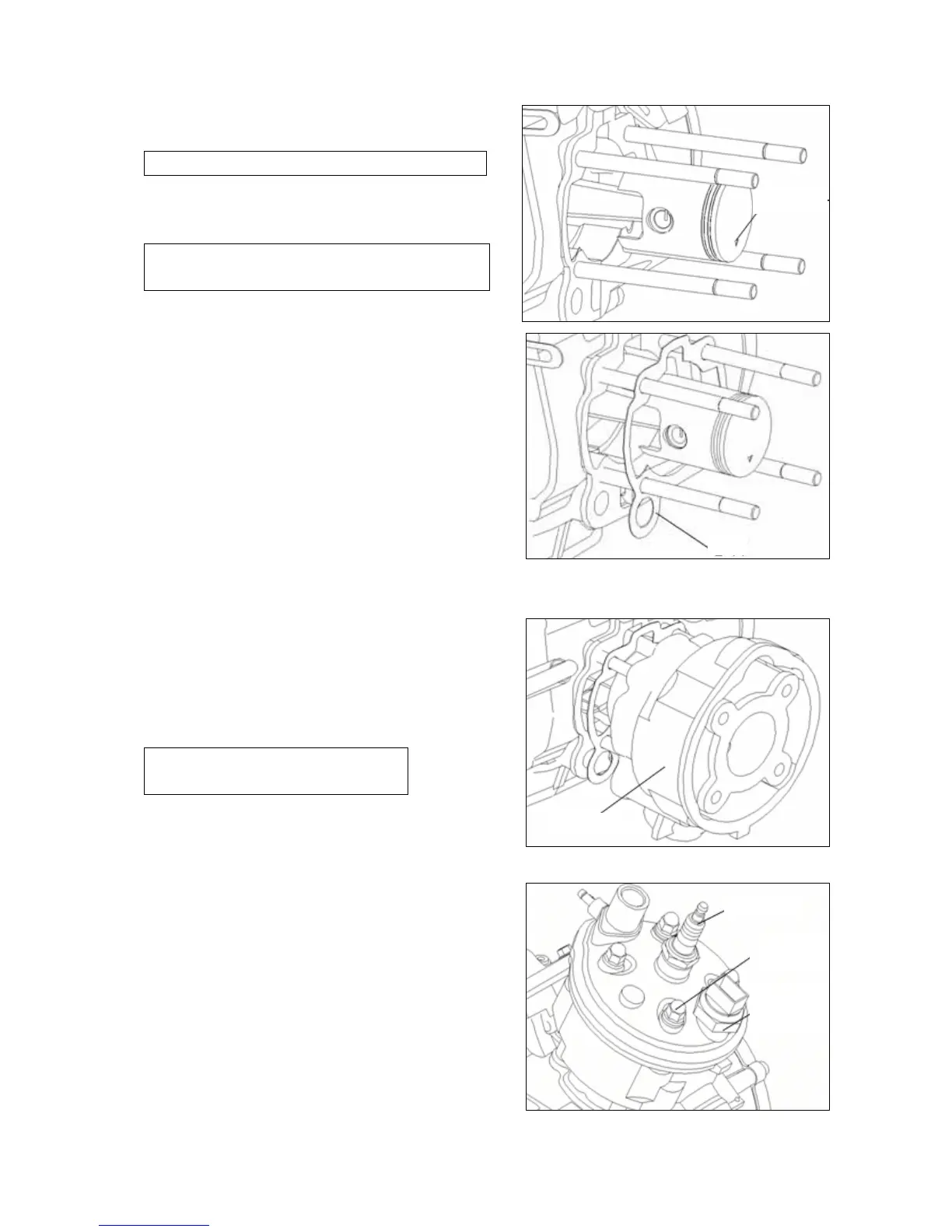

Install the piston, piston ring and retaining ring.
Note：
Install according to the arrow mark on the piston top.
The retaining ring should not fall into the crankcase.
11.5 Installation of the air cylinder
Install the gasket on the crankcase.
Evenly spread machine oil on cylinder inner wall,
piston and piston ring.
Take care to install the piston ring in the cylinder.
Note：
The
piston ring should not be
damaged.
11.6 Disassembly of cylinder cover
11.6.1 Disassembly
Disassemble the spark plug and unscrew the temperature
controller.
Unscrew the four nuts and unload the cylinder cover.
arrow mark
gasket
cylinder
spark plug
temperature
controller
fixing bolt
