Measure the thickness of the wearing plate with a vernier caliper.
Allowable limit ：2.6mm。
12.5 Actuating lever
12.5.1 Disassembly
After unclosing the right cover, unload the actuating lever set.
12.5.2 Dismantling
12.5.3 Inspection
Inspect the elasticity of the return spring and ratchet spring and if there is damage, replace them.
Inspect the mesh between the spline and return spring holder and ratchet. If the mesh is relaxed, replacement is
necessary.
12.5.4 Assembly
Assembly is conducted in the reverse order of dismantling and disassembly.

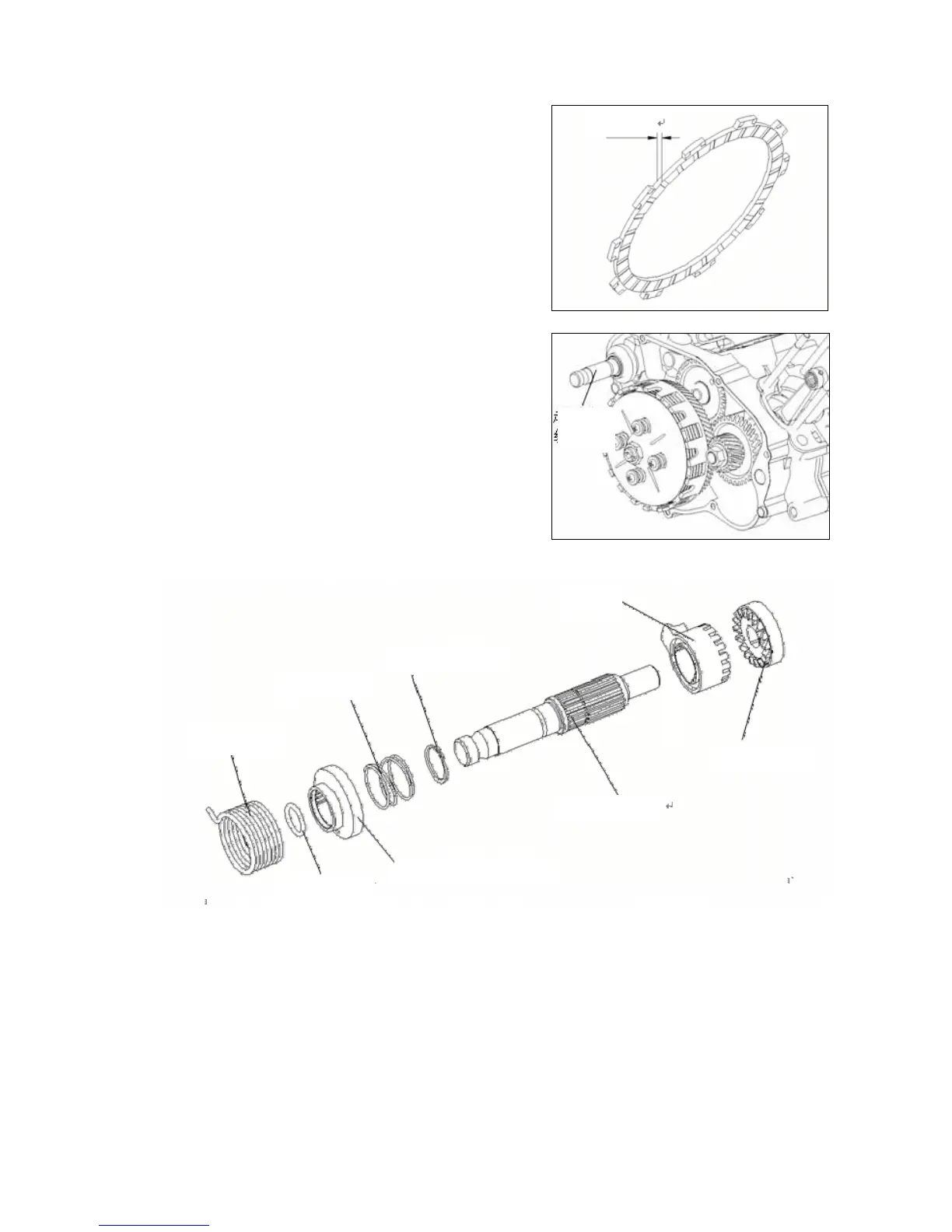

thickthick
actuating
lever set
ratchet
elastic collar
ratchet spring
return spring
O-shape ring
return spring holder
actuating shaft
actuating gear
