Generic Trigger SM 50ccm - Main Shaft and Sub Shaft

- 107 -

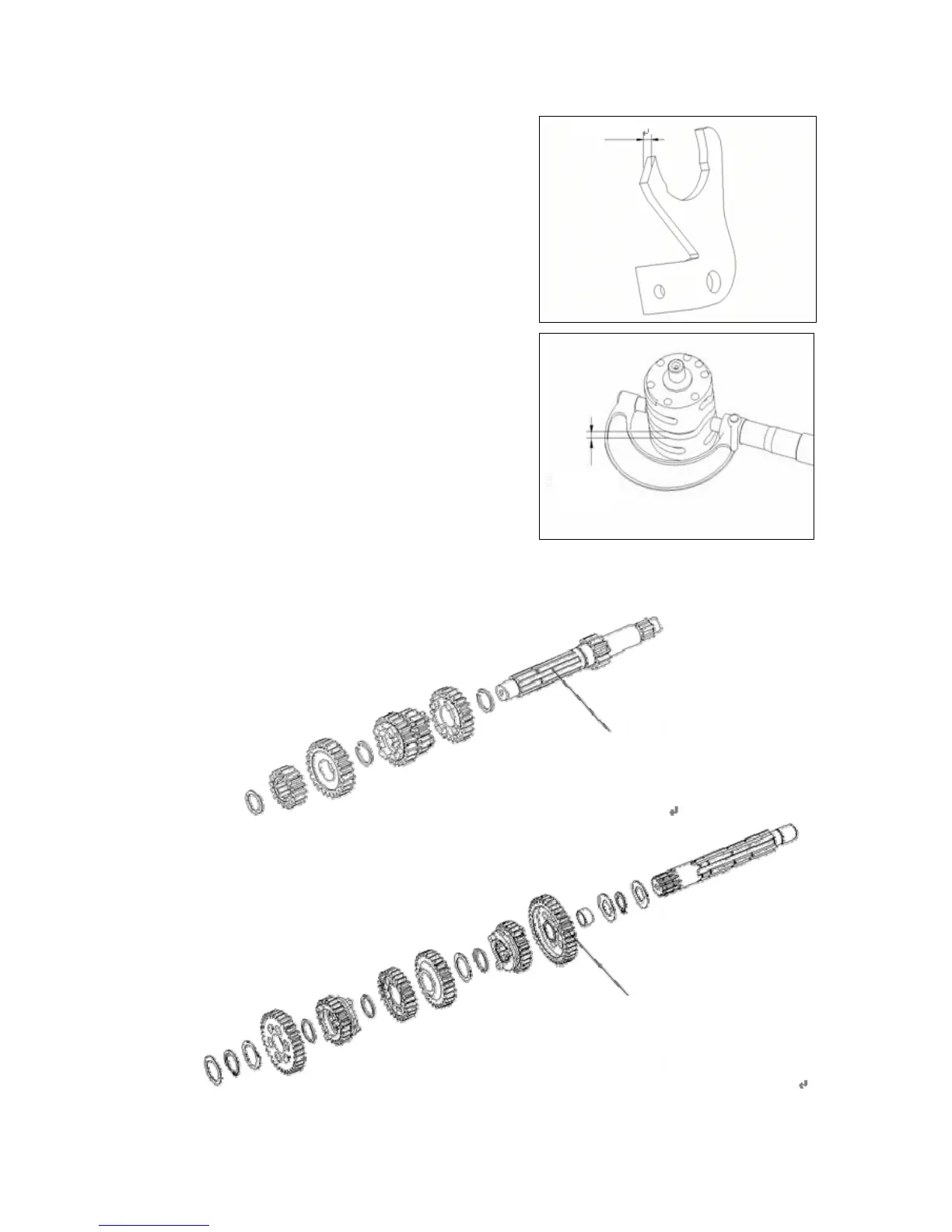

Measure the thickness of the shift fork.
Allowable limit ：3.90mm。
Measure the outer diameter of the shift drum.
Allowable limit ：41.75mm。
Measure the cotterway width of the shift drum.
Allowable limit ：6.3mm。
13. 5 Main shaft and sub shaft
13.5.1 Dismantling
sub shaft set
main shaft set
cotterway
width
thickness
