Generic Trigger SM 50ccm User Manual

- 105 -

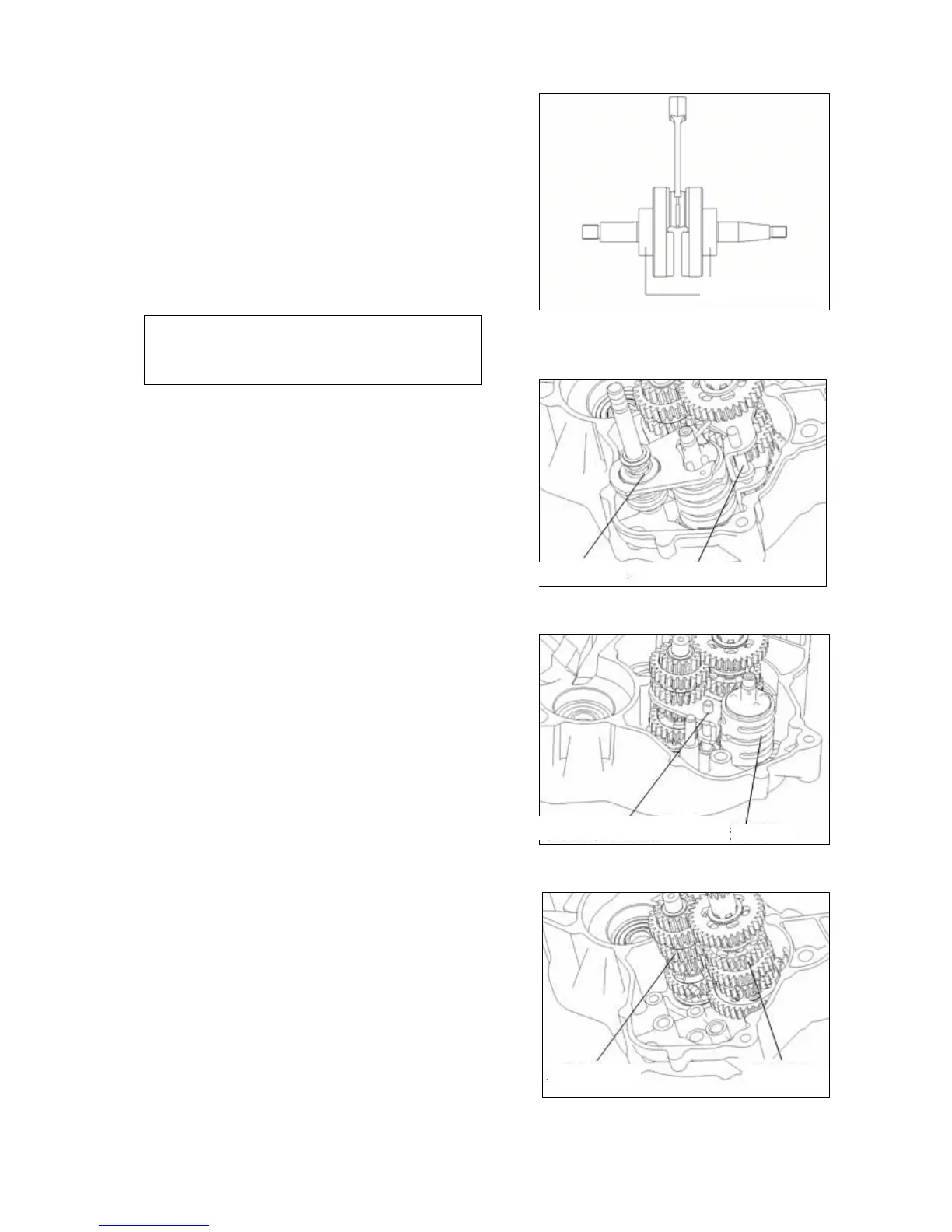

Inspect whether there are strange noises or loosening in
rotation of the crank shaft bearing.
If there is strange noises or loosening，replace the crankshaft
set.
Note：
13.3 Shift chamber
13.3.1Disassembly
Carry the shift shaft set.
Unload the shift fork shaft of the accessory shaft and the right
and left shift forks.
Unload the middle shift fork shaft and middle shift fork.
Unload the shift drum.
Unload the positioning set（located under the shift drum）.
Unload the main shaft set.
Unload the sub shaft set.
t
Install the crankshaft connecting rod assembly on
the crankcase along with the gear change
mechanism.
main shaft set
sub shaft set
crank shaft bearing
shift shaft set sub fork shaft and shift fork
middle fork shaft and shift fork
shift dru
m
