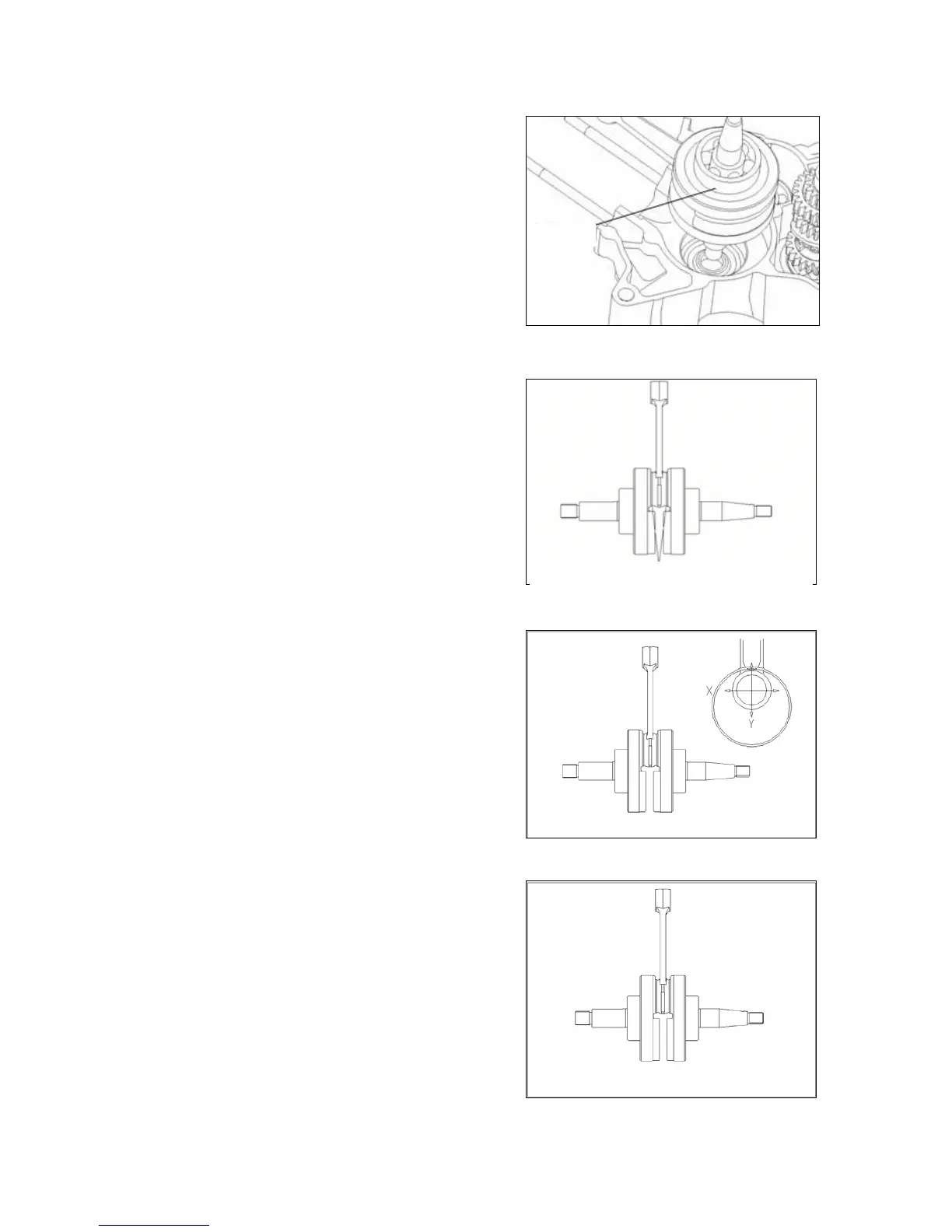

Remove the crankshaft off the crankcase.

Scrape away the adhesive gasket on the joint face of the

crankcase.

Note：The joint face of the crankcase should not be

damaged.

13.2.2 Inspection

Clearance measurement of connecting rod big end in right

and left direction

Allowable limit ：0.55mm.

Clearance measurement of connecting rod big end in X and

Y direction

Allowable limit ：0.05mm。

Measure the vibration of crankshaft.

Allowable limit ：0.1mm。

measuring position of connecting rod big end

crankshaft
