Generic Trigger SM 50ccm User Manual

- 111 -

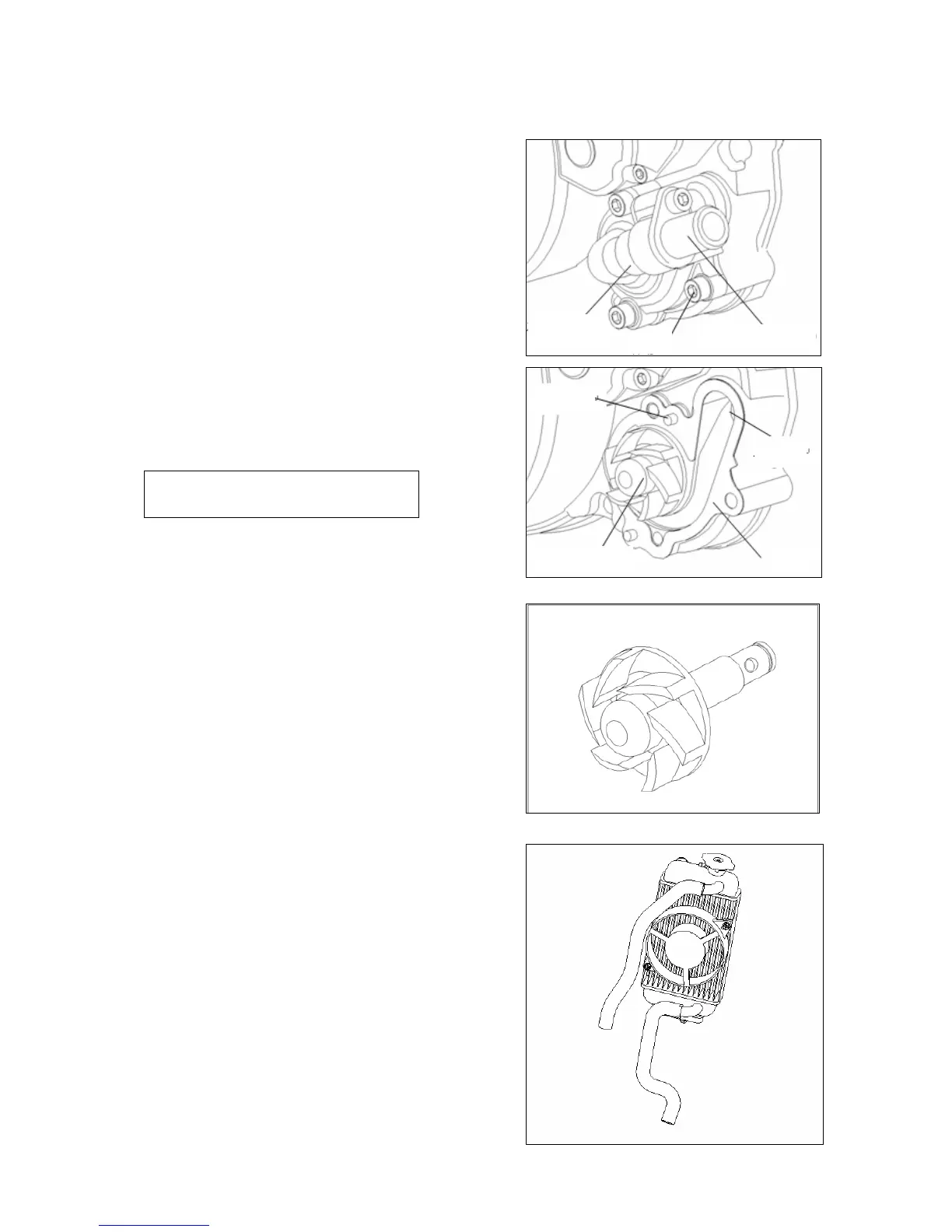

Unscrew the bolts and unload the water pump cover
(together with the outlet pipe holder).
Unload the gasket and guide pin.
Unload the water pump impellers.
Note：
Gasket and joint face of case body should
not be damaged in operation.
14.3.1.2 Inspection
Inspect the wear and tear of the impeller set.
Severe wear and replace it.
14.3.1.3 Installation
Assembly is conducted in the reverse order of disassembly.
14.3.2 Disassembly and installation of
the water tank
Unscrew the setscrews of water tank and unload it.
Dismantle the power line of the cooling fan.
Dismantle pipes to the water tank.
Dismantle the water tank.
water pump
covear
outlet pipe holder
bolt
guide pin
inlet
gasket
p
ump impellers
