- 26 -

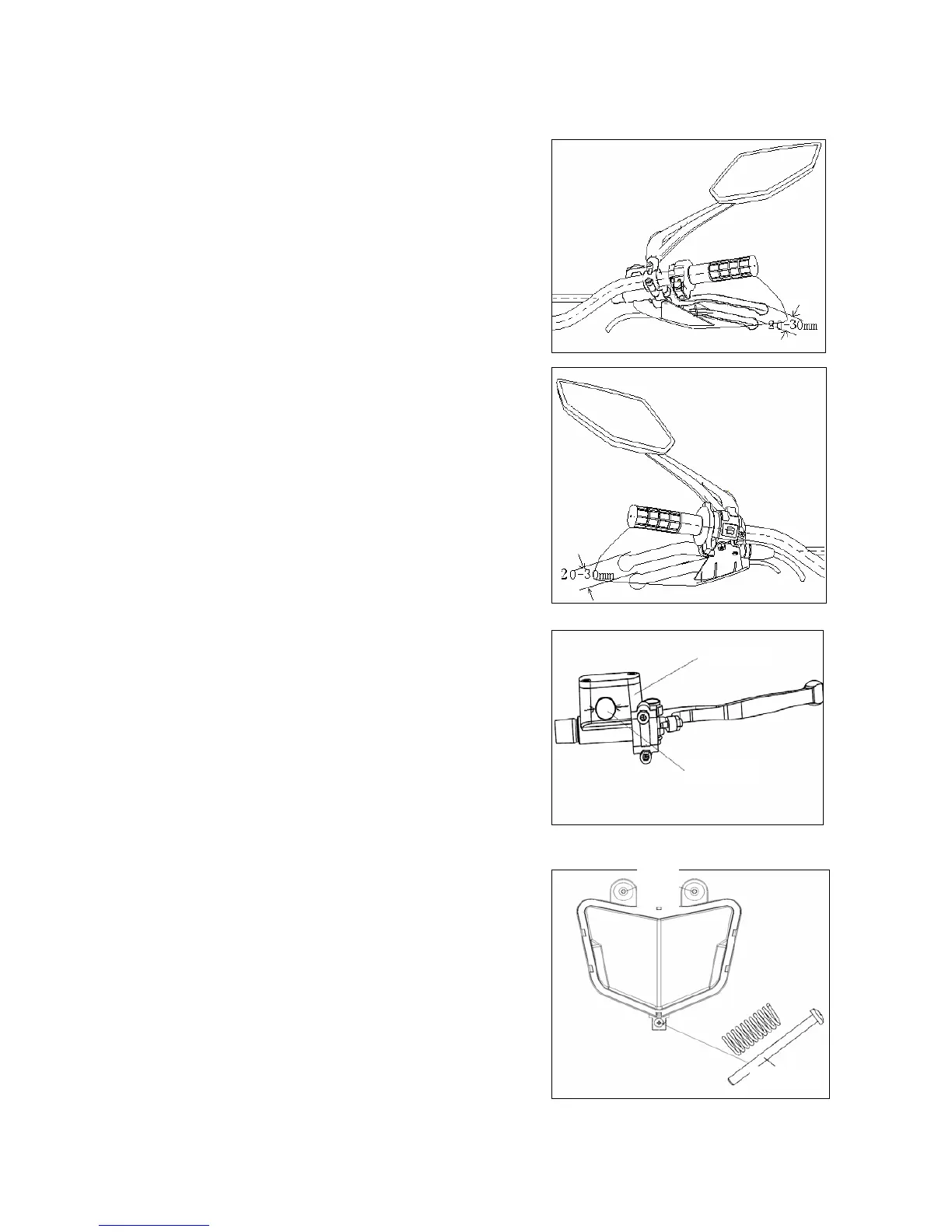

Clearance of front/rear brake
Front brake clearance
Measure the clearance of the front brake drawbar at the top
point of brake drawbar.
Clearance：20-30mm
Rear brake clearance
Measure the clearance of the rear brake drawbar at the top
point of brake drawbar.
Clearance：20-30mm
Abrasion of front brake shoe
Check the oil level via oil immersion lens when the brake is
down to bottom, if the liquid level of brake fluid is against
the arrow in the figure, please replace the brake shoe.
Head lighting
Adjustment
The optical axis adjustment of head lighting is done by
turning after unscrew the rotation adjustable bolt of head
lighting.
Clutch
Start engine and increase the winding number slowly to
inspect the actuation of clutch and check the clutch block if
the motorcycle does not move or the engine misses.
Replace the new part if necessary.
oil pump
oil lens
installatio
n position
of
fastening
bolt
adjustable bolt
