- 60 -

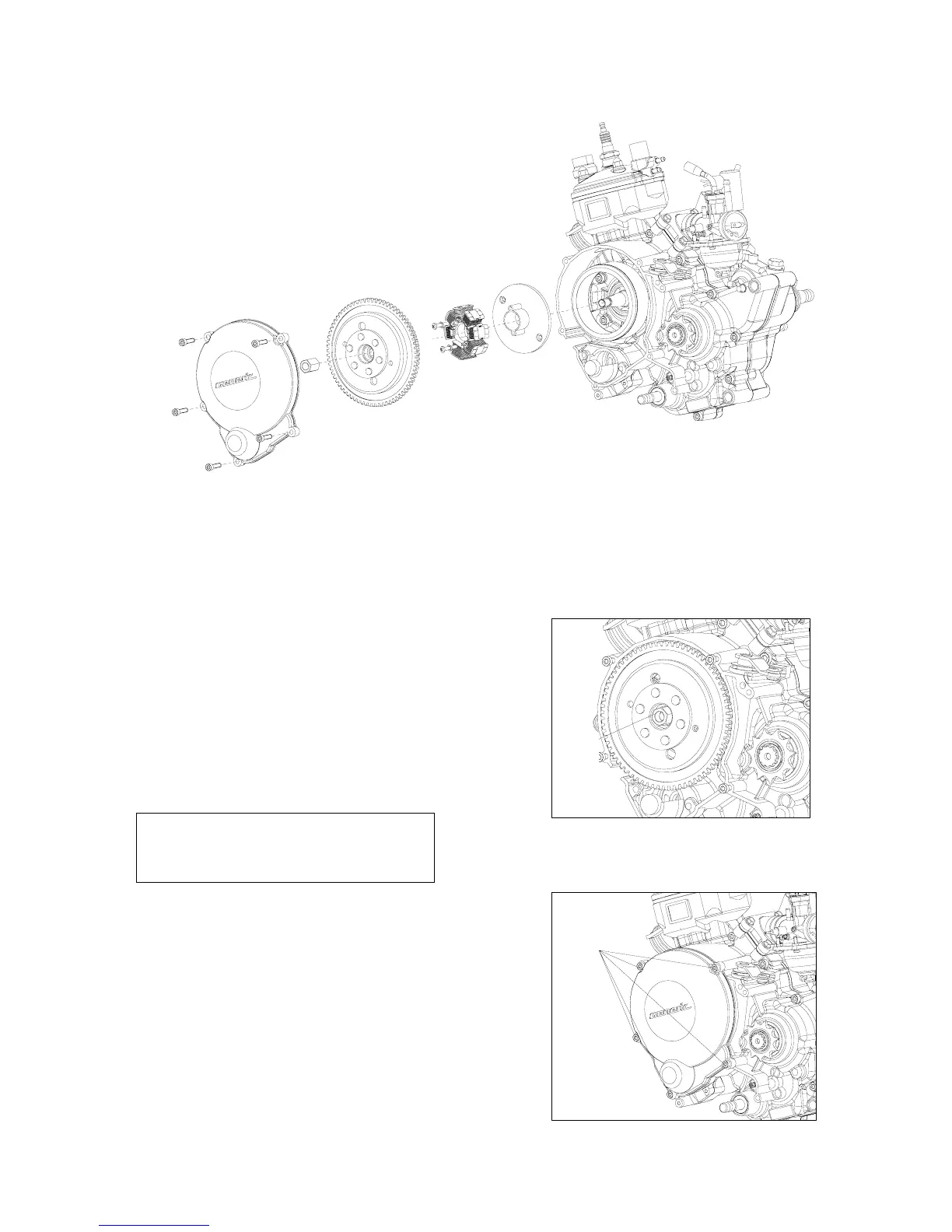

5.8.2 Installation
Install the alternator stator to the engine case.
Connect the lead connector of the alternator.
Clean the tapered part of the crankshaft and flywheel.
Install the retaining key of flywheel in the key groove on
the crankshaft and confirm.
Align the flywheel groove with the retaining key of the
shaft.
*Note
Confirm no bolts are on the inner face of the
flywheel because of magnetism of the inner
face.
Fix the flywheel with a multiple use fixing spanner and
screw the fixing nut.
Torque value ：9.0 N·m
Install the left body guard.
螺栓
固定
螺母
Fixing
nut
bolt
